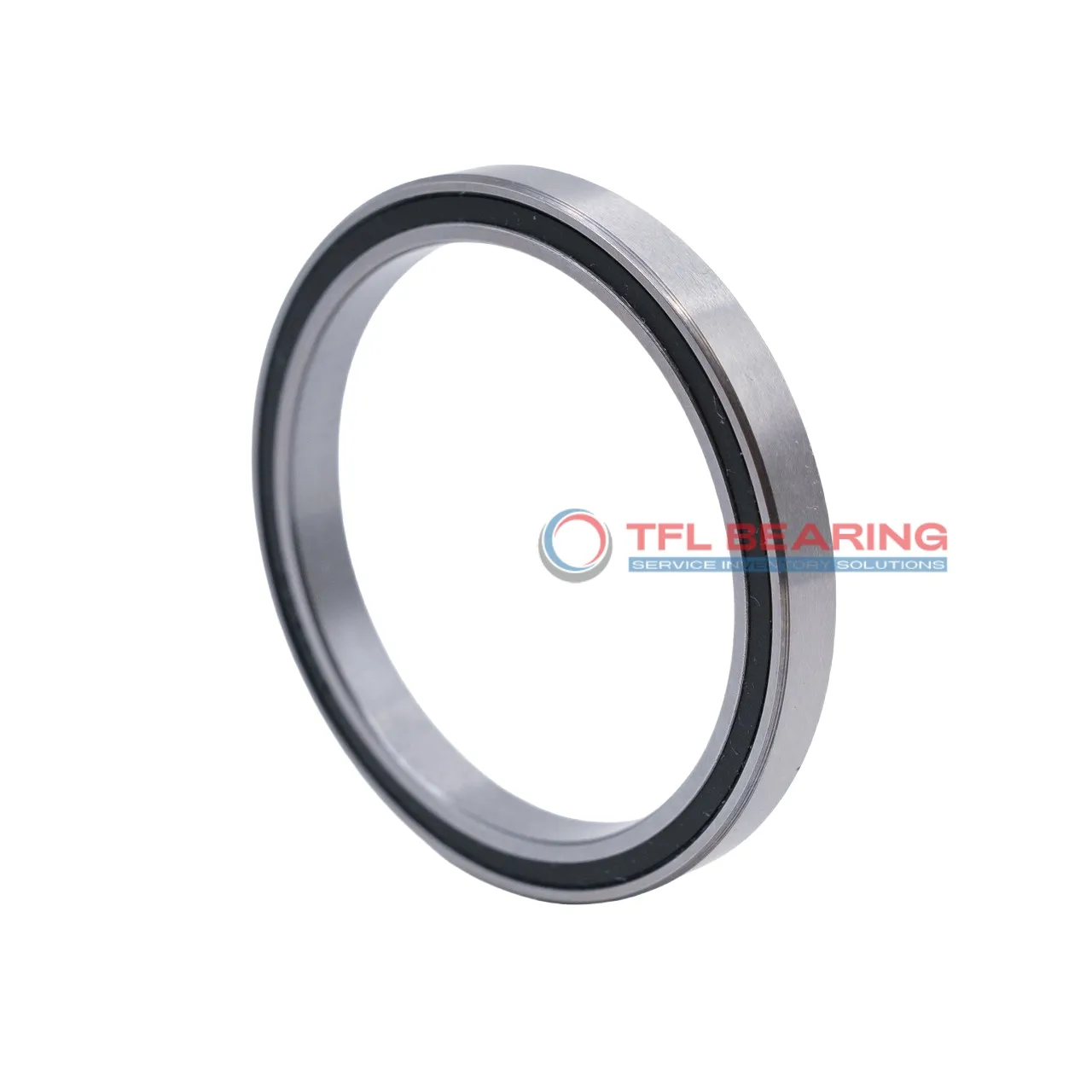

Constant Section (CS) Bearings WA025XP0

Constant Section (CS) Bearings WA025XP0

Performance Features of WA025XP0 Bearing

WA025XP0 Bearing is constructed with stainless steel rings and balls, offering excellent resistance to corrosion.
Its dynamic radial load capacity of 583 lbf ensures reliable performance in various applications.

The sealed design of WA025XP0 Bearing keeps contaminants out, extending its service life.
With a width of just 0.25″, it fits perfectly in compact spaces without compromising strength.

WA025XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class provides consistent precision for demanding tasks.

The stainless steel cage maintains ball alignment, reducing wear and enhancing durability.
This makes WA025XP0 Bearing a dependable choice for both radial and thrust loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WA025XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2.5"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 3"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series WA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.648"
  • Internal Diameter On Outer Ring (Small Side Face) 2.856"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 583 lbf
  • Static Radial Load 830 lbf
  • Static Thrust Load 2090 lbf
  • Static Moment 1150 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 601 lbf
  • Dynamic Thrust Load 910 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.12 lbs
  • price（$） 225
Constant Section (CS) Bearings WA025XP0 dimension drawing
Download DWG Download PDF

Features

Industrial Uses of WA025XP0 Bearing
WA025XP0 Bearing is commonly used in robotics, where its slim design fits into tight spaces without compromising load capacity. The stainless steel construction ensures longevity even in high-movement applications like robotic arms.

Where Is WA025XP0 Bearing Used?
You’ll find WA025XP0 Bearing in medical imaging devices, where its precision and sealed design prevent contamination. Its ABEC-1 tolerance makes it reliable for sensitive equipment requiring smooth rotation.

Built for Heavy-Duty Use: WA025XP0 Bearing
WA025XP0 Bearing handles moment loads well, making it suitable for industrial turntables and rotating platforms. The four-point contact design distributes forces evenly, reducing wear over time.

Automotive vs Aerospace: Applications of WA025XP0 Bearing
In automotive steering systems, WA025XP0 Bearing provides smooth rotation for compact assemblies. For aerospace, its lightweight design and stainless steel materials meet strict durability requirements.

Perfect Fit for Automation: WA025XP0 Bearing
WA025XP0 Bearing works seamlessly in conveyor systems, where its thin section saves space while maintaining performance. The sealed design also keeps out dust in factory environments.

Application

Industrial Uses of WA025XP0 Bearing
WA025XP0 Bearing is commonly used in robotics, where its slim design fits into tight spaces without compromising load capacity. The stainless steel construction ensures longevity even in high-movement applications like robotic arms.

Where Is WA025XP0 Bearing Used?
You’ll find WA025XP0 Bearing in medical imaging devices, where its precision and sealed design prevent contamination. Its ABEC-1 tolerance makes it reliable for sensitive equipment requiring smooth rotation.

Built for Heavy-Duty Use: WA025XP0 Bearing
WA025XP0 Bearing handles moment loads well, making it suitable for industrial turntables and rotating platforms. The four-point contact design distributes forces evenly, reducing wear over time.

Automotive vs Aerospace: Applications of WA025XP0 Bearing
In automotive steering systems, WA025XP0 Bearing provides smooth rotation for compact assemblies. For aerospace, its lightweight design and stainless steel materials meet strict durability requirements.

Perfect Fit for Automation: WA025XP0 Bearing
WA025XP0 Bearing works seamlessly in conveyor systems, where its thin section saves space while maintaining performance. The sealed design also keeps out dust in factory environments.
