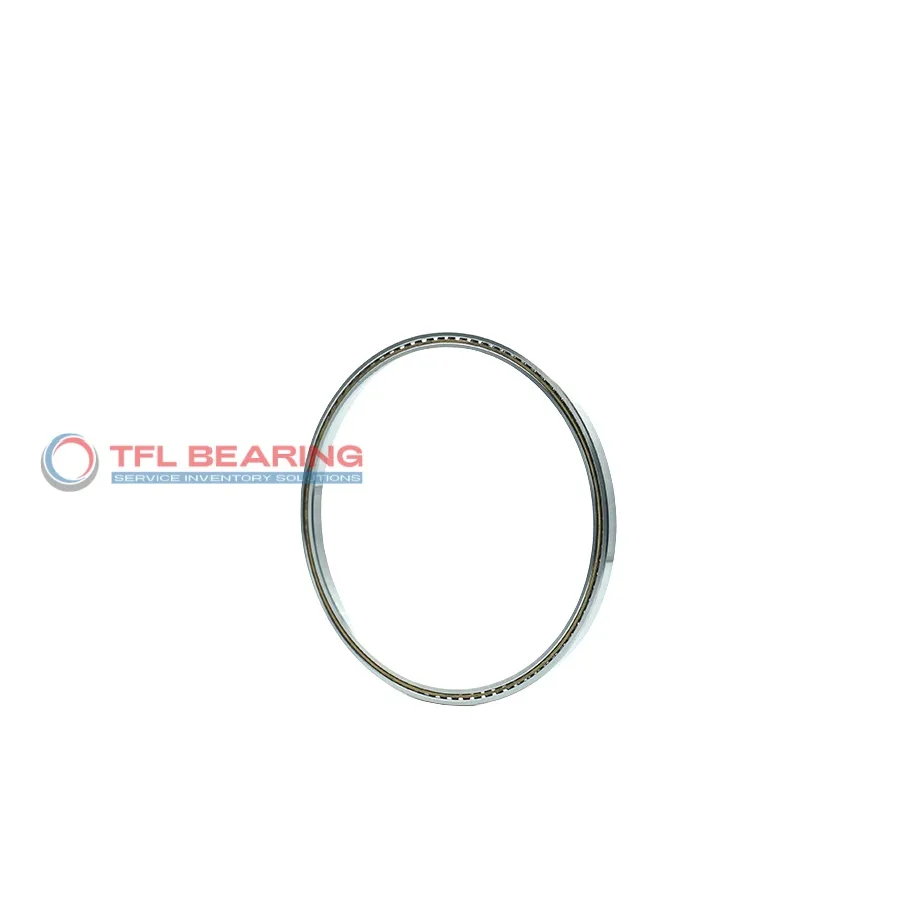

Constant Section (CS) Bearings SG110XP0

Constant Section (CS) Bearings SG110XP0

The SG110XP0 is a slim stainless steel bearing with an 11″ bore and 13″ outer diameter, designed for four-point contact loads. Its compact 1″ width makes it ideal for space-saving applications, while the brass cage ensures smooth operation.

This bearing handles dynamic radial loads up to 12739 lbf and static thrust loads up to 49250 lbf, suitable for moderate-speed rotations. The stainless steel construction offers good corrosion resistance and works in temperatures from -30°C to 110°C.

Its open design allows easy lubrication, extending service life. The ABEC-1 tolerance ensures reliable performance without excessive precision requirements.

Interchangeable with KAYDON bearings, it’s a practical choice for replacements in machinery or robotics. Weighing 8.6 lbs, it balances strength and lightness for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SG110XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 11"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 13"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 11.742"
  • Internal Diameter On Outer Ring (Small Side Face) 12.258"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 12739 lbf
  • Static Radial Load 19700 lbf
  • Static Thrust Load 49250 lbf
  • Static Moment 118200 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 57 lbf
  • Dynamic Thrust Load 20180 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 8.6 lbs
  • price（$） 573.94
Constant Section (CS) Bearings SG110XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SG110XP0 Bearing

SG110XP0 Bearing is constructed with stainless steel rings and balls, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 12739 lbf, making it suitable for demanding applications.
The brass cage ensures smooth operation and reduces wear, enhancing the bearing’s longevity.
With a temperature range of -30°C to 110°C, it performs reliably in various environments.

Application

Common Applications of SG110XP0 Bearing
SG110XP0 Bearing is widely used in industrial automation, especially in robotic arms and precision machinery where its thin-section design saves space without compromising strength. The stainless steel construction ensures durability in demanding environments.

In aerospace applications, SG110XP0 Bearing handles both radial and moment loads efficiently, making it suitable for aircraft control systems. Its ABEC-1 tolerance provides reliable performance under varying conditions.

For medical imaging devices, SG110XP0 Bearing’s brass cage and smooth operation reduce friction, ensuring quiet and precise movement. The open seal design allows for easy lubrication maintenance.

In packaging machinery, SG110XP0 Bearing supports high-speed operations with its balanced load capacity. The inch sizing makes it compatible with many North American industrial standards.

SG110XP0 Bearing is also found in semiconductor manufacturing equipment, where its corrosion-resistant materials prevent contamination. The four-point contact design ensures stability during rapid directional changes.
