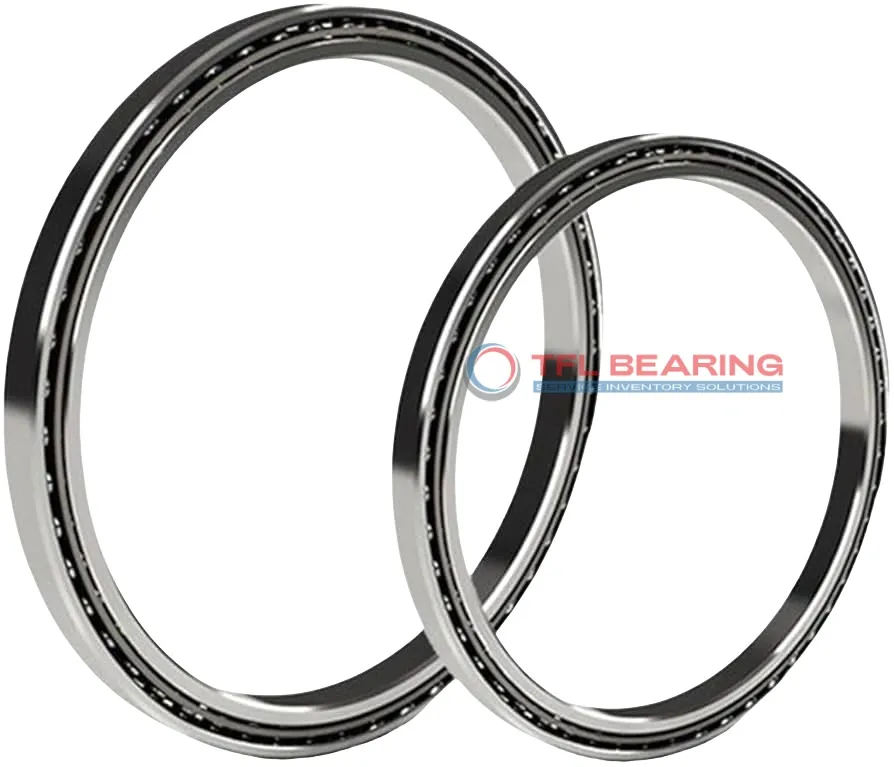

Constant Section (CS) Bearings SG040AR0

Constant Section (CS) Bearings SG040AR0

The SG040AR0 is a slim, stainless steel angular contact bearing measuring 4″×6″×1″, designed for inch-based systems. It handles dynamic radial loads up to 6281 lbf and static thrust loads up to 13630 lbf, with a smooth operation up to 110°C.

Its single-row design with a 30° contact angle offers stability, while the brass cage ensures durability. The open seal allows for easy lubrication, making maintenance straightforward.

This bearing is interchangeable with KAYDON models, ideal for precision applications like robotics or medical equipment. Its lightweight 3.61 lbs design balances strength and ease of use.

Compliant with RoHS standards, it suits environments requiring corrosion resistance and reliable performance under angular loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SG040AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4"
  • Bore Dia Tolerance -0.0008"– 0"
  • Outer Dia 6"
  • Outer Dia Tolerance -0.0006"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 4.742"
  • Internal Diameter On Outer Ring (Small Side Face) 5.258"
  • Internal Diameter On Outer Ring (Large Side Face) 5.491"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 6281 lbf
  • Static Radial Load 9480 lbf
  • Static Thrust Load 13630 lbf
  • Static Moment 27360 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 3.61 lbs
  • price（$） 444.05

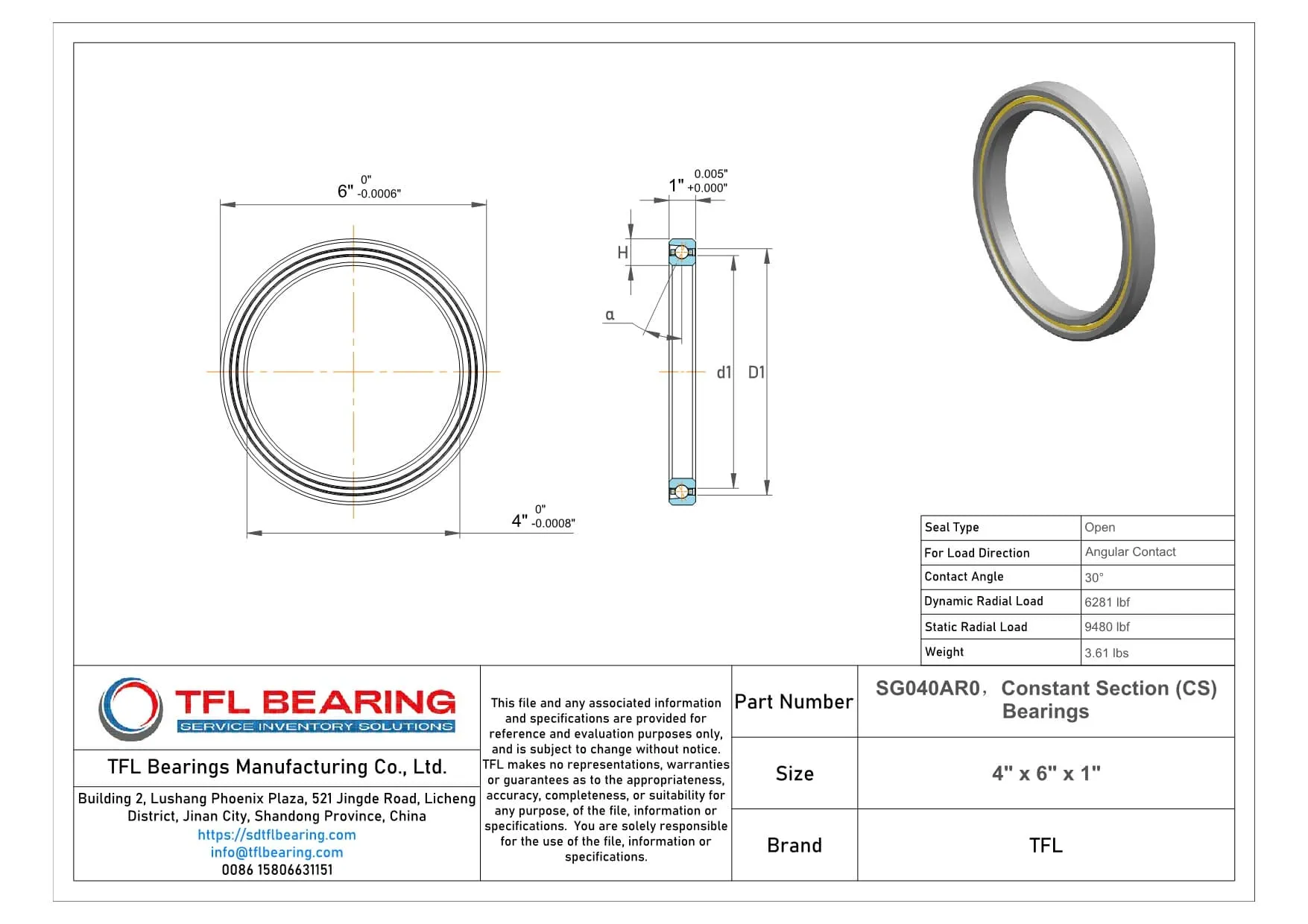

Constant Section (CS) Bearings SG040AR0 dimension drawing
