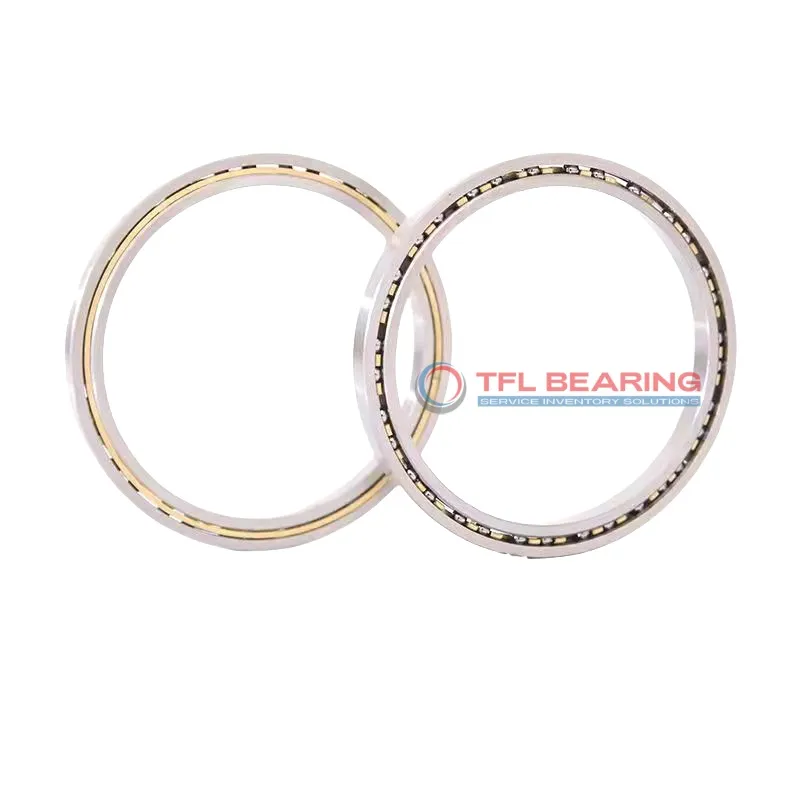

Constant Section (CS) Bearings SD140CP0

Constant Section (CS) Bearings SD140CP0

The SD140CP0 is a slim stainless steel bearing with a 14″ bore and 15″ outer diameter, designed for radial loads. Its thin 0.5″ width makes it ideal for compact spaces while handling up to 3427 lbf dynamic loads.

Made from durable stainless steel with a brass cage, it offers smooth operation and resists corrosion. The open design allows easy lubrication, extending its lifespan in various conditions.

This bearing is interchangeable with KAYDON models, providing a reliable alternative. Suitable for applications like robotics or medical equipment where precision and space-saving are key.

Weighing 2.73 lbs, it maintains strength despite its slim profile. Compliant with RoHS standards, it operates reliably between -30°C and 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SD140CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 14"
  • Bore Dia Tolerance -0.0016"– 0"
  • Outer Dia 15"
  • Outer Dia Tolerance -0.0016"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SD 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 14.370"
  • Internal Diameter On Outer Ring (Small Side Face) 14.630"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 3427 lbf
  • Static Radial Load 9920 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 2.73 lbs
  • price（$） 1012
Constant Section (CS) Bearings SD140CP0 dimension drawing
Download DWG Download PDF

Features

How Does SD140CP0 Bearing Reduce Friction?

SD140CP0 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its brass cage maintains proper ball alignment, enhancing efficiency and reducing wear.

The ABEC-1 tolerance class ensures consistent performance, making it suitable for precision applications.
With a dynamic radial load capacity of 3427 lbf, it handles demanding tasks reliably.

Designed for a temperature range of -30°C to 110°C, SD140CP0 Bearing performs well in various conditions.
Its open seal type allows for easy lubrication, further improving its longevity.

Application

Industrial Uses of SD140CP0 Bearing
SD140CP0 Bearing is commonly used in industrial machinery where space constraints are a concern, thanks to its slim profile. The stainless steel construction ensures durability in environments with exposure to moisture or chemicals.

Where Is SD140CP0 Bearing Used?
You’ll often find SD140CP0 Bearing in automation systems, particularly in robotic arms and precision positioning equipment. Its brass cage provides smooth operation, making it ideal for repetitive movements.

Built for Heavy-Duty Use: SD140CP0 Bearing
SD140CP0 Bearing handles radial loads efficiently, making it suitable for conveyor systems and rotating platforms. The ABEC-1 tolerance ensures reliable performance without unnecessary complexity.

Automotive vs Aerospace: Applications of SD140CP0 Bearing
In automotive applications, SD140CP0 Bearing fits well in steering mechanisms due to its thin section design. For aerospace, its lightweight construction is beneficial in auxiliary equipment.

Perfect Fit for Automation: SD140CP0 Bearing
SD140CP0 Bearing works seamlessly in 3D printers and CNC machines, where precision and minimal friction are key. The open seal design allows for easy lubrication adjustments as needed.
