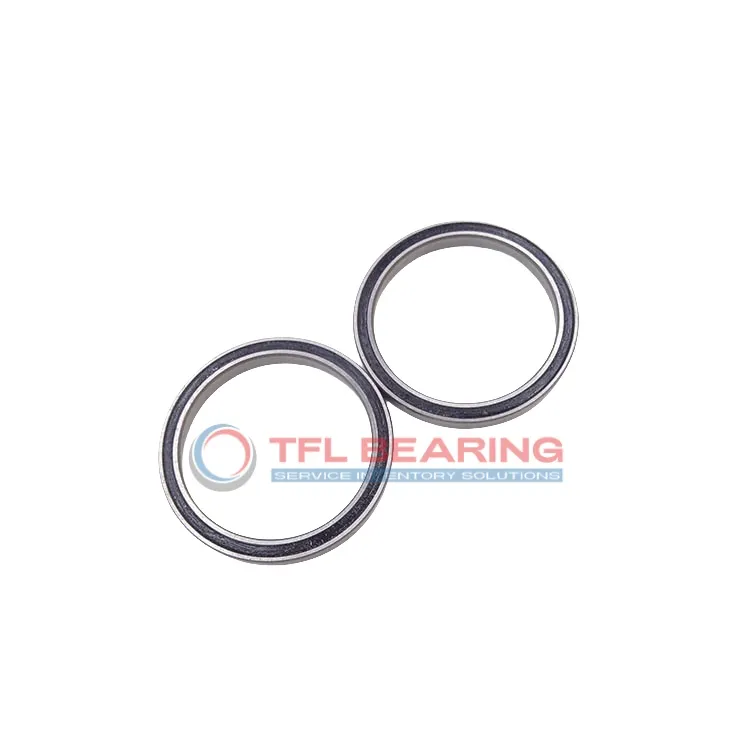

Constant Section (CS) Bearings SD047CP0

Constant Section (CS) Bearings SD047CP0

The SD047CP0 is a slim stainless steel bearing measuring 4.75″ by 5.75″ with a width of just 0.5″, making it a compact yet sturdy choice for radial loads. It handles dynamic radial loads up to 1892 lbf and static loads up to 3530 lbf, suitable for moderate-speed applications.

Its open design and brass cage ensure smooth operation, while the stainless steel construction offers corrosion resistance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, providing a reliable alternative for replacements. Ideal for use in precision equipment or machinery where space is limited but performance is key.

Weighing only 0.94 lbs, it’s lightweight and easy to handle. Compliant with RoHS standards, it’s a safe and durable option for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SD047CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.75"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.75"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SD 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.120"
  • Internal Diameter On Outer Ring (Small Side Face) 5.380"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 1892 lbf
  • Static Radial Load 3530 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.94 lbs
  • price（$） 228.65
Constant Section (CS) Bearings SD047CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SD047CP0 Bearing

SD047CP0 Bearing is crafted with stainless steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1892 lbf, making it suitable for various industrial applications.
The brass cage ensures smooth operation by keeping the balls properly aligned.
With a temperature range of -30°C to 110°C, it performs reliably in diverse environments.

Application

Common Applications of SD047CP0 Bearing
SD047CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising strength. The stainless steel construction ensures durability in demanding environments.

In medical imaging devices, SD047CP0 Bearing provides smooth rotation for components like CT scanner gantries, thanks to its low friction and reliable performance. Its brass cage adds stability during high-speed operations.

For aerospace applications, SD047CP0 Bearing is a go-to choice for control systems and actuators, where lightweight and precision are key. The ABEC-1 tolerance ensures consistent performance under radial loads.

In semiconductor manufacturing equipment, SD047CP0 Bearing’s open design allows for easy cleaning, making it ideal for cleanroom environments. The inch sizing simplifies integration with existing machinery.

Consumer electronics like high-end printers benefit from SD047CP0 Bearing’s quiet operation and long service life. Its lubricated design reduces maintenance needs, ensuring hassle-free performance.
