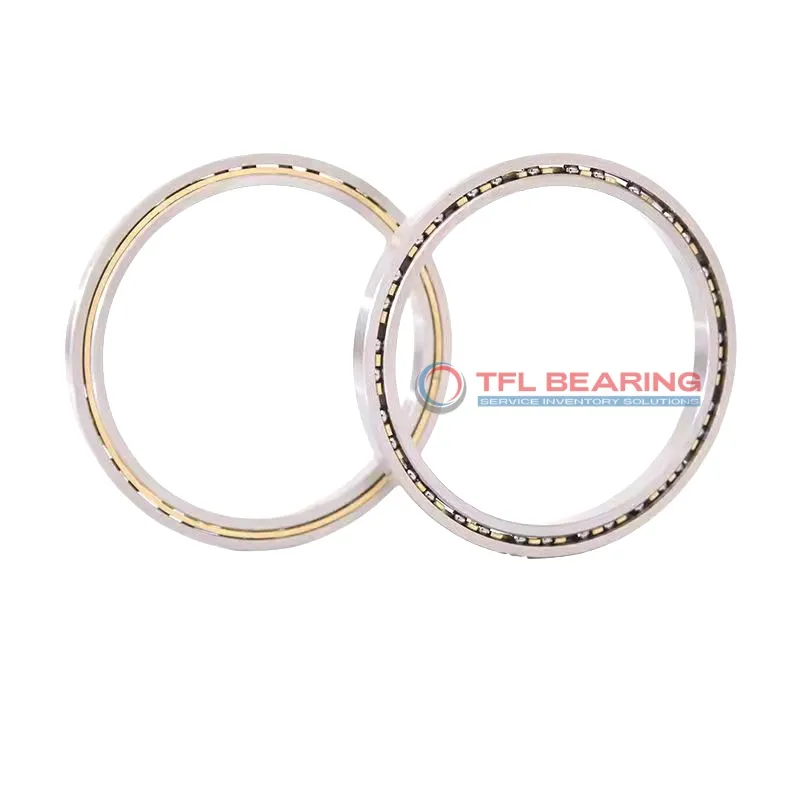

Constant Section (CS) Bearings SB140CP0

Constant Section (CS) Bearings SB140CP0

The SB140CP0 is a thin-section radial ball bearing measuring 14″×14.625″×0.3125″, crafted from durable stainless steel for long-lasting performance. It handles radial loads up to 1680 lbf and fits snugly with a bore tolerance of -0.0016″ to 0″.

Its slim 5/16″ design saves space while maintaining strength, and the brass cage ensures smooth operation. The open seal allows for easy lubrication, making maintenance straightforward.

This bearing is interchangeable with KAYDON models, ideal for applications requiring precision and reliability. Suitable for use in machinery where space is limited but performance can’t be compromised.

Weighing just 1.05 lbs, it’s lightweight yet robust. Compliant with RoHS standards, it operates smoothly in temperatures from -30°C to 110°C. Perfect for aerospace or medical equipment where thin, reliable bearings are essential.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SB140CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 14"
  • Bore Dia Tolerance -0.0016"– 0"
  • Outer Dia 14.625"
  • Outer Dia Tolerance -0.0016"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 14.231"
  • Internal Diameter On Outer Ring (Small Side Face) 14.393"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 1680 lbf
  • Static Radial Load 5810 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2851 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.05 lbs
  • price（$） 1216.18
Constant Section (CS) Bearings SB140CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SB140CP0 Bearing

SB140CP0 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion.
Its dynamic radial load capacity of 1680 lbf ensures reliable performance in various applications.
The brass cage maintains ball alignment, reducing friction and extending service life.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

How Is SB140CP0 Bearing Engineered for Reliability?

SB140CP0 Bearing features a thin-section design, making it ideal for space-constrained applications.
The ABEC-1 tolerance class ensures consistent performance and precision.
Stainless steel construction provides durability and resistance to wear.
Its open seal type allows for easy lubrication and maintenance.

Built for Durability: SB140CP0 Bearing

SB140CP0 Bearing’s stainless steel materials enhance its longevity and corrosion resistance.
The brass cage design minimises wear, ensuring smooth operation over time.
With a static radial load capacity of 5810 lbf, it handles demanding conditions effectively.
Its lightweight design at 1.05 lbs makes it easy to integrate into various systems.

Application

Industrial Uses of SB140CP0 Bearing
SB140CP0 Bearing is commonly used in industrial machinery where space constraints are a concern, thanks to its thin-section design. The stainless steel construction ensures durability in environments with exposure to moisture or chemicals.

Where Is SB140CP0 Bearing Used?
You’ll often find SB140CP0 Bearing in applications like robotic arms and precision turntables, where its low-profile design and radial load capacity are ideal. The brass cage adds smooth operation, making it suitable for high-accuracy tasks.

Built for Heavy-Duty Use: SB140CP0 Bearing
SB140CP0 Bearing handles radial loads efficiently in equipment like packaging machines and conveyor systems. Its ABEC-1 tolerance ensures reliable performance without requiring frequent adjustments.

Automotive vs Aerospace: Applications of SB140CP0 Bearing
In automotive jigs and aerospace alignment tools, SB140CP0 Bearing provides precise movement due to its thin-section profile. The stainless steel material also resists corrosion in demanding environments.

Perfect Fit for Automation: SB140CP0 Bearing
SB140CP0 Bearing works well in automated systems like CNC routers, where its compact size and smooth operation reduce friction. The lubricated design ensures long service life with minimal maintenance.
