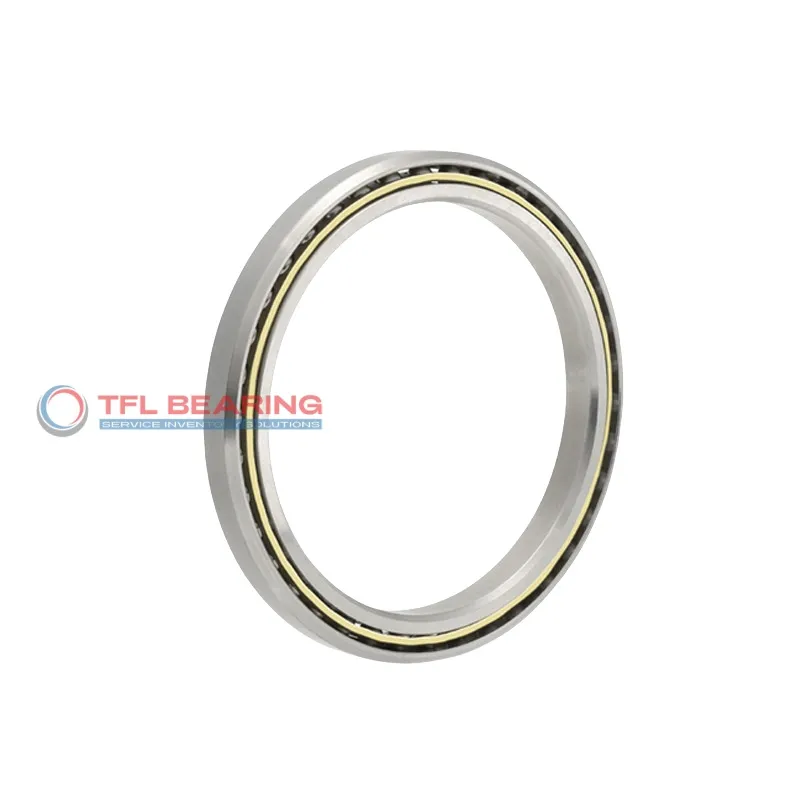

Constant Section (CS) Bearings S13003CS0

Constant Section (CS) Bearings S13003CS0

The S13003CS0 is a constant section bearing with a slim 2.5mm width and dimensions of 130mm by 136mm, crafted entirely from stainless steel for durability. It handles radial loads up to 225 lbf and operates smoothly in temperatures ranging from -30°C to 110°C.

Its open design and ABEC-1 tolerance ensure reliable performance, while the stainless steel cage adds longevity. The ultra-slim profile makes it ideal for applications where space is limited.

This bearing is interchangeable with KAYDON models, offering a practical replacement option. Suitable for precision equipment or machinery requiring thin, lightweight components.

Weighing just 19g, it’s easy to handle and install. Compliant with RoHS standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S13003CS0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 136 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 2.5 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type UltraSlim Bearings
  • Series 2.5 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 132.2 mm
  • Internal Diameter On Outer Ring (Small Side Face) 133.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 225 lbf
  • Static Radial Load 346 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 19.0 g
  • price（$） 414.51
Constant Section (CS) Bearings S13003CS0 dimension drawing
Download DWG Download PDF

Features

Performance Features of S13003CS0 Bearing

S13003CS0 Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its ultra-slim 2.5 mm width makes it ideal for space-constrained applications without compromising strength.
The ABEC-1 tolerance ensures consistent performance, while the open design allows for easy lubrication.
With a dynamic radial load capacity of 225 lbf, it handles moderate loads efficiently.

Application

Industrial Uses of S13003CS0 Bearing
S13003CS0 Bearing is commonly used in industrial machinery where space constraints are a concern, thanks to its ultra-slim 2.5 mm design. Its stainless steel construction ensures durability in environments with moderate radial loads.

Where Is S13003CS0 Bearing Used?
You’ll find S13003CS0 Bearing in applications like robotics and precision equipment, where its thin profile and ABEC-1 tolerance provide reliable performance. The open seal design allows for easy lubrication and maintenance.

Built for Versatility: S13003CS0 Bearing
S13003CS0 Bearing works well in medical imaging devices, offering smooth operation due to its stainless steel balls and rings. Its lightweight design (19.0 g) makes it ideal for portable equipment.

Automotive vs Aerospace: Applications of S13003CS0 Bearing
In automotive systems, S13003CS0 Bearing fits compact assemblies like sensors, while in aerospace, its thin section suits lightweight components. The metric sizing ensures compatibility across industries.

Perfect Fit for Automation: S13003CS0 Bearing
S13003CS0 Bearing is a go-to choice for automated conveyor systems, where its low-profile design saves space. The stainless steel cage resists wear, even in high-use scenarios.
