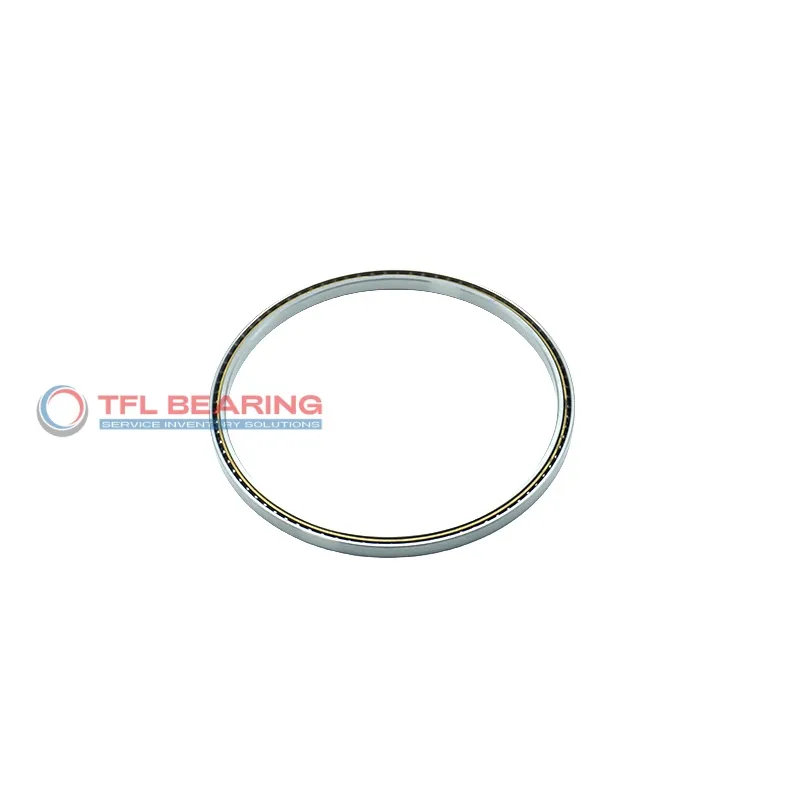

Constant Section (CS) Bearings NG200AR0

Constant Section (CS) Bearings NG200AR0

The NG200AR0 is a constant section bearing with a 20″ bore and 22″ outer diameter, featuring a slim 1″ width. Made from chrome steel with brass cage, it’s built for angular contact loads and offers smooth operation.

This bearing handles dynamic radial loads up to 13612 lbf and static thrust loads of 35490 lbf, suitable for moderate-speed applications. Its 30° contact angle provides stable performance under combined loads.

The open design allows easy lubrication, while the Endura-kote plating enhances durability. It operates in temperatures from -30°C to 110°C, making it versatile for various environments.

Ideal for industrial machinery or rotary tables, this model is interchangeable with KAYDON bearings. Weighing 15.2 lbs, it’s a robust choice for space-constrained applications requiring precise movement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG200AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 20"
  • Bore Dia Tolerance -0.0018"– 0"
  • Outer Dia 22"
  • Outer Dia Tolerance -0.0018"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 20.742"
  • Internal Diameter On Outer Ring (Small Side Face) 21.258"
  • Internal Diameter On Outer Ring (Large Side Face) 21.468"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 13612 lbf
  • Static Radial Load 39810 lbf
  • Static Thrust Load 35490 lbf
  • Static Moment 114900 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 17745 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 15.2 lbs
  • price（$） 1807.87

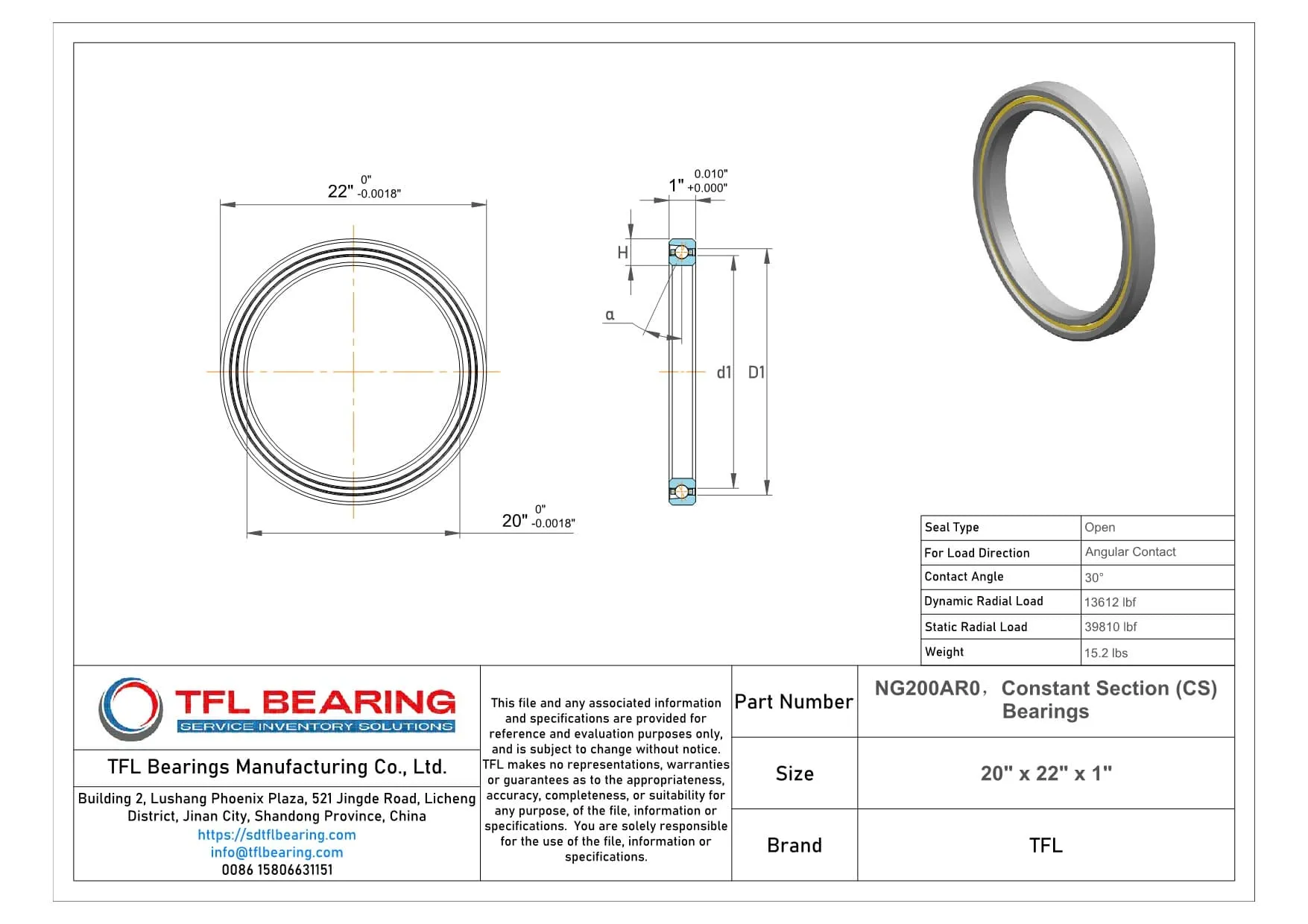

Constant Section (CS) Bearings NG200AR0 dimension drawing
Download DWG Download PDF
