Constant Section (CS) Bearings NG120XP0

Constant Section (CS) Bearings NG120XP0

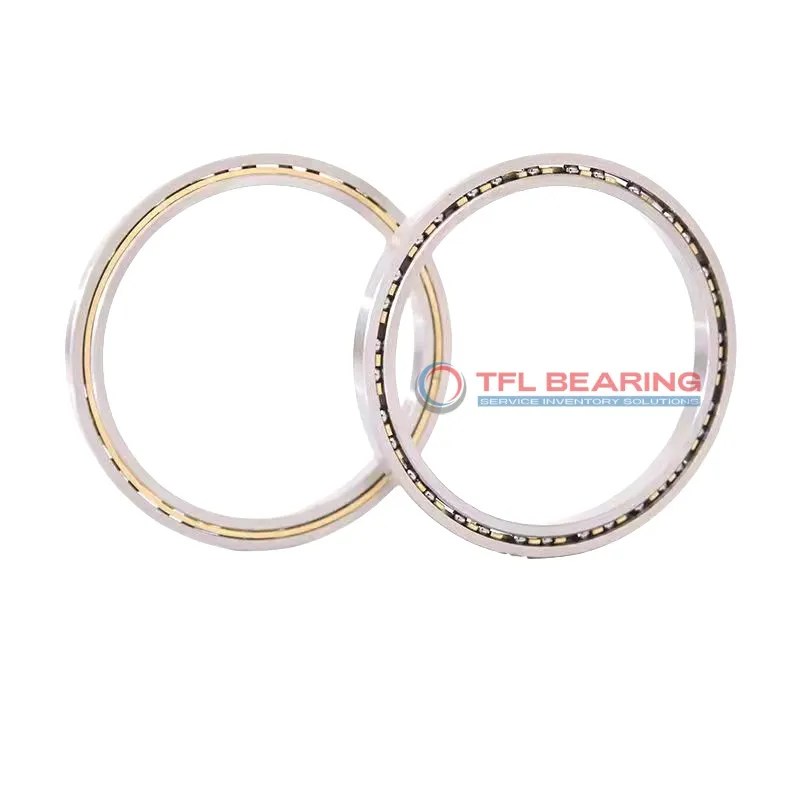

The NG120XP0 is a constant section bearing measuring 12″ by 14″ with a slim 1″ width, crafted from durable chrome steel. It handles heavy loads, with a dynamic radial load capacity of 13315 lbf and a static thrust load of 53350 lbf.

Its open design and brass cage ensure smooth operation, while the chromium plating adds extra protection against wear. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, making it a versatile choice for replacements. Ideal for applications requiring high load capacity and precision, such as robotics or industrial machinery.

Weighing 9.3 lbs, it’s robust yet manageable for its size. Compliant with RoHS standards, it’s a reliable option for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG120XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 12"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 14"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 12.742"
  • Internal Diameter On Outer Ring (Small Side Face) 13.258"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 13315 lbf
  • Static Radial Load 21340 lbf
  • Static Thrust Load 53350 lbf
  • Static Moment 138700 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 64 lbf
  • Dynamic Thrust Load 21280 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 9.3 lbs
  • price（$） 364.64
Constant Section (CS) Bearings NG120XP0 dimension drawing
Download DWG Download PDF
