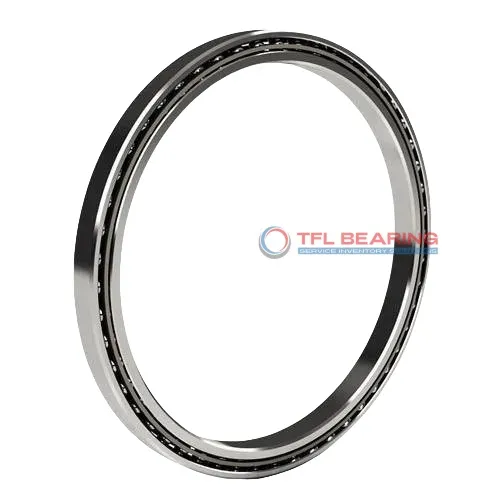

Constant Section (CS) Bearings NG070XP0

The NG070XP0 is a constant section bearing measuring 7″×9″×1″, designed for four-point contact and made from durable chrome steel. It handles dynamic radial loads up to 10208 lbf and static thrust loads up to 32830 lbf, with a temperature range of -30°C to 110°C.

Its thin-section design and chromium plating make it resistant to wear, while the brass cage ensures smooth operation. The bearing is lubricated for easy maintenance and complies with RoHS standards.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications requiring precise movement, such as robotics or medical equipment.

Weighing 5.8 lbs, it’s lightweight yet robust, with a moment load rating of 30 ft-lbf. The open seal design allows for easy inspection and cleaning.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number NG070XP0
Brand TFL
Interchangeable KAYDON
System of Measurement Inch
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Open
Bore Dia 7"
Bore Dia Tolerance -0.0010"– 0"
Outer Dia 9"
Outer Dia Tolerance -0.0012"– 0"
Width 1"
Width Tolerance +.000 –.005"
Thin Section Bearings Type Endura-kote Plated Bearings
Series NG 1" x 1"
Tolerance Class ABEC-1
Radial Clearance 0.0000 – 0.0005"
External Diameter On Inner Ring 7.742"
Internal Diameter On Outer Ring (Small Side Face) 8.258"
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 10208 lbf
Static Radial Load 13130 lbf
Static Thrust Load 32830 lbf
Static Moment 52530 lbf
Temperature Range -30°C to 110 °C
Moment Load Rating 30 lbf
Dynamic Thrust Load 15400 lbf
Surface Chromium Plating
Lubrication Lubricated
RoHS Compliant
Weight 5.8 lbs
price（$） 268.27

Constant Section (CS) Bearings NG070XP0 dimension drawing

Download DWG Download PDF
