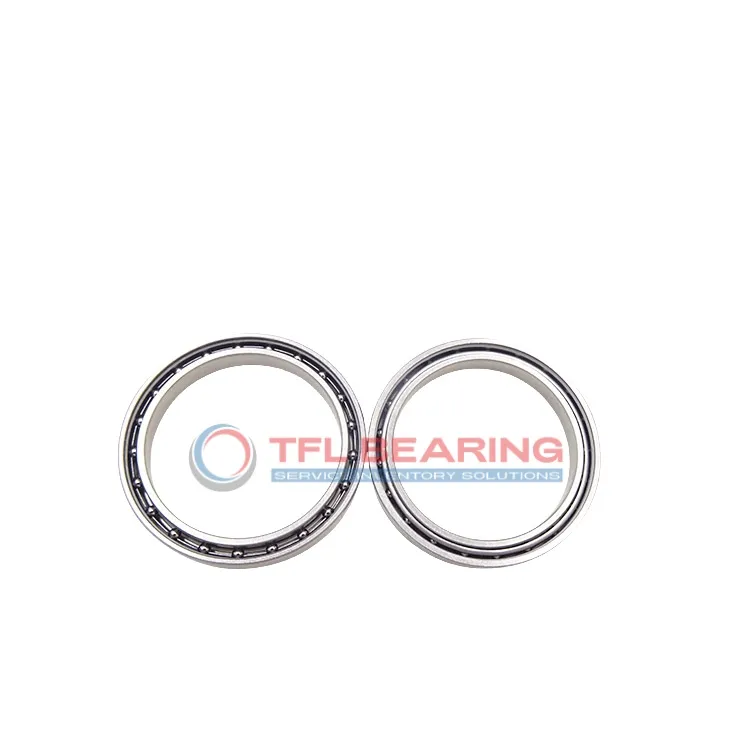

Constant Section (CS) Bearings NG055CP0

Constant Section (CS) Bearings NG055CP0

The NG055CP0 is a thin-section radial ball bearing measuring 5.5″ by 7.5″ with a 1″ width, featuring durable chrome steel construction. It handles radial loads up to 6850 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and brass cage ensure reliable performance, while the chromium plating adds extra corrosion resistance. The bearing is lubricated for easy maintenance and long service life.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring precise radial load support, such as robotics or medical equipment.

Weighing 4.7 lbs, it’s lightweight yet sturdy for its size. Compliant with RoHS standards, it’s a safe and dependable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG055CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 6.242"
  • Internal Diameter On Outer Ring (Small Side Face) 6.758"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 6850 lbf
  • Static Radial Load 10400 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 10563 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 4.7 lbs
  • price（$） 214.9
Constant Section (CS) Bearings NG055CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of NG055CP0 Bearing

NG055CP0 Bearing is crafted with chrome steel rings and balls, offering robust radial load capacity up to 6850 lbf.
Its brass cage ensures smooth ball alignment, enhancing durability and reducing friction.

The chromium plating on NG055CP0 Bearing provides excellent corrosion resistance, ideal for harsh environments.
With a temperature range of -30°C to 110°C, it performs reliably in varied conditions.

NG055CP0 Bearing’s ABEC-1 tolerance class ensures consistent precision for radial applications.
Its thin section design saves space while maintaining high load-bearing capabilities.

The open seal type of NG055CP0 Bearing allows for easy lubrication and maintenance.
Weighing just 4.7 lbs, it combines strength with lightweight efficiency.

Application

Industrial Uses of NG055CP0 Bearing
NG055CP0 Bearing is commonly used in industrial machinery, especially where space constraints require thin-section designs, such as robotic arms and packaging equipment. Its chromium plating offers added protection against corrosion in harsh environments.

Where Is NG055CP0 Bearing Used?
You’ll often find NG055CP0 Bearing in automation systems, where its brass cage ensures smooth rotation in high-precision applications like CNC routers. The inch sizing makes it a good fit for machinery following imperial standards.

Built for Heavy-Duty Use: NG055CP0 Bearing
NG055CP0 Bearing handles radial loads effortlessly in construction equipment, such as conveyor rollers, thanks to its chrome steel construction. The ABEC-1 tolerance provides reliable performance without overcomplicating maintenance.

Automotive vs Aerospace: Applications of NG055CP0 Bearing
In automotive steering systems, NG055CP0 Bearing’s thin profile helps save space without sacrificing load capacity. For aerospace applications, its lightweight design and chromium plating make it suitable for auxiliary equipment.

Perfect Fit for Automation: NG055CP0 Bearing
NG055CP0 Bearing works well in 3D printers, where precise movement is key. The open seal design allows for easy lubrication, ensuring long-term performance in continuous operation.
