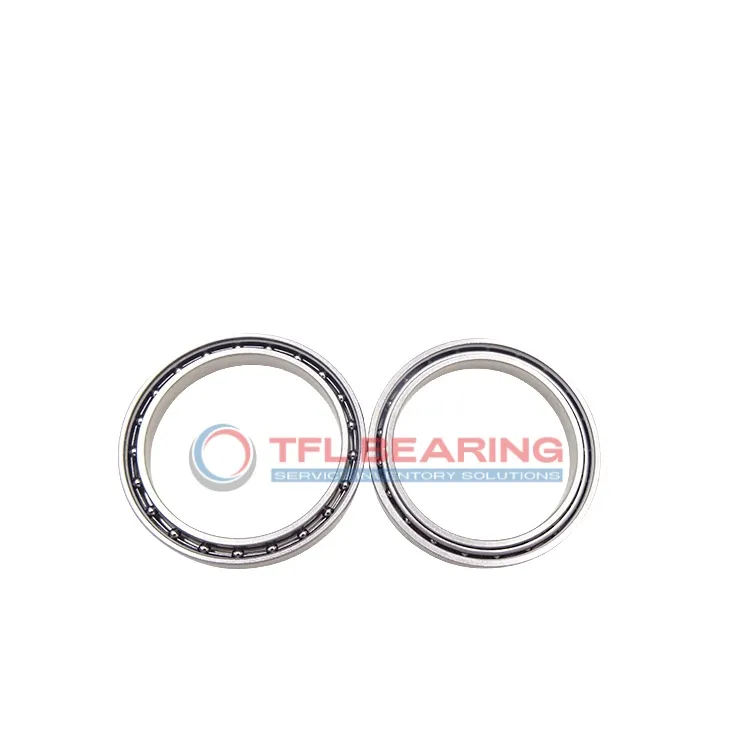

Constant Section (CS) Bearings ND055AR0

Constant Section (CS) Bearings ND055AR0

The ND055AR0 is a constant section bearing measuring 5.5″×6.5″×0.5″, made from durable chrome steel with a brass cage. It handles angular contact loads and fits inch-based systems, interchangeable with KAYDON models.

With a 30° contact angle, it supports dynamic radial loads up to 2145 lbf and static thrust loads up to 5160 lbf. Its ABEC-1 tolerance ensures reliable performance, while the open design allows easy lubrication.

The thin-section Endura-kote plating reduces friction and extends lifespan. It operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

Ideal for applications requiring precise angular contact, such as robotics or rotary tables. Its lightweight design (1.06 lbs) and chromium-plated surface offer a balance of strength and corrosion resistance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number ND055AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series ND 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 5.870"
  • Internal Diameter On Outer Ring (Small Side Face) 6.130"
  • Internal Diameter On Outer Ring (Large Side Face) 6.238"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2145 lbf
  • Static Radial Load 4740 lbf
  • Static Thrust Load 5160 lbf
  • Static Moment 13680 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 4138 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.06 lbs
  • price（$） 169.34
Constant Section (CS) Bearings ND055AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of ND055AR0 Bearing

ND055AR0 Bearing is designed with a 30° contact angle, optimising load distribution for angular contact applications.
Its chrome steel construction ensures durability and resistance to wear in various operating conditions.

The brass cage in ND055AR0 Bearing maintains ball alignment, reducing friction and extending service life.
With a static radial load capacity of 4740 lbf, it handles demanding tasks reliably.

ND055AR0 Bearing operates smoothly within a temperature range of -30°C to 110°C, suitable for diverse environments.
Its ABEC-1 tolerance class provides consistent performance for precision applications.

The chromium plating on ND055AR0 Bearing enhances corrosion resistance, ensuring long-term reliability.
Its thin section design saves space while maintaining high load capacity.

Application

Industrial Uses of ND055AR0 Bearing
ND055AR0 Bearing is commonly used in industrial machinery where space is limited but precision is key, such as robotic arms and conveyor systems. Its thin-section design makes it ideal for compact applications without sacrificing load capacity.

In automotive applications, ND055AR0 Bearing fits well in steering systems and gearboxes, providing smooth angular contact performance. The chromium plating adds extra durability against wear and corrosion.

For medical imaging devices, ND055AR0 Bearing offers reliable operation due to its chrome steel construction and brass cage. The ABEC-1 tolerance ensures consistent performance in high-precision environments.

Automotive vs Aerospace: Applications of ND055AR0 Bearing
In automotive systems, ND055AR0 Bearing handles angular loads in transmissions and differentials with ease. Its inch sizing makes it compatible with many North American vehicle designs.

Aerospace applications benefit from ND055AR0 Bearing’s lightweight yet robust construction, suitable for actuators and control systems. The temperature range ensures performance in varying flight conditions.

What Makes ND055AR0 Bearing a Preferred Choice?
ND055AR0 Bearing stands out in automation equipment like 3D printers for its precise movement and low friction. The open design allows for easy lubrication maintenance.

In household appliances, ND055AR0 Bearing ensures quiet and efficient operation in devices like washing machines. Its brass cage reduces vibration, enhancing longevity.
