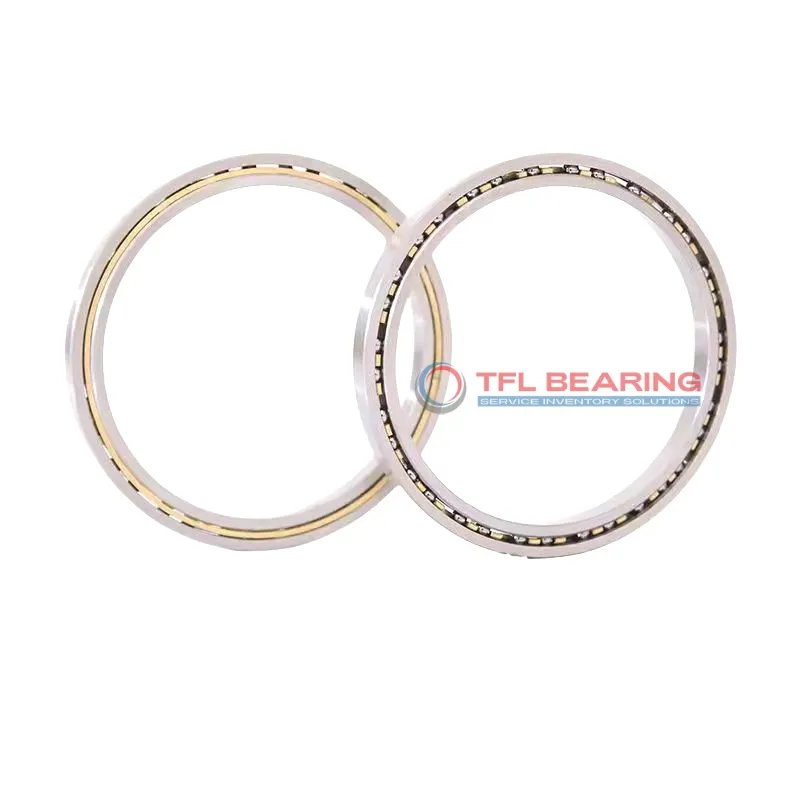

Constant Section (CS) Bearings NC140AR0

Constant Section (CS) Bearings NC140AR0

The NC140AR0 is a constant section bearing measuring 14″ by 14.75″ with a slim 0.375″ width, made from durable chrome steel. It handles angular contact loads with a 30° contact angle and supports radial loads up to 2347 lbf.

Its open design and brass cage ensure smooth operation, while the chromium plating adds extra corrosion resistance. The bearing works in temperatures from -30°C to 110°C and comes pre-lubricated for easy use.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing 1.43 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NC140AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 14"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 14.75"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 14.277"
  • Internal Diameter On Outer Ring (Small Side Face) 14.473"
  • Internal Diameter On Outer Ring (Large Side Face) 14.535"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2347 lbf
  • Static Radial Load 8490 lbf
  • Static Thrust Load 6170 lbf
  • Static Moment 24500 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 3946 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.43 lbs
  • price（$） 777.91
Constant Section (CS) Bearings NC140AR0 dimension drawing
Download DWG Download PDF

Features

Why Choose NC140AR0 Bearing for Precision Tasks?

NC140AR0 Bearing features a 30° contact angle, optimised for angular contact loads and precise motion control.

Its chrome steel construction ensures durability, while the brass cage maintains ball alignment for smooth operation.

With ABEC-1 tolerance class, NC140AR0 Bearing delivers consistent performance in applications requiring tight tolerances.

The thin-section design saves space without compromising on load capacity, making it versatile for compact machinery.

Application

Industrial Uses of NC140AR0 Bearing
NC140AR0 Bearing is commonly used in industrial machinery, especially where space is limited but high precision is needed, like in robotic arms and conveyor systems. Its thin section design makes it ideal for compact applications without sacrificing performance.

In automotive applications, NC140AR0 Bearing works well in steering systems and gearboxes, providing smooth angular contact under load. The chrome steel construction ensures durability even in demanding driving conditions.

For medical equipment, NC140AR0 Bearing’s precision and reliability make it suitable for imaging devices and surgical tools. The brass cage adds stability, which is crucial for maintaining accuracy in sensitive medical environments.

Automation and robotics benefit from NC140AR0 Bearing’s lightweight design and high load capacity, making it a go-to for robotic joints and automated assembly lines. The ABEC-1 tolerance ensures consistent performance in repetitive tasks.

In consumer electronics, NC140AR0 Bearing can be found in high-end printers and precision tools, where its thin profile and smooth operation enhance device longevity. The chromium plating also helps resist wear in everyday use.
