Constant Section (CS) Bearings NC100XP0

Constant Section (CS) Bearings NC100XP0

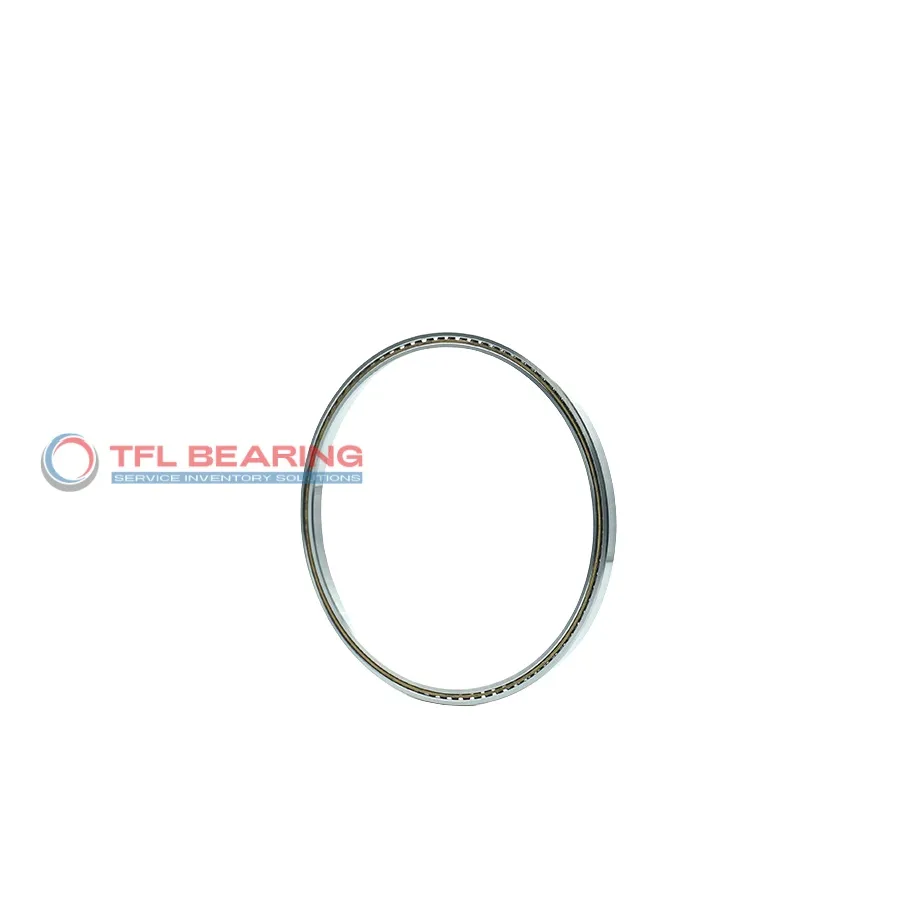

The NC100XP0 is a thin-section ball bearing with a 10-inch bore and 10.75-inch outer diameter, featuring a compact width of just 0.375 inches. Its chrome steel construction and brass cage ensure durability and smooth operation under various loads.

This four-point contact bearing handles dynamic radial loads up to 2364 lbf and static thrust loads up to 12470 lbf, making it versatile for demanding applications. It operates efficiently in temperatures ranging from -30°C to 110°C.

The open design and chromium plating provide easy maintenance and corrosion resistance. Its lightweight build at 1.06 lbs makes it easy to handle without sacrificing strength.

Ideal for applications requiring precise movement and space efficiency, such as robotics or aerospace components. Compliant with RoHS standards, it’s a reliable choice for engineers and maintenance teams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NC100XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 10"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 10.75"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 10.277"
  • Internal Diameter On Outer Ring (Small Side Face) 10.473"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2364 lbf
  • Static Radial Load 4990 lbf
  • Static Thrust Load 12470 lbf
  • Static Moment 25880 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 9 lbf
  • Dynamic Thrust Load 3930 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.06 lbs
  • price（$） 231.6
Constant Section (CS) Bearings NC100XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of NC100XP0 Bearing

NC100XP0 Bearing is built with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 2364 lbf, ensuring reliable performance in various applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

NC100XP0 Bearing’s chromium plating enhances durability and corrosion resistance.
Its thin-section design makes it suitable for space-constrained applications.

Application

Key Fields for NC100XP0 Bearing
NC100XP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising strength. The chromium plating adds extra resistance to wear in demanding environments.

In aerospace applications, NC100XP0 Bearing handles moment loads effectively, making it suitable for control systems and actuation mechanisms. Its brass cage ensures smooth operation even under varying temperatures.

For medical imaging devices, NC100XP0 Bearing’s ABEC-1 tolerance provides the necessary precision for stable, low-friction movement. The open seal design allows for easy lubrication, extending service life in critical equipment.

Automotive steering systems benefit from NC100XP0 Bearing’s ability to manage both radial and thrust loads. Its inch sizing makes it a straightforward replacement for many North American vehicle components.

In packaging machinery, NC100XP0 Bearing’s lightweight construction reduces energy consumption while maintaining reliability. The chrome steel rings offer durability for continuous operation in high-speed production lines.
