Constant Section (CS) Bearings NC050XP0

Constant Section (CS) Bearings NC050XP0

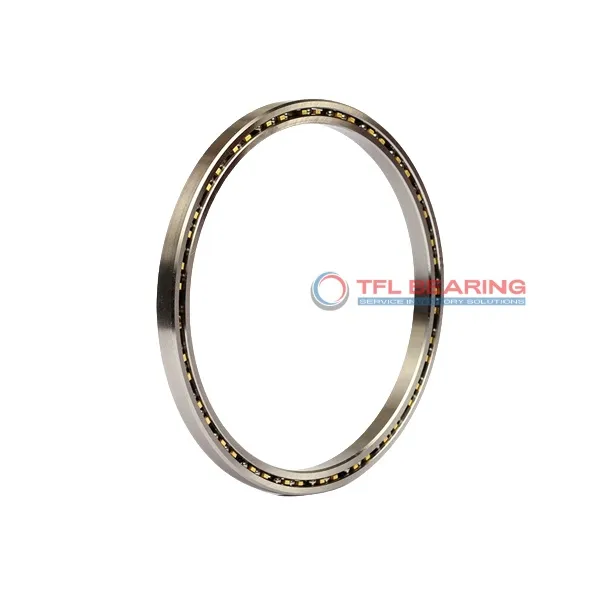

The NC050XP0 is a thin-section bearing with a 5″ bore and 5.75″ outer diameter, featuring a compact width of just 0.375″. Made from chrome steel with a brass cage, it offers a good balance of strength and smooth operation.

This four-point contact bearing handles radial loads up to 1600 lbf and thrust loads to 2540 lbf, making it versatile for various applications. Its open design allows for easy lubrication and maintenance.

The Endura-kote plating provides extra corrosion resistance, while the ABEC-1 tolerance ensures reliable performance. It’s interchangeable with KAYDON bearings for easy replacement.

Ideal for use in robotics or precision machinery where space is limited but performance can’t be compromised. Works in temperatures from -30°C to 110°C and weighs only 0.58 lbs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NC050XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.75"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.277"
  • Internal Diameter On Outer Ring (Small Side Face) 5.473"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1600 lbf
  • Static Radial Load 2590 lbf
  • Static Thrust Load 6460 lbf
  • Static Moment 6950 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 3 lbf
  • Dynamic Thrust Load 2540 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.58 lbs
  • price（$） 139.02
Constant Section (CS) Bearings NC050XP0 dimension drawing
Download DWG Download PDF

Features

How Is NC050XP0 Bearing Engineered for Reliability?

NC050XP0 Bearing features a four-point contact design, ensuring smooth operation under various load conditions.
Its chrome steel construction provides durability and resistance to wear, even in demanding environments.

The brass cage maintains proper ball alignment, reducing friction and extending the bearing’s lifespan.
With a static thrust load capacity of 6460 lbf, it handles heavy loads with ease.

NC050XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its chromium plating enhances corrosion resistance, making it suitable for diverse applications.

Application

Industrial Uses of NC050XP0 Bearing
NC050XP0 Bearing is commonly used in robotics and automation systems, where its thin section design saves space without compromising load capacity. The chromium plating adds extra protection against wear in high-movement applications.

Where Is NC050XP0 Bearing Used?
You’ll often find NC050XP0 Bearing in aerospace equipment, such as satellite mechanisms, due to its precise ABEC-1 tolerance. Its brass cage ensures smooth rotation even under moment loads.

Built for Heavy-Duty Use: NC050XP0 Bearing
NC050XP0 Bearing handles radial and thrust loads effortlessly in industrial gearboxes, making it a reliable choice for machinery. The chrome steel construction provides durability in harsh environments.

Automotive vs Aerospace: Applications of NC050XP0 Bearing
In automotive steering systems, NC050XP0 Bearing offers smooth performance under dynamic loads. For aerospace, its lightweight design and precision make it ideal for control mechanisms.

Perfect Fit for Automation: NC050XP0 Bearing
NC050XP0 Bearing works well in 3D printers and CNC machines, where its thin profile and high load capacity are advantageous. The open seal design allows for easy lubrication maintenance.
