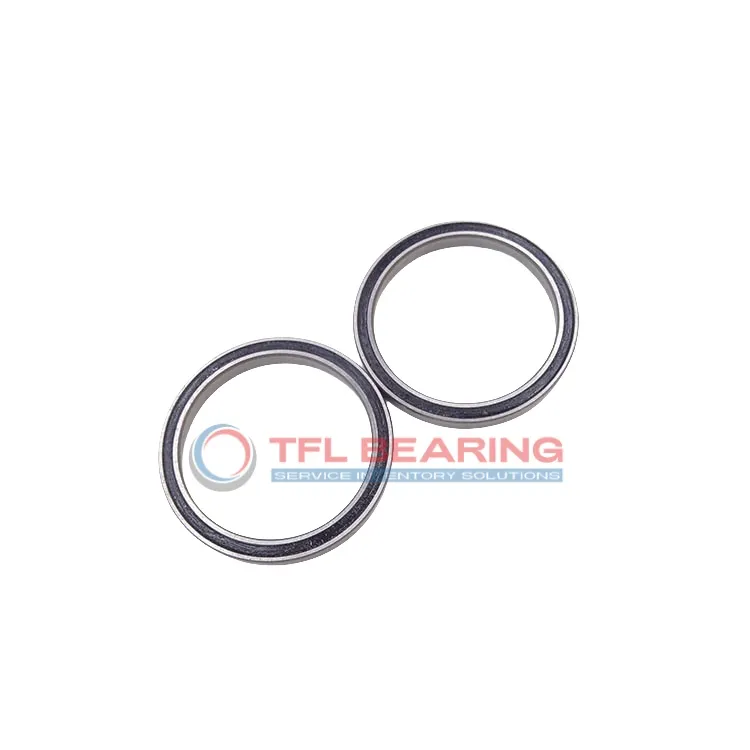

Constant Section (CS) Bearings KC045XP0

Constant Section (CS) Bearings KC045XP0

The KC045XP0 is a thin-section ball bearing with a compact design, measuring 4.5″ in bore and 5.25″ in outer diameter. Its slim 0.375″ width makes it ideal for space-constrained applications, while the chrome steel construction ensures durability.

This four-point contact bearing handles radial loads up to 1510 lbf and thrust loads up to 2380 lbf, performing well in various orientations. The brass cage provides smooth operation, and it’s pre-lubricated for easy use straight out of the box.

With an ABEC-1 tolerance class, it offers reliable precision for moderate-speed applications. The open design allows for simple maintenance and inspection.

Suitable for robotics or precision machinery, it operates in temperatures from -30°C to 110°C. Weighing just 0.48 lbs, it’s lightweight yet robust. Compliant with RoHS standards, it’s interchangeable with KAYDON bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KC045XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.5"
  • Bore Dia Tolerance -0.0008"– 0"
  • Outer Dia 5.25"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Open Bearings
  • Series KC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 4.777"
  • Internal Diameter On Outer Ring (Small Side Face) 4.973"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1510 lbf
  • Static Radial Load 2340 lbf
  • Static Thrust Load 5860 lbf
  • Static Moment 5710 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 2 lbf
  • Dynamic Thrust Load 2380 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.48 lbs
  • price（$） 102.96
Constant Section (CS) Bearings KC045XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of KC045XP0 Bearing

KC045XP0 Bearing is crafted with chrome steel rings and balls, offering robust performance in four-point contact applications.
Its brass cage ensures smooth operation by maintaining proper ball alignment, reducing friction and wear.
With a dynamic radial load capacity of 1510 lbf, it handles demanding tasks efficiently.
The bearing operates reliably within a temperature range of -30°C to 110°C, suitable for various environments.

Application

Key Fields for KC045XP0 Bearing
KC045XP0 Bearing is commonly used in robotics, particularly in articulated arms where its thin section design saves space without compromising load capacity. The brass cage ensures smooth rotation, which is vital for precise movements.

In aerospace applications, KC045XP0 Bearing handles moderate radial and thrust loads in control systems. Its ABEC-1 tolerance makes it suitable for components requiring reliable but not ultra-precise performance.

For packaging machinery, KC045XP0 Bearing’s open design allows easy lubrication, extending service life in high-speed conveyors. The chrome steel construction resists wear in dusty industrial environments.

Where Is KC045XP0 Bearing Used?
You’ll find KC045XP0 Bearing in medical imaging devices, where its compact size fits into tight spaces. The four-point contact design provides stability during rotational movements.

In semiconductor equipment, KC045XP0 Bearing supports wafer handling arms. Its inch sizing simplifies integration with American-made machinery, reducing adaptation costs.

Built for Heavy-Duty Use: KC045XP0 Bearing
KC045XP0 Bearing works well in construction equipment like small cranes, handling moment loads up to 2 ft-lbf. The chrome steel rings withstand harsh outdoor conditions.

For textile machinery, KC045XP0 Bearing’s thin profile fits into spinning frames. The lubricated design reduces maintenance needs in continuous operation scenarios.

Automotive vs Aerospace: Applications of KC045XP0 Bearing
In automotive steering columns, KC045XP0 Bearing manages combined loads while maintaining compact dimensions. Its 4.5″ bore suits mid-sized vehicle designs.

For drone gimbal systems, KC045XP0 Bearing offers lightweight rotation. The 0.375″ width helps keep aerial platforms agile without sacrificing bearing performance.
