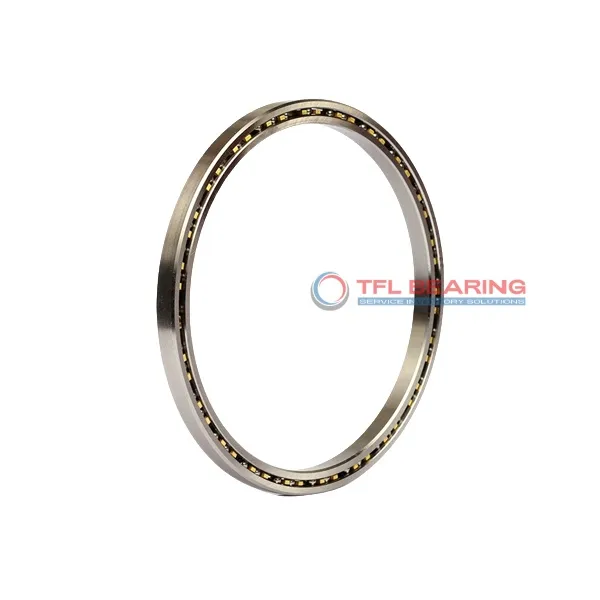

Constant Section (CS) Bearings KB050CP0

Constant Section (CS) Bearings KB050CP0

The KB050CP0 is a slim, open-type ball bearing with a 5-inch bore and 5.625-inch outer diameter, crafted from durable chrome steel. Its compact width of just 0.3125 inches makes it ideal for space-saving applications.

This single-row bearing handles radial loads up to 933 lbf and operates smoothly in temperatures from -30°C to 110°C. The brass cage ensures reliable performance, while the ABEC-1 tolerance class offers good precision.

Its open design allows for easy lubrication, extending its service life. The bearing is interchangeable with KAYDON models, providing a versatile replacement option.

Weighing only 0.38 lbs, it’s lightweight yet sturdy. Suitable for machinery where slim profiles and radial load capacity are key, such as robotics or precision equipment. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KB050CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.625"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Open Bearings
  • Series KB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.231"
  • Internal Diameter On Outer Ring (Small Side Face) 5.393"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 933 lbf
  • Static Radial Load 2150 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1976 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.38 lbs
  • price（$） 103.67
Constant Section (CS) Bearings KB050CP0 dimension drawing
Download DWG Download PDF

Features

How Does KB050CP0 Bearing Reduce Friction?

KB050CP0 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its brass cage maintains proper ball alignment, reducing wear and enhancing efficiency.
Designed for radial loads, it handles up to 933 lbf dynamic radial load while maintaining precision.
The ABEC-1 tolerance class ensures consistent performance in various applications.

Application

Industrial Uses of KB050CP0 Bearing
KB050CP0 Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The open seal type allows for easy lubrication, ensuring smooth operation in industrial settings.

Where Is KB050CP0 Bearing Used?
You’ll often find KB050CP0 Bearing in robotics, particularly in articulated arms where precise radial load handling is needed. Its brass cage adds durability, making it reliable for repetitive movements.

Built for Heavy-Duty Use: KB050CP0 Bearing
KB050CP0 Bearing works well in conveyor systems, handling radial loads efficiently even in tight spaces. The chrome steel construction ensures it can withstand continuous use in demanding environments.

Automotive vs Aerospace: Applications of KB050CP0 Bearing
In automotive applications, KB050CP0 Bearing fits well in steering mechanisms due to its compact size. For aerospace, its lightweight design makes it suitable for instrumentation panels.

Key Fields for KB050CP0 Bearing
KB050CP0 Bearing is a go-to for medical imaging devices, where precision and reliability are critical. The ABEC-1 tolerance ensures consistent performance in high-accuracy equipment.
