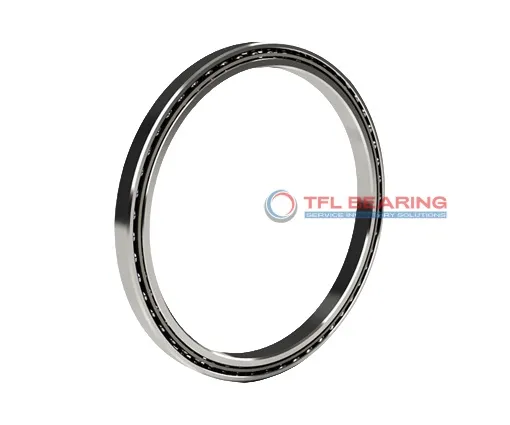

Constant Section (CS) Bearings KA047XP3

Constant Section (CS) Bearings KA047XP3

The KA047XP3 is a slim, open-type ball bearing with a 4.75″ bore and 5.25″ outer diameter, made from sturdy chrome steel. Its compact 0.25″ width makes it ideal for space-saving applications, while handling radial loads up to 834 lbf and thrust loads up to 1350 lbf.

The brass cage ensures smooth operation, and its ABEC 3F tolerance class offers reliable precision. This bearing works well in temperatures ranging from -30°C to 110°C, suitable for various industrial environments.

Designed for four-point contact, it efficiently manages moment loads up to 1 ft-lbf. The KA047XP3 is interchangeable with KAYDON bearings, providing a practical replacement option. Perfect for robotics or machinery where slim profiles and precise movement are needed.

Weighing just 0.23 lbs, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe choice for diverse applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KA047XP3
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.75"
  • Bore Dia Tolerance -0.0010" – 0"
  • Outer Dia 5.25"
  • Outer Dia Tolerance -0.0008" – 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Open Bearings
  • Series KA 1/4" x 1/4"
  • Tolerance Class ABEC 3F
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 4.936"
  • Internal Diameter On Outer Ring (Small Side Face) 5.064"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 834 lbf
  • Static Radial Load 1520 lbf
  • Static Thrust Load 3790 lbf
  • Static Moment 3790 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 1 lbf
  • Dynamic Thrust Load 1350 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.23 lbs
  • price（$） 155.5
Constant Section (CS) Bearings KA047XP3 dimension drawing
Download DWG Download PDF

Features

How Does KA047XP3 Bearing Handle Heavy Loads?

KA047XP3 Bearing is crafted with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 834 lbf, ensuring reliable performance in various applications.
The brass cage maintains ball alignment, reducing friction and extending service life.
With a static thrust load of 3790 lbf, it delivers durability and efficiency in demanding conditions.

Why Choose KA047XP3 Bearing for Precision Tasks?

KA047XP3 Bearing features a precise ABEC 3F tolerance class, ensuring accuracy in high-performance applications.
The four-point contact design allows smooth operation under combined radial and thrust loads.
Its thin-section construction saves space without compromising strength.
The chrome steel materials provide excellent wear resistance, making it suitable for precision tasks.

Engineered for Reliability: KA047XP3 Bearing

KA047XP3 Bearing is built with chrome steel components, enhancing its durability and load-bearing capacity.
The brass cage ensures smooth operation by keeping the balls properly aligned.
It operates efficiently within a temperature range of -30°C to 110°C.
With a static moment load rating of 3790 lbf, it excels in demanding environments.

What Makes KA047XP3 Bearing Suitable for High-Temperature Applications?

KA047XP3 Bearing performs reliably in temperatures ranging from -30°C to 110°C.
The chrome steel construction resists wear and maintains stability under thermal stress.
Its brass cage ensures consistent performance even in fluctuating conditions.
This makes KA047XP3 Bearing ideal for applications exposed to varying temperatures.

Optimized for Efficiency: KA047XP3 Bearing

KA047XP3 Bearing’s thin-section design reduces weight while maintaining strength.
The four-point contact feature allows it to handle combined loads efficiently.
Its chrome steel rings and balls ensure long-lasting performance.
With a dynamic thrust load of 1350 lbf, it balances efficiency and durability.

Application

Key Fields for KA047XP3 Bearing
KA047XP3 Bearing is commonly used in robotics, especially for joints requiring compact design and precise movement. Its thin section construction saves space without compromising load capacity.

In aerospace applications, KA047XP3 Bearing handles moderate radial and thrust loads in control systems. The brass cage ensures smooth operation even under varying temperatures.

For medical imaging devices, KA047XP3 Bearing’s ABEC 3F tolerance provides the necessary precision. The chrome steel rings offer durability in high-rotation scenarios.

Automotive steering systems benefit from KA047XP3 Bearing’s four-point contact design. It supports both radial and moment loads effectively in tight spaces.

Industrial automation often relies on KA047XP3 Bearing for conveyor belt guides. Its lightweight construction reduces energy consumption while maintaining reliability.
