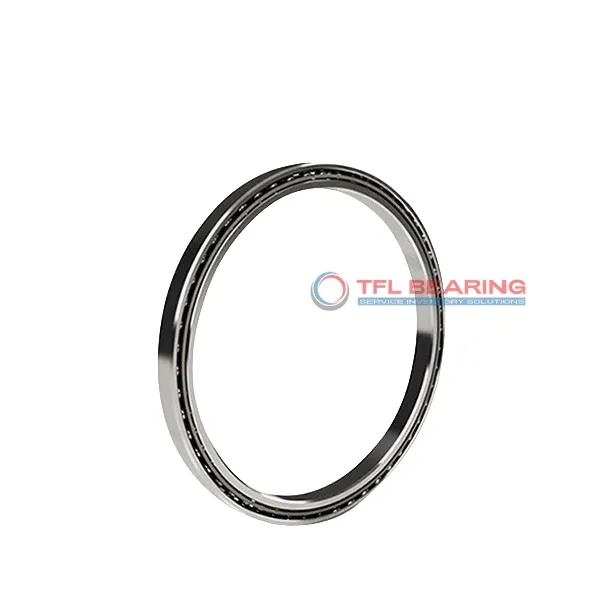

Constant Section (CS) Bearings KA025CP0

Constant Section (CS) Bearings KA025CP0

Performance Features of KA025CP0 Bearing

KA025CP0 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 442 lbf, making it suitable for various applications.
The brass cage ensures smooth ball movement, enhancing performance and reducing wear.
With a thin-section design, it saves space while maintaining strength and durability.

How Is KA025CP0 Bearing Engineered for Reliability?

KA025CP0 Bearing features precise ABEC-1 tolerance, ensuring consistent performance in radial applications.
The chrome steel construction provides resistance to wear, extending the bearing’s service life.
Its open design allows for easy lubrication, reducing maintenance needs.
The thin-section profile makes it ideal for compact installations without sacrificing load capacity.

Designed for Durability: KA025CP0 Bearing

KA025CP0 Bearing’s chrome steel components resist wear, even under continuous use.
The brass cage maintains ball alignment, promoting smooth operation and reducing friction.
With a static radial load capacity of 830 lbf, it handles demanding conditions effectively.
Its compact 0.25″ width makes it perfect for space-constrained applications.

Steel vs Ceramic Bearings: Strengths of KA025CP0 Bearing

KA025CP0 Bearing uses high-quality chrome steel for rings and balls, ensuring strength and durability.
This material choice provides excellent load capacity and resistance to wear.
The brass cage further enhances performance by keeping the balls properly aligned.
Its thin-section design offers a balance of space efficiency and reliable operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KA025CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 2.5"
  • Bore Dia Tolerance -0.0006"–0"
  • Outer Dia 3"
  • Outer Dia Tolerance -0.0005"–0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Open Bearings
  • Series KA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.686"
  • Internal Diameter On Outer Ring (Small Side Face) 2.814"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 442 lbf
  • Static Radial Load 830 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1094 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.13 lbs
  • price（$） 40.31
Constant Section (CS) Bearings KA025CP0 dimension drawing
Download DWG Download PDF

Features

Key Fields for KA025CP0 Bearing
KA025CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising performance. The open seal type allows for easy lubrication, ensuring smooth operation in continuous-use environments.

In medical imaging devices, KA025CP0 Bearing provides reliable radial load support due to its chrome steel construction. Its brass cage adds durability, making it suitable for high-precision applications like CT scanners.

For aerospace applications, KA025CP0 Bearing’s lightweight design and ABEC-1 tolerance make it ideal for instrumentation and control systems. The inch sizing ensures compatibility with a variety of North American and international aerospace components.

In consumer electronics, KA025CP0 Bearing can be found in high-end printers and scanners, where its slim profile and smooth operation enhance device performance. The temperature range also makes it adaptable to different operating conditions.

Application

Key Fields for KA025CP0 Bearing
KA025CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising performance. The open seal type allows for easy lubrication, ensuring smooth operation in continuous-use environments.

In medical imaging devices, KA025CP0 Bearing provides reliable radial load support due to its chrome steel construction. Its brass cage adds durability, making it suitable for high-precision applications like CT scanners.

For aerospace applications, KA025CP0 Bearing’s lightweight design and ABEC-1 tolerance make it ideal for instrumentation and control systems. The inch sizing ensures compatibility with a variety of North American and international aerospace components.

In consumer electronics, KA025CP0 Bearing can be found in high-end printers and scanners, where its slim profile and smooth operation enhance device performance. The temperature range also makes it adaptable to different operating conditions.
