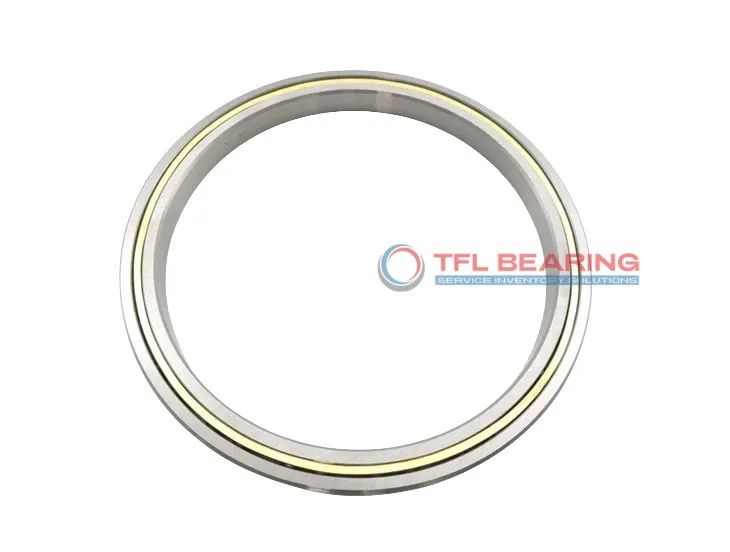

Constant Section (CS) Bearings K34013AR0

Constant Section (CS) Bearings K34013AR0

The K34013AR0 is a constant section angular contact bearing, measuring 340mm in bore diameter and 366mm in outer diameter, with a slim 13mm width. Made from chrome steel, it’s built to handle both radial and thrust loads efficiently.

With a 30° contact angle, it supports dynamic radial loads up to 4361 lbf and static thrust loads of 11060 lbf. Its open design and brass cage ensure smooth operation and easy maintenance.

This bearing is interchangeable with KAYDON models, making it a versatile choice for replacements. Ideal for applications requiring precise angular contact, such as robotics or medical equipment.

Weighing 1.02kg, it’s lightweight yet durable. Compliant with RoHS standards, it operates in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K34013AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 340 mm
  • Bore Dia Tolerance -0.036mm to 0
  • Outer Dia 366 mm
  • Outer Dia Tolerance -0.036mm to 0
  • Width 13 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 13 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 349.7 mm
  • Internal Diameter On Outer Ring (Small Side Face) 356.3 mm
  • Internal Diameter On Outer Ring (Large Side Face) 359.2 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 4361 lbf
  • Static Radial Load 13697 lbf
  • Static Thrust Load 11060 lbf
  • Static Moment 39543 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 5644 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.02 Kg
  • price（$） 440.31
Constant Section (CS) Bearings K34013AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of K34013AR0 Bearing

K34013AR0 Bearing is crafted with chrome steel rings and balls, offering robust angular contact performance.
Its 30° contact angle ensures efficient load distribution, enhancing stability during operation.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
With a dynamic radial load capacity of 4361 lbf, it handles demanding applications reliably.

K34013AR0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of K34013AR0 Bearing
K34013AR0 Bearing is commonly used in industrial machinery where space is limited but high precision is needed, such as robotic arms and CNC machines. Its thin-section design makes it ideal for applications requiring compact yet robust solutions.

What Makes K34013AR0 Bearing a Preferred Choice?
In automation systems, K34013AR0 Bearing excels in handling angular contact loads, ensuring smooth operation in equipment like conveyor belts. The brass cage adds durability, making it suitable for continuous use.

Built for Heavy-Duty Use: K34013AR0 Bearing
For automotive applications, K34013AR0 Bearing supports components like steering systems, where its high static load capacity ensures reliability. The chrome steel construction also resists wear in demanding conditions.

Medical vs Industrial: Where K34013AR0 Bearing Excels
In medical imaging devices, K34013AR0 Bearing provides precise movement due to its tight tolerances. Meanwhile, in industrial settings, it handles moment loads effectively, making it versatile across sectors.
