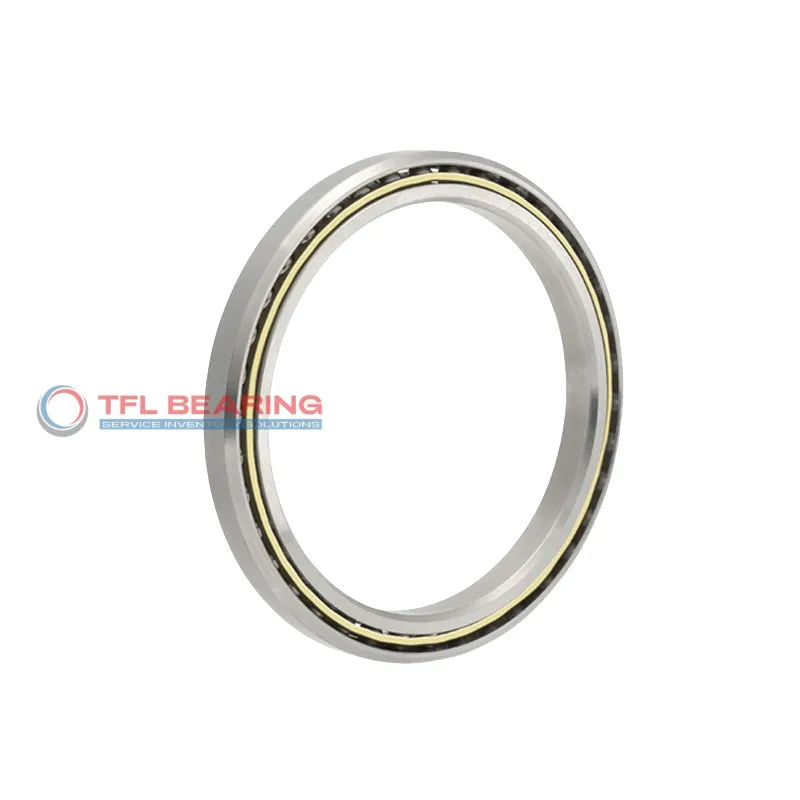

Constant Section (CS) Bearings K16008AR0

Constant Section (CS) Bearings K16008AR0

The K16008AR0 is a slim metric bearing with a 160mm bore and 176mm outer diameter, crafted from durable chrome steel. Its 8mm width makes it ideal for compact spaces, while handling radial loads up to 1534 lbf and thrust loads up to 3728 lbf.

With a 30° contact angle and brass cage, it offers smooth angular contact performance. The open design allows easy lubrication, and it operates reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with KAYDON models, perfect for precision applications like robotics or medical equipment. Weighing just 0.2kg, it’s lightweight yet robust, meeting ABEC-1 tolerance standards for consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K16008AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 176 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 165.9 mm
  • Internal Diameter On Outer Ring (Small Side Face) 170.1 mm
  • Internal Diameter On Outer Ring (Large Side Face) 172.2 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1534 lbf
  • Static Radial Load 4290 lbf
  • Static Thrust Load 3728 lbf
  • Static Moment 12385 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2267 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.2 Kg
  • price（$） 146.91
Constant Section (CS) Bearings K16008AR0 dimension drawing
Download DWG Download PDF

Features

How Is K16008AR0 Bearing Engineered for Reliability?

K16008AR0 Bearing features a single-row angular contact design, optimised for precise load distribution.
Its 30° contact angle enhances stability, making it suitable for applications requiring high accuracy.

The chrome steel rings and balls provide durability, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 1534 lbf, it handles demanding conditions effectively.

K16008AR0 Bearing operates within a temperature range of -30°C to 110°C, ensuring performance in varied environments.
Its ABEC-1 tolerance class guarantees consistent precision for industrial applications.

The open seal design simplifies maintenance, reducing downtime and operational costs.
Its thin-section construction saves space without compromising strength or reliability.

Application

Industrial Uses of K16008AR0 Bearing
K16008AR0 Bearing is commonly used in industrial machinery where space is limited but precision is key, such as robotic arms and CNC machines. Its thin-section design ensures it fits neatly into compact assemblies without compromising performance.

Where Is K16008AR0 Bearing Used?
You’ll often find K16008AR0 Bearing in automation systems, particularly in applications requiring smooth angular contact, like conveyor belt guides. Its brass cage adds durability, making it reliable for continuous operation.

Built for Heavy-Duty Use: K16008AR0 Bearing
K16008AR0 Bearing handles heavy loads in equipment like packaging machines, thanks to its chrome steel construction. The 30° contact angle provides stability, even under significant radial and thrust loads.

Automotive vs Aerospace: Applications of K16008AR0 Bearing
In automotive systems, K16008AR0 Bearing supports steering mechanisms, where its precision ensures smooth handling. For aerospace, its lightweight design and reliability make it suitable for instrumentation panels.

Perfect Fit for Automation: K16008AR0 Bearing
K16008AR0 Bearing shines in automated production lines, particularly in pick-and-place machines. Its open seal design allows for easy lubrication, keeping operations running smoothly with minimal downtime.
