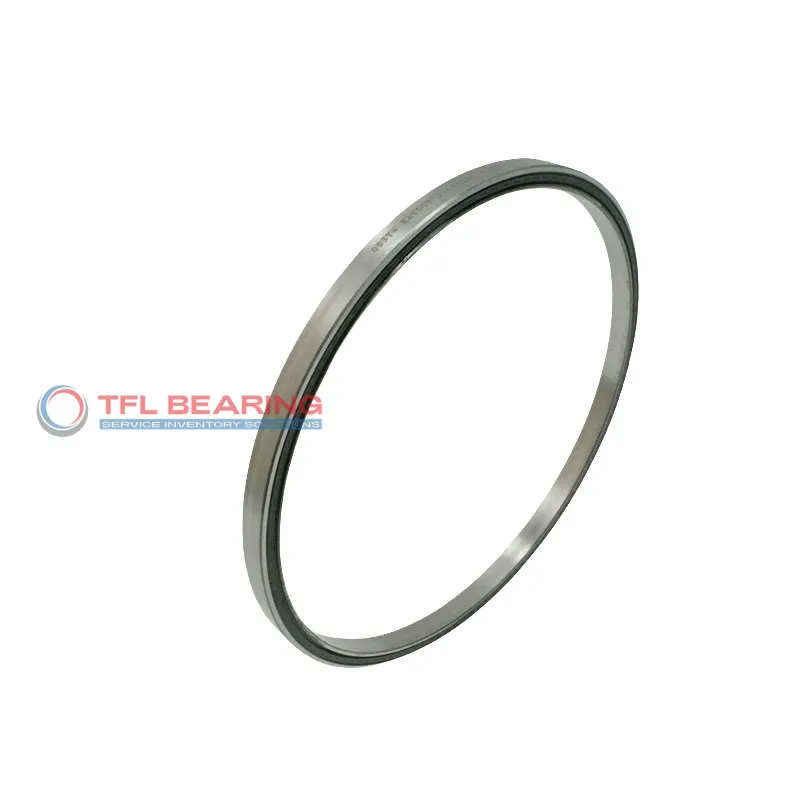

Constant Section (CS) Bearings JU070CP0

Constant Section (CS) Bearings JU070CP0

The JU070CP0 is a sealed, single-row ball bearing with a 7-inch bore and 7.75-inch outer diameter, designed for radial loads. Its slim 0.5-inch width makes it ideal for space-constrained applications.

Made from chrome steel with a brass cage, it handles dynamic radial loads up to 1457 lbf and operates smoothly in temperatures from -30°C to 110°C. The sealed design keeps lubrication in and contaminants out.

This bearing is interchangeable with KAYDON models, offering a reliable replacement option. It’s well-suited for machinery where thin-section bearings are needed, such as robotics or precision equipment.

Weighing just 0.93 lbs, it’s lightweight yet durable. Compliant with RoHS standards, it’s a practical choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JU070CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 7"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7.75"
  • Outer Dia Tolerance -0.0012"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JU 1/2" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 7.150"
  • Internal Diameter On Outer Ring (Small Side Face) 7.537"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1457 lbf
  • Static Radial Load 3550 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2823 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.93 lbs
  • price（$） 167.31
Constant Section (CS) Bearings JU070CP0 dimension drawing
Download DWG Download PDF

Features

How Does JU070CP0 Bearing Reduce Friction?

JU070CP0 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation with minimal friction.
The brass cage maintains proper ball alignment, enhancing efficiency and reducing wear.
With a dynamic radial load capacity of 1457 lbf, it performs reliably in various applications.
Its ABEC-1 tolerance class ensures consistent precision for smooth and quiet performance.

Application

Industrial Uses of JU070CP0 Bearing
JU070CP0 Bearing is commonly used in industrial machinery where space is limited but precision is still required, such as robotic arms and automation equipment. Its thin-section design makes it ideal for applications needing compact yet reliable performance.

Where Is JU070CP0 Bearing Used?
In automation systems, JU070CP0 Bearing provides smooth rotation for components like conveyor belts and assembly line mechanisms. The sealed design helps keep out contaminants, ensuring long service life even in dusty environments.

Built for Heavy-Duty Use: JU070CP0 Bearing
JU070CP0 Bearing handles radial loads efficiently in machinery like packaging equipment and printing presses. The brass cage adds durability, making it suitable for continuous operation in demanding settings.

Automotive vs Aerospace: Applications of JU070CP0 Bearing
In automotive applications, JU070CP0 Bearing can be found in steering systems and small gearboxes where its compact size is beneficial. For aerospace, it’s used in instrumentation and control systems due to its precision and reliability.

Perfect Fit for Automation: JU070CP0 Bearing
JU070CP0 Bearing works well in 3D printers and CNC machines, where its thin profile and smooth operation are key. The chrome steel construction ensures it can handle repetitive movements without wearing out quickly.
