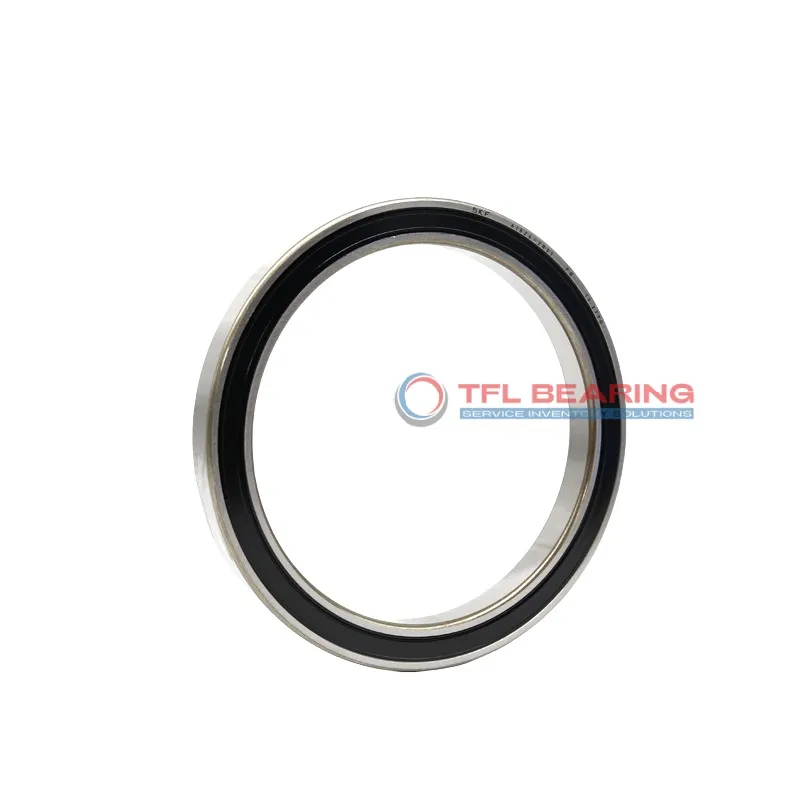

Constant Section (CS) Bearings JHA15XL0

Constant Section (CS) Bearings JHA15XL0

The JHA15XL0 is a compact sealed bearing measuring 1.5″ in bore and 1.875″ in outer diameter, with a slim width of just 0.25″. Made from chrome steel, it’s designed for four-point contact and handles radial loads up to 296 lbf.

Its sealed construction keeps dirt out and lubrication in, while the nylon cage ensures smooth operation. The bearing works in temperatures from -30°C to 110°C and meets RoHS standards.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing only 0.052 lbs, it’s lightweight yet sturdy. Its ABEC-1 tolerance ensures reliable performance without unnecessary complexity.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JHA15XL0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 1.5"
  • Bore Dia Tolerance -0.0005"– 0"
  • Outer Dia 1.875"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JHA 3/16" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 1.608"
  • Internal Diameter On Outer Ring (Small Side Face) 1.774"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 296 lbf
  • Static Radial Load 400 lbf
  • Static Thrust Load 1000 lbf
  • Static Moment 340 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 187 lbf
  • Dynamic Thrust Load 460 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.052 lbs
  • price（$） 52.41

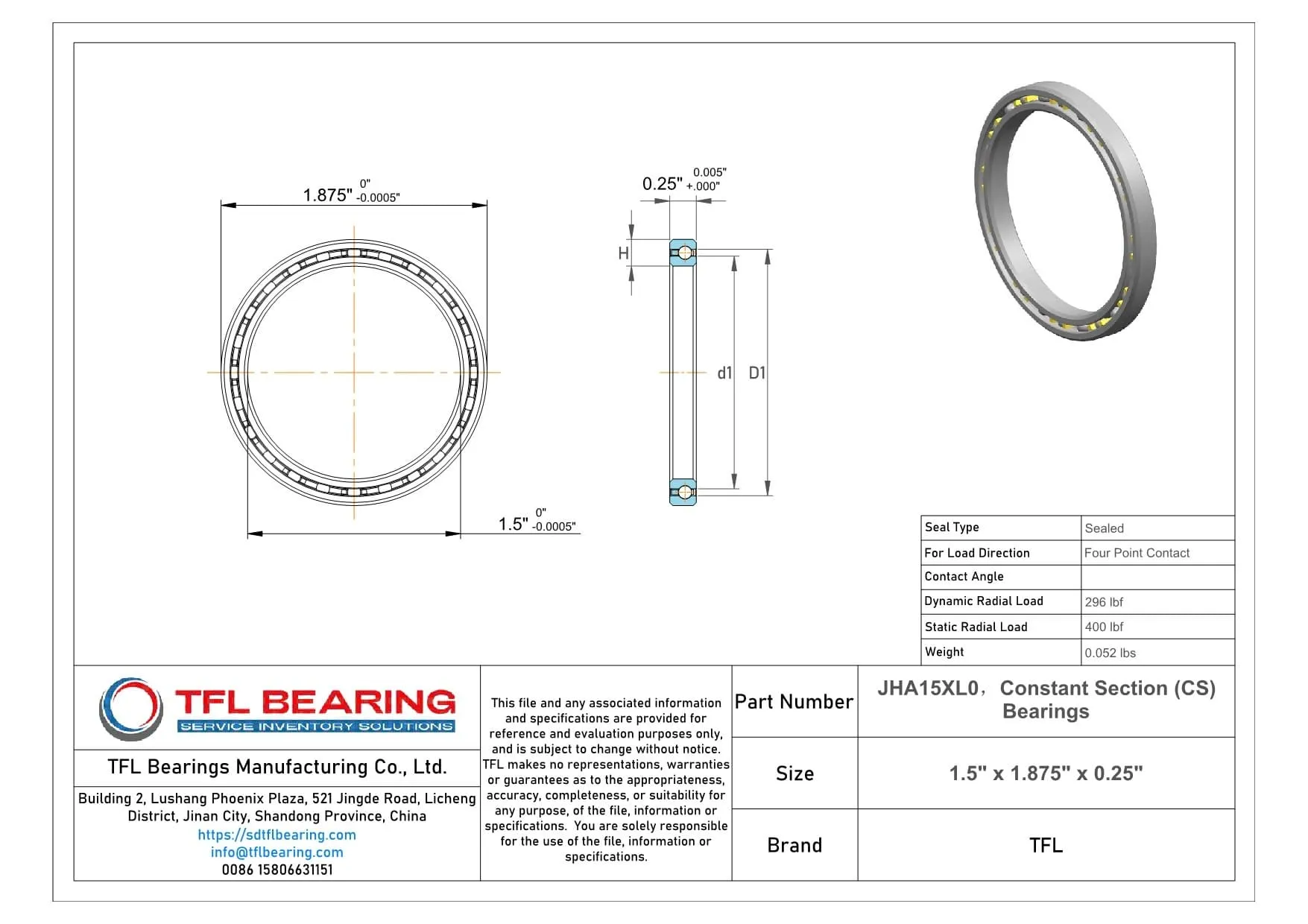

Constant Section (CS) Bearings JHA15XL0 dimension drawing
Download DWG Download PDF

Features

How Does JHA15XL0 Bearing Handle Heavy Loads?

JHA15XL0 Bearing features chrome steel rings and balls, providing strong resistance to heavy loads.
Its dynamic radial load capacity reaches 296 lbf, ensuring reliable performance in demanding applications.
The nylon cage keeps the balls aligned, reducing wear and extending service life.
With a static thrust load of 1000 lbf, it balances durability and efficiency.

Engineered for Precision: JHA15XL0 Bearing

JHA15XL0 Bearing is designed with a thin section for precision applications.
The sealed construction protects against contaminants, ensuring smooth operation.
Its ABEC-1 tolerance class guarantees consistent performance in various conditions.
The chrome steel materials enhance durability and resistance to wear.

What Makes JHA15XL0 Bearing Suitable for High-Temperature Applications?

JHA15XL0 Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
The chrome steel construction ensures stability and performance under thermal stress.
Its sealed design prevents lubricant loss, maintaining smooth operation.
This makes it ideal for environments with fluctuating temperatures.

Application

Common Applications of JHA15XL0 Bearing
JHA15XL0 Bearing is widely used in robotics, especially in compact robotic arms where space is limited but precision is key. Its thin section design ensures smooth movement without adding bulk.

In aerospace applications, JHA15XL0 Bearing provides reliable performance in control systems and actuators. The sealed construction helps protect against contaminants in demanding environments.

For medical devices like surgical tools, JHA15XL0 Bearing’s nylon cage reduces friction and noise. This makes it ideal for equipment where quiet operation is essential.

In automation systems, JHA15XL0 Bearing supports conveyor belts and sorting mechanisms. Its inch sizing makes it compatible with many North American industrial setups.
