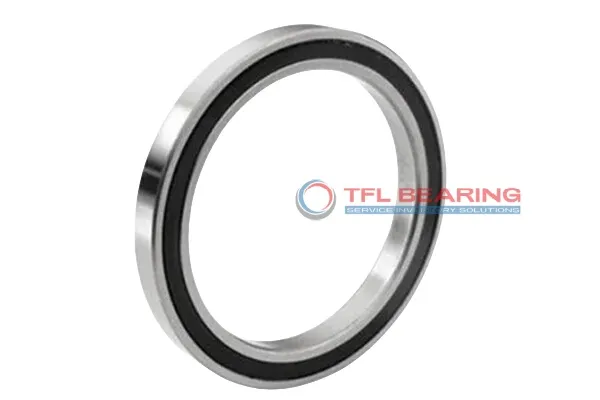

Constant Section (CS) Bearings JG250XP0

Constant Section (CS) Bearings JG250XP0

The JG250XP0 is a sealed, thin-section ball bearing with a 25″ bore and 27″ outer diameter, crafted from durable chrome steel. It handles dynamic radial loads up to 19,360 lbf and static thrust loads up to 106,700 lbf, making it robust for demanding applications.

Its brass cage and sealed design ensure smooth operation and protection against contaminants. The bearing operates efficiently in temperatures ranging from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with KAYDON bearings, offering a reliable alternative for replacements. Ideal for machinery requiring precise, four-point contact and thin-section bearings, such as robotics or aerospace equipment.

Weighing 19.5 lbs, it balances strength and lightweight design. Compliant with RoHS standards, it’s a safe and dependable choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG250XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 25"
  • Bore Dia Tolerance -0.0018"- 0"
  • Outer Dia 27"
  • Outer Dia Tolerance -0.0018"- 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 25.554"
  • Internal Diameter On Outer Ring (Small Side Face) 26.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 19360 lbf
  • Static Radial Load 42680 lbf
  • Static Thrust Load 106700 lbf
  • Static Moment 554900 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 188 lbf
  • Dynamic Thrust Load 33780 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 19.5 lbs
  • price（$） 1687.04
Constant Section (CS) Bearings JG250XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JG250XP0 Bearing

JG250XP0 Bearing is built with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 19,360 lbf, making it suitable for demanding applications.

The brass cage ensures smooth operation by keeping the balls properly aligned.
With a width of just 1″, it fits well in compact spaces without compromising performance.

JG250XP0 Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its sealed design protects against contaminants, reducing maintenance needs.

Application

Industrial Uses of JG250XP0 Bearing
JG250XP0 Bearing is commonly used in industrial machinery where space is limited but high load capacity is needed, such as robotic arms and conveyor systems. Its thin-section design makes it ideal for compact applications without sacrificing performance.

Where Is JG250XP0 Bearing Used?
You’ll often find JG250XP0 Bearing in automation equipment, particularly in systems requiring precise movement and low friction. The brass cage ensures smooth operation even under heavy loads, making it a reliable choice for repetitive tasks.

Built for Heavy-Duty Use: JG250XP0 Bearing
JG250XP0 Bearing handles high radial and thrust loads effortlessly, making it suitable for applications like turntables and indexing tables. Its sealed design keeps contaminants out, extending its lifespan in harsh environments.

Automotive vs Aerospace: Applications of JG250XP0 Bearing
In automotive systems, JG250XP0 Bearing is used in steering mechanisms and gearboxes due to its durability. For aerospace, its lightweight construction and high load capacity make it a fit for control systems and landing gear assemblies.

Perfect Fit for Automation: JG250XP0 Bearing
JG250XP0 Bearing shines in automated production lines, where its precision and reliability keep operations running smoothly. The chrome steel construction ensures it can handle continuous use without wear issues.
