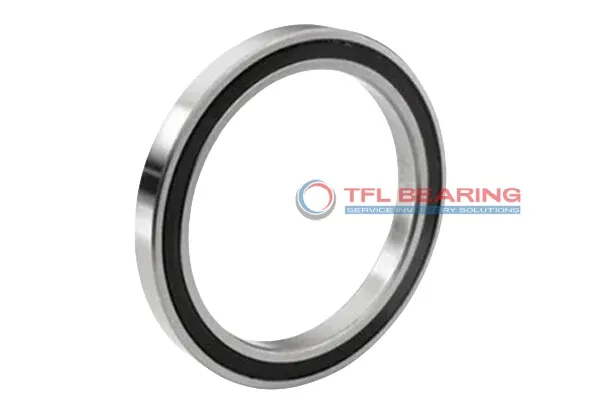

Constant Section (CS) Bearings JG120CP0

Constant Section (CS) Bearings JG120CP0

The JG120CP0 is a sealed radial ball bearing with a 12″ bore and 14″ outer diameter, featuring a slim 1″ width. Made from chrome steel with a brass cage, it’s built for durability and smooth operation.

This bearing handles radial loads up to 10074 lbf and is pre-lubricated for easy maintenance. Its sealed design keeps contaminants out, extending its lifespan in harsh environments.

With ABEC-1 tolerance and minimal radial clearance, it offers reliable performance for precision applications. Ideal for use in robotics, medical equipment, or any space-constrained machinery.

Weighing 9.3 lbs, it’s a sturdy yet compact choice. Compliant with RoHS standards, it’s interchangeable with KAYDON bearings for hassle-free replacements. Works well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG120CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 12"
  • Outer Dia 14"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 12.554"
  • Internal Diameter On Outer Ring (Small Side Face) 13.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 10074 lbf
  • Static Radial Load 21340 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 14133 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 9.3 lbs
  • price（$） 336.27
Constant Section (CS) Bearings JG120CP0 dimension drawing
Download DWG Download PDF

Features

How Does JG120CP0 Bearing Reduce Friction?

JG120CP0 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation with minimal friction.
The brass cage maintains proper ball alignment, reducing wear and enhancing efficiency.

With a dynamic radial load capacity of 10,074 lbf, it handles demanding radial loads reliably.
Its ABEC-1 tolerance class ensures consistent performance in precision applications.

The lubricated design further reduces friction, extending the bearing’s service life.
It operates efficiently within a temperature range of -30°C to 110°C, making it versatile for various conditions.

Application

Common Applications of JG120CP0 Bearing
JG120CP0 Bearing is widely used in industrial machinery, especially in applications where space is limited but radial load capacity is essential, such as robotic arms and conveyor systems. Its sealed design helps keep contaminants out, ensuring longer service life in demanding environments.

In automation systems, JG120CP0 Bearing provides smooth rotation for components like rotary tables and indexing devices. The brass cage adds durability, making it suitable for high-speed operations without compromising performance.

For medical imaging equipment, JG120CP0 Bearing’s precise construction ensures accurate movement in devices like CT scanners. The chrome steel rings and balls offer reliable performance, even under continuous use.

In consumer electronics, JG120CP0 Bearing can be found in high-end printers and scanners, where its thin section design saves space without sacrificing load capacity. The lubricated seals reduce maintenance needs, making it a practical choice for everyday devices.
