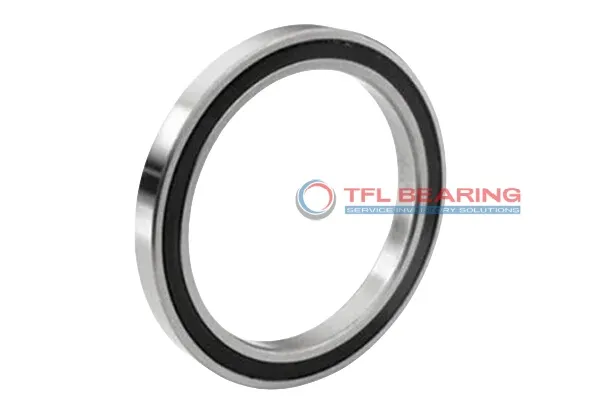

Constant Section (CS) Bearings JG100XP0

Constant Section (CS) Bearings JG100XP0

The JG100XP0 is a sealed, thin-section ball bearing measuring 10″ by 12″ with a 1″ width, made from sturdy chrome steel and brass. It handles dynamic radial loads up to 12147 lbf and dynamic thrust loads up to 19040 lbf, making it suitable for demanding applications.

Its sealed design keeps lubrication in and contaminants out, ensuring smooth operation. The brass cage adds durability, while the ABEC-1 tolerance class provides reliable performance.

This bearing is interchangeable with KAYDON models, offering flexibility for replacements. Ideal for machinery requiring precise, thin-section bearings, such as robotics or medical equipment.

With a temperature range of -30°C to 110°C and RoHS compliance, it’s both versatile and safe for various industrial uses. Weighing 7.9 lbs, it balances strength and lightweight design.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG100XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 10"
  • Outer Dia 12"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 10.554"
  • Internal Diameter On Outer Ring (Small Side Face) 11.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 12147 lbf
  • Static Radial Load 18060 lbf
  • Static Thrust Load 45140 lbf
  • Static Moment 99320 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 50 lbf
  • Dynamic Thrust Load 19040 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 7.9 lbs
  • price（$） 333.62

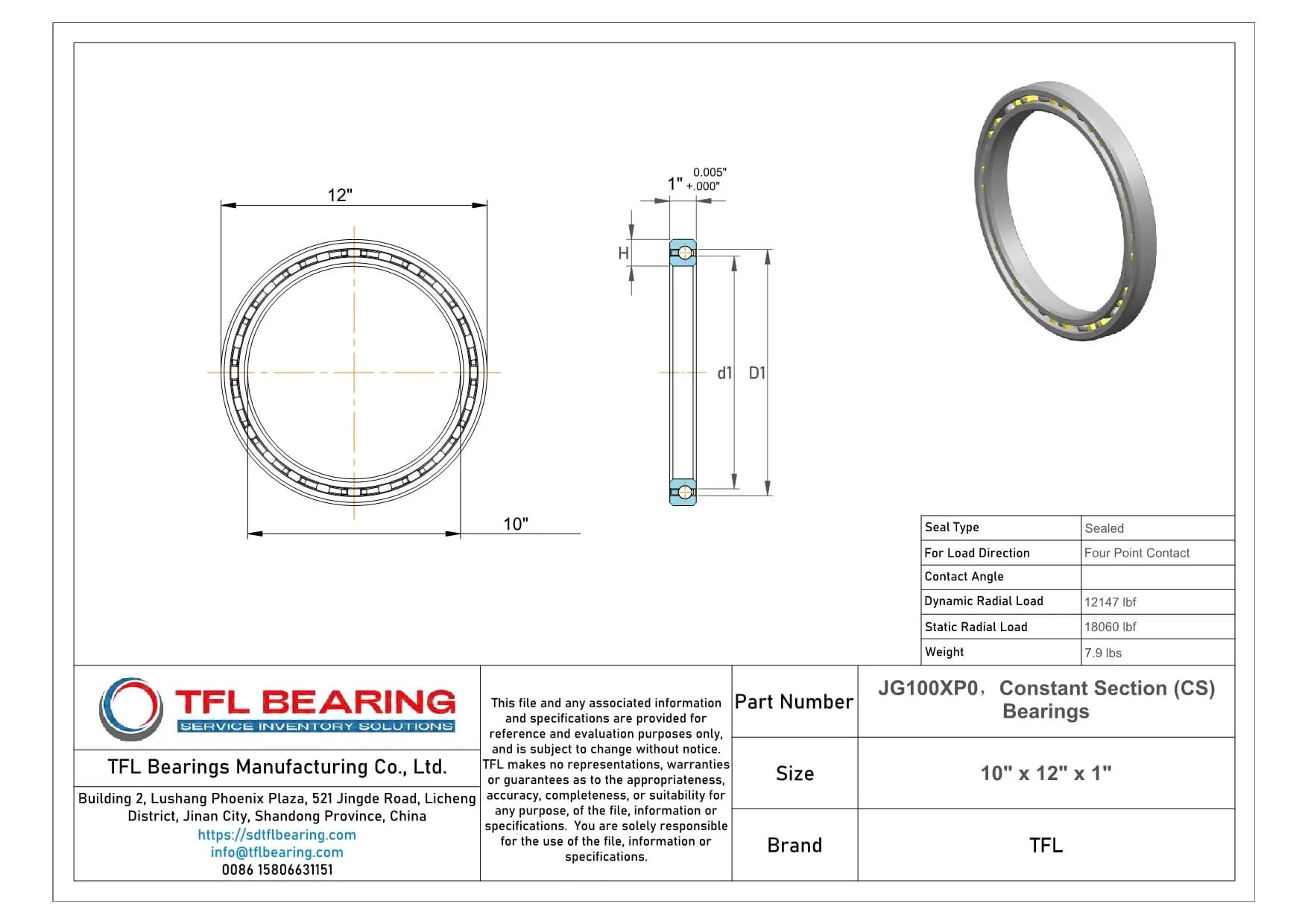

Constant Section (CS) Bearings JG100XP0 dimension drawing
Download DWG Download PDF
