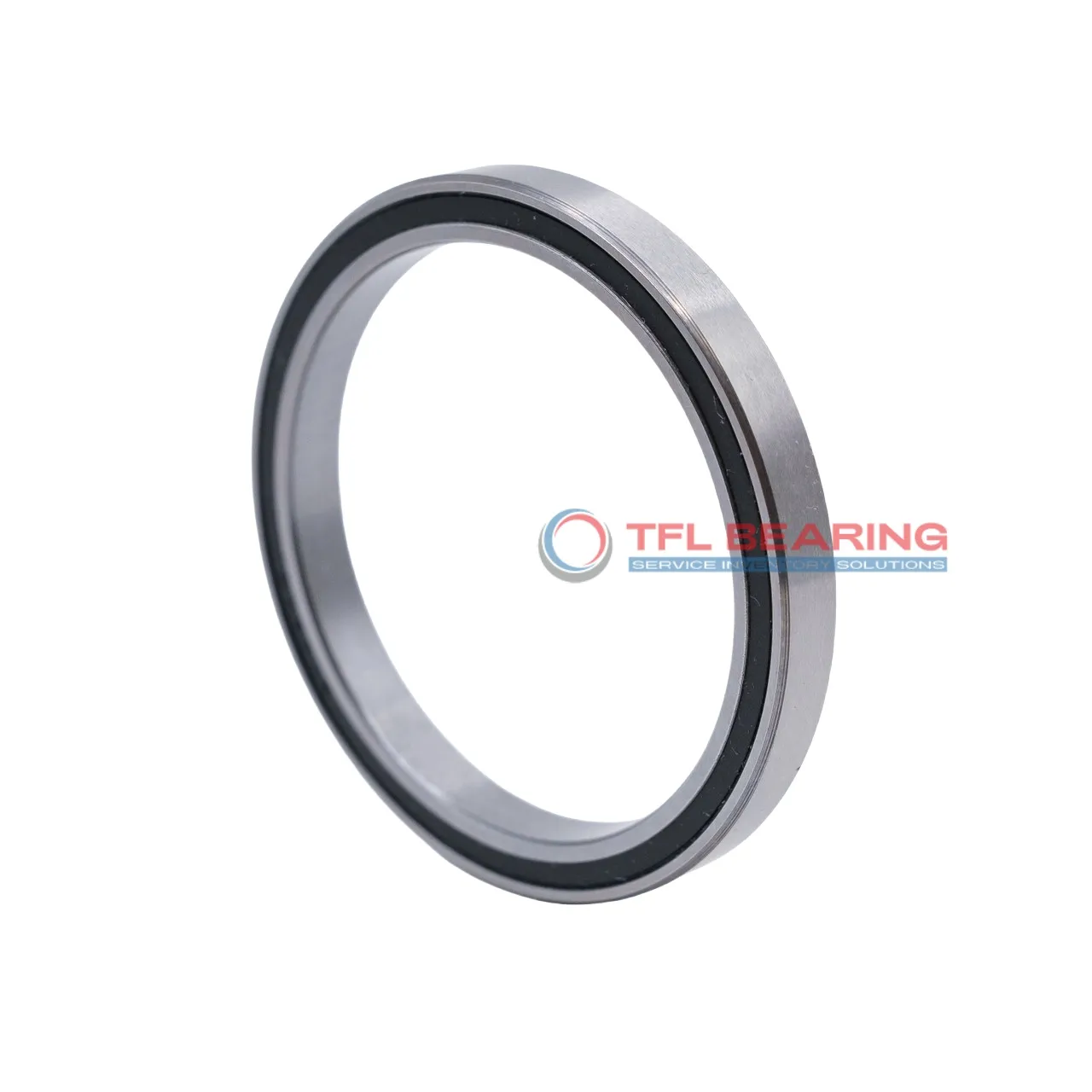

Constant Section (CS) Bearings JB025XP0

Constant Section (CS) Bearings JB025XP0

How Is JB025XP0 Bearing Engineered for Reliability?

JB025XP0 Bearing features a sealed design, protecting it from dust and moisture in harsh environments.
Its chrome steel rings and balls provide strong resistance to wear, ensuring long-lasting performance.
The brass cage maintains proper ball alignment, reducing friction and extending service life.
With a dynamic radial load capacity of 848 lbf, it handles demanding applications with ease.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JB025XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2.5"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 3.125"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.699"
  • Internal Diameter On Outer Ring (Small Side Face) 2.925"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 848 lbf
  • Static Radial Load 1140 lbf
  • Static Thrust Load 2840 lbf
  • Static Moment 1600 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 895 lbf
  • Dynamic Thrust Load 1290 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.19 lbs
  • price（$） 57.55
Constant Section (CS) Bearings JB025XP0 dimension drawing
Download DWG Download PDF

Features

Industrial Uses of JB025XP0 Bearing
JB025XP0 Bearing is commonly used in robotics and automation systems, where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

What Makes JB025XP0 Bearing a Preferred Choice?
In aerospace applications, JB025XP0 Bearing’s precision ABEC-1 rating and brass cage provide smooth operation for control mechanisms. Its inch sizing makes it compatible with many North American aircraft components.

Perfect Fit for Automation: JB025XP0 Bearing
For packaging machinery, JB025XP0 Bearing handles moderate radial and thrust loads efficiently. The chrome steel rings and balls offer good wear resistance in high-cycle operations.

Automotive vs Aerospace: Applications of JB025XP0 Bearing
In automotive steering systems, JB025XP0 Bearing’s moment load capacity helps maintain alignment under stress. For satellite mechanisms, its lightweight design and temperature tolerance (-30°C to 110°C) prove equally valuable.

Where Is JB025XP0 Bearing Used?
Medical imaging devices benefit from JB025XP0 Bearing’s smooth rotation and sealed lubrication. The 0.3125″ width fits neatly into compact diagnostic equipment without sacrificing performance.

Application

Industrial Uses of JB025XP0 Bearing
JB025XP0 Bearing is commonly used in robotics and automation systems, where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

What Makes JB025XP0 Bearing a Preferred Choice?
In aerospace applications, JB025XP0 Bearing’s precision ABEC-1 rating and brass cage provide smooth operation for control mechanisms. Its inch sizing makes it compatible with many North American aircraft components.

Perfect Fit for Automation: JB025XP0 Bearing
For packaging machinery, JB025XP0 Bearing handles moderate radial and thrust loads efficiently. The chrome steel rings and balls offer good wear resistance in high-cycle operations.

Automotive vs Aerospace: Applications of JB025XP0 Bearing
In automotive steering systems, JB025XP0 Bearing’s moment load capacity helps maintain alignment under stress. For satellite mechanisms, its lightweight design and temperature tolerance (-30°C to 110°C) prove equally valuable.

Where Is JB025XP0 Bearing Used?
Medical imaging devices benefit from JB025XP0 Bearing’s smooth rotation and sealed lubrication. The 0.3125″ width fits neatly into compact diagnostic equipment without sacrificing performance.
