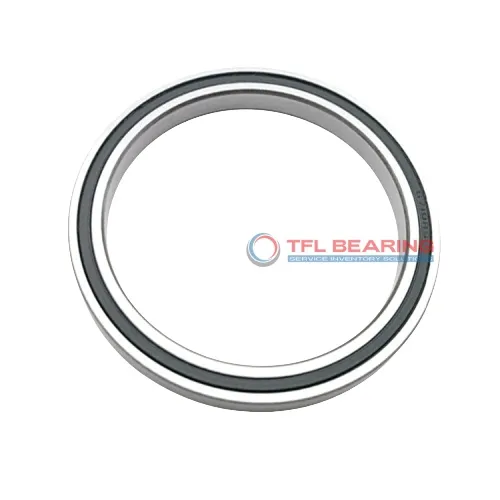

Constant Section (CS) Bearings JA040XP0

Constant Section (CS) Bearings JA040XP0

The JA040XP0 is a thin-section ball bearing with a 4-inch bore and 4.5-inch outer diameter, designed for four-point contact. Its compact width of just 0.25 inches makes it ideal for space-constrained applications. The sealed construction keeps lubrication in and contaminants out.

Made from chrome steel with a brass cage, it handles radial loads up to 756 lbf and thrust loads up to 1210 lbf. It operates smoothly in temperatures from -30°C to 110°C, suitable for various environments. The ABEC-1 tolerance ensures reliable performance without excessive precision demands.

This bearing is interchangeable with KAYDON models, offering a practical replacement option. Its Reali-Slim design is perfect for robotics or medical equipment where slim profiles are essential. Weighing only 0.19 lbs, it’s lightweight yet durable.

Pre-lubricated and RoHS compliant, it’s ready for installation straight out of the box. The sealed design reduces maintenance needs, making it a hassle-free choice for long-term use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JA040XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 4"
  • Bore Dia Tolerance -0.0008"– 0"
  • Outer Dia 4.5"
  • Outer Dia Tolerance -0.0006"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 4.148"
  • Internal Diameter On Outer Ring (Small Side Face) 4.356"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 756 lbf
  • Static Radial Load 1290 lbf
  • Static Thrust Load 3220 lbf
  • Static Moment 2740 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 1 lbf
  • Dynamic Thrust Load 1210 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.19 lbs
  • price（$） 70.52
Constant Section (CS) Bearings JA040XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JA040XP0 Bearing

JA040XP0 Bearing is built with chrome steel rings and balls, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 756 lbf, making it suitable for various applications.

The brass cage ensures smooth operation by keeping the balls properly aligned.
With a width of just 0.25″, JA040XP0 Bearing is ideal for space-constrained installations.

JA040XP0 Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its sealed design helps protect against contaminants, ensuring reliable performance.

Application

Where Is JA040XP0 Bearing Used?
JA040XP0 Bearing is commonly found in robotics, especially in compact robotic arms where space is limited but precision is key. Its thin-section design ensures smooth movement without adding bulk.

In aerospace applications, JA040XP0 Bearing supports control systems and actuators, thanks to its ability to handle both radial and thrust loads efficiently. The sealed design also protects against contaminants in demanding environments.

For medical imaging devices, JA040XP0 Bearing’s chrome steel construction offers reliability during high-precision rotations. The brass cage adds durability, making it suitable for frequent use.

In automation equipment like CNC machines, JA040XP0 Bearing ensures accurate positioning due to its tight tolerances. The inch sizing makes it a versatile choice for various industrial setups.
