Constant Section (CS) Bearings JA020CP0

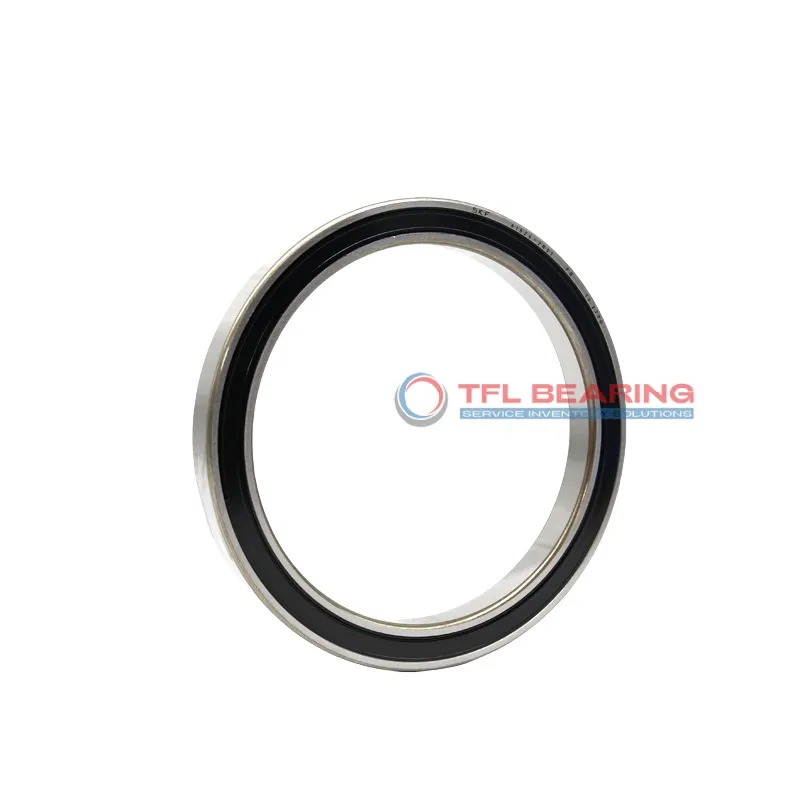

Constant Section (CS) Bearings JA020CP0

The JA020CP0 is a compact, sealed ball bearing with a 2″ bore and 2.5″ outer diameter, designed for radial loads. Its slim 0.25″ width makes it ideal for tight spaces, while the chrome steel construction ensures durability.

This bearing handles dynamic radial loads up to 393 lbf and operates smoothly in temperatures from -30°C to 110°C. The brass cage and sealed design reduce friction and protect against contaminants.

Its ABEC-1 tolerance and precise radial clearance (0.0000 – 0.0005″) ensure reliable performance. The bearing comes pre-lubricated for easy installation and maintenance.

Perfect for applications like robotics or small machinery where space is limited. Compliant with RoHS standards, it’s a lightweight option at just 0.1 lbs, interchangeable with KAYDON models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JA020CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 2.5"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.148"
  • Internal Diameter On Outer Ring (Small Side Face) 2.356"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 393 lbf
  • Static Radial Load 680 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1012 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.1 lbs
  • price（$） 47.35
Constant Section (CS) Bearings JA020CP0 dimension drawing
Download DWG Download PDF

Features

Why Choose JA020CP0 Bearing for Precision Tasks?

JA020CP0 Bearing features a thin-section design, making it ideal for applications where space is limited.
Its sealed construction keeps contaminants out, ensuring smooth and reliable operation.

The chrome steel rings and balls provide excellent durability, even under radial loads up to 393 lbf.
With ABEC-1 tolerance, JA020CP0 Bearing offers consistent performance for precision tasks.

Its brass cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
The temperature range of -30°C to 110°C ensures versatility in various operating conditions.

Application

Common Applications of JA020CP0 Bearing
JA020CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is JA020CP0 Bearing Used?
You’ll often find JA020CP0 Bearing in medical imaging devices, where its smooth operation and reliability are essential for accurate diagnostics. Its brass cage and chrome steel components provide durability in high-use scenarios.

Optimized for Performance: JA020CP0 Bearing
In consumer electronics like printers and scanners, JA020CP0 Bearing ensures quiet and efficient operation. The ABEC-1 tolerance class makes it suitable for applications requiring consistent precision.

Automotive vs Aerospace: Applications of JA020CP0 Bearing
JA020CP0 Bearing fits well in automotive steering systems, offering reliable radial load support. In aerospace, its lightweight design and sealed features make it ideal for instrumentation and control mechanisms.

Practical Applications of JA020CP0 Bearing
For conveyor systems in packaging lines, JA020CP0 Bearing provides smooth motion with minimal maintenance. Its inch sizing ensures compatibility with a range of North American machinery standards.
