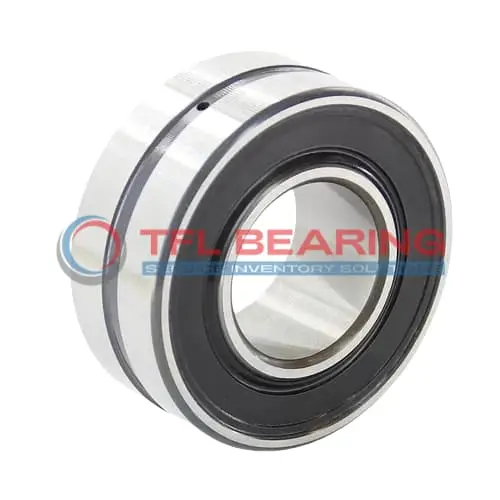

BS2-2320-2CS5/VT143 Double Row Spherical Roller Bearing

BS2-2320-2CS5/VT143 Double Row Spherical Roller Bearing

The BS2-2320-2CS5/VT143 is a double-row spherical roller bearing with a 100mm bore and 215mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 190413 lbf and runs smoothly at speeds up to 750 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a lubrication groove and holes for easy maintenance, it’s designed for long service life. Ideal for heavy machinery like crushers or conveyors where high radial loads are common.

Weighing 14kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2320-2CS5/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 215 x 82 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 82 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 126 mm
  • Shoulder/Recess Dia Of Outer Ring 189 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 190413 lbf
  • Static Radial Load 213568 lbf
  • Max Speed 750 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 14 kg

Features

Performance Features of BS2-2320-2CS5/VT143 Bearing

BS2-2320-2CS5/VT143 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 190413 lbf, ensuring robust performance in heavy-duty applications.

The double-sealed design of BS2-2320-2CS5/VT143 Bearing protects against contaminants, enhancing reliability.
With a maximum speed of 750 rpm, it maintains efficiency even under demanding conditions.

BS2-2320-2CS5/VT143 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its steel cage ensures proper roller alignment, reducing wear and extending service life.

The lubrication groove and holes in BS2-2320-2CS5/VT143 Bearing facilitate smooth operation and maintenance.
Weighing 14 kg, it balances durability and practicality for industrial use.

Application

Industrial Uses of BS2-2320-2CS5/VT143 Bearing
BS2-2320-2CS5/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction helps compensate for misalignment, ensuring smooth operation in tough conditions.

What Makes BS2-2320-2CS5/VT143 Bearing a Preferred Choice?
In mining equipment, BS2-2320-2CS5/VT143 Bearing’s robust chrome steel construction withstands extreme loads and harsh environments. The double seals protect against contaminants, extending service life even in dusty or wet settings.

Built for Heavy-Duty Use: BS2-2320-2CS5/VT143 Bearing
For conveyor systems, BS2-2320-2CS5/VT143 Bearing’s high dynamic load capacity ensures reliable performance under continuous operation. Its lubrication groove design simplifies maintenance, reducing downtime in industrial applications.

Automotive vs Aerospace: Applications of BS2-2320-2CS5/VT143 Bearing
In large vehicles like trucks and buses, BS2-2320-2CS5/VT143 Bearing supports drivetrain components, offering durability under combined loads. While not typically used in aerospace, its precision makes it suitable for heavy industrial gearboxes.

Perfect Fit for Automation: BS2-2320-2CS5/VT143 Bearing
BS2-2320-2CS5/VT143 Bearing works well in automated production lines, where its consistent performance reduces vibration and noise. The wide temperature range allows it to function reliably in varying operational conditions.
