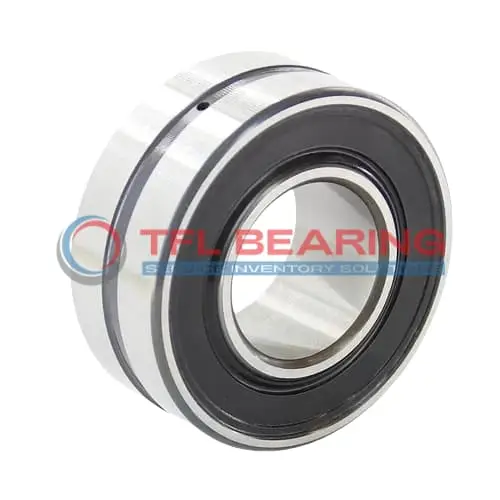

BS2-2224-2CS5K/VT143 Double Row Spherical Roller Bearing

BS2-2224-2CS5K/VT143 Double Row Spherical Roller Bearing

The BS2-2224-2CS5K/VT143 is a double-row spherical roller bearing with a 120mm bore and 215mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 146575 lbf and runs smoothly at speeds up to 1400 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The tapered bore (1:12) allows for secure mounting, and lubrication grooves make maintenance straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads and misalignment are common. It operates in temperatures from -30°C to 200°C.

Weighing 9.75kg, it’s robust for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2224-2CS5K/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 215 x 69 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 69 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 136 mm
  • Shoulder/Recess Dia Of Outer Ring 194 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 146575 lbf
  • Static Radial Load 171979 lbf
  • Max Speed 1400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 9.75 kg
  • Price （US$） US$94.21

Features

How Does BS2-2224-2CS5K/VT143 Bearing Handle Combined Loads?

BS2-2224-2CS5K/VT143 Bearing is built with double-row spherical rollers, offering excellent load distribution for combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 146575 lbf.

The double seal design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 1400 rpm, it maintains reliable performance under demanding conditions.

BS2-2224-2CS5K/VT143 Bearing’s tapered bore simplifies installation, ensuring a secure fit.
The lubrication groove and holes facilitate easy maintenance, extending its service life.

Application

Industrial Uses of BS2-2224-2CS5K/VT143 Bearing
BS2-2224-2CS5K/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads with ease. The tapered bore ensures a secure fit, reducing slippage during high-stress operations.

In automotive applications, BS2-2224-2CS5K/VT143 Bearing supports large drivetrain components, such as truck axles, thanks to its high dynamic radial load capacity. The double seals also protect against contaminants in rugged environments.

For industrial fans and blowers, BS2-2224-2CS5K/VT143 Bearing’s spherical rollers accommodate misalignment, ensuring smooth rotation even under uneven loads. Its chrome steel construction offers long-lasting performance in demanding conditions.

Where Is BS2-2224-2CS5K/VT143 Bearing Used?
BS2-2224-2CS5K/VT143 Bearing is ideal for mining equipment, where its robust design withstands extreme loads and harsh conditions. The lubrication groove simplifies maintenance, extending service intervals.

In construction machinery, BS2-2224-2CS5K/VT143 Bearing provides reliable support for cranes and excavators, handling both radial and axial forces. The steel cage enhances durability, even in high-vibration settings.

Built for Heavy-Duty Use: BS2-2224-2CS5K/VT143 Bearing
BS2-2224-2CS5K/VT143 Bearing excels in paper mills, where its temperature range suits hot, humid environments. The double seals keep out pulp and moisture, reducing downtime.

For wind turbines, BS2-2224-2CS5K/VT143 Bearing’s spherical rollers compensate for shaft deflection, ensuring consistent energy output. Its high static load rating makes it a dependable choice for renewable energy systems.
