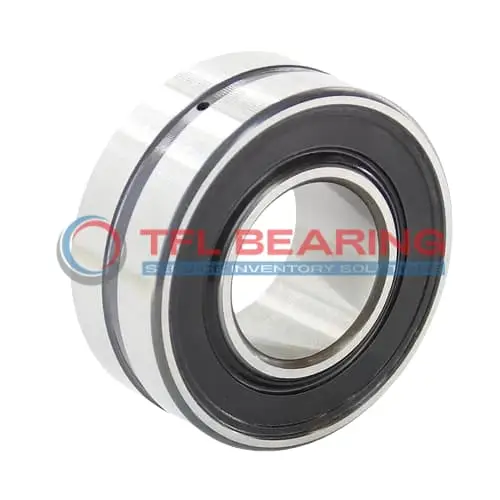

BS2-2222-2CS5K/VT143 Double Row Spherical Roller Bearing

BS2-2222-2CS5K/VT143 Double Row Spherical Roller Bearing

The BS2-2222-2CS5K/VT143 is a double-row spherical roller bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 128591 lbf and operates smoothly at speeds up to 1500 RPM.

Its double-seal design keeps contaminants out, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a tapered bore (1:12 ratio), it fits securely on shafts, and the lubrication groove simplifies maintenance. Ideal for heavy-duty applications like mining equipment or industrial gearboxes.

Weighing 7.6kg, it’s built to handle tough conditions. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2222-2CS5K/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 110 x 200 x 63 mm
  • Bore Dia 110 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 63 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 126 mm
  • Shoulder/Recess Dia Of Outer Ring 183 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 128591 lbf
  • Static Radial Load 143878 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.6 kg
  • Price （US$） US$75.90

Features

Performance Features of BS2-2222-2CS5K/VT143 Bearing

BS2-2222-2CS5K/VT143 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 128591 lbf, ensuring reliable operation in heavy-duty applications.

The double-seal design of BS2-2222-2CS5K/VT143 Bearing protects against contaminants, extending its service life.
It operates smoothly in temperatures ranging from -30° to 200°C, making it versatile for various environments.

BS2-2222-2CS5K/VT143 Bearing’s tapered bore design simplifies installation and ensures secure fitting.
With a maximum speed of 1500 rpm, it balances performance and durability for industrial use.

The lubrication groove in BS2-2222-2CS5K/VT143 Bearing ensures consistent performance with minimal maintenance.
Its spherical roller design accommodates misalignment, reducing stress on the bearing.

Application

Industrial Uses of BS2-2222-2CS5K/VT143 Bearing
BS2-2222-2CS5K/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The tapered bore ensures a secure fit, reducing slippage in high-vibration environments.

Where Is BS2-2222-2CS5K/VT143 Bearing Used?
You’ll often find BS2-2222-2CS5K/VT143 Bearing in mining equipment, where its spherical rollers accommodate misalignment and heavy radial loads. The double seals keep contaminants out, extending service life in harsh conditions.

Built for Heavy-Duty Use: BS2-2222-2CS5K/VT143 Bearing
BS2-2222-2CS5K/VT143 Bearing excels in paper mills, supporting large rollers that endure constant stress. Its chrome steel construction and lubrication grooves ensure smooth operation even at high temperatures.

Automotive vs Aerospace: Applications of BS2-2222-2CS5K/VT143 Bearing
In automotive, BS2-2222-2CS5K/VT143 Bearing suits heavy-duty axles, while in aerospace, it’s trusted for landing gear systems. The metric sizing and tapered bore make it adaptable across industries.

Essential Roles of BS2-2222-2CS5K/VT143 Bearing
BS2-2222-2CS5K/VT143 Bearing is vital in wind turbines, where its ability to handle misalignment and heavy loads ensures reliable energy generation. The steel cage adds durability, making it a long-term solution.
