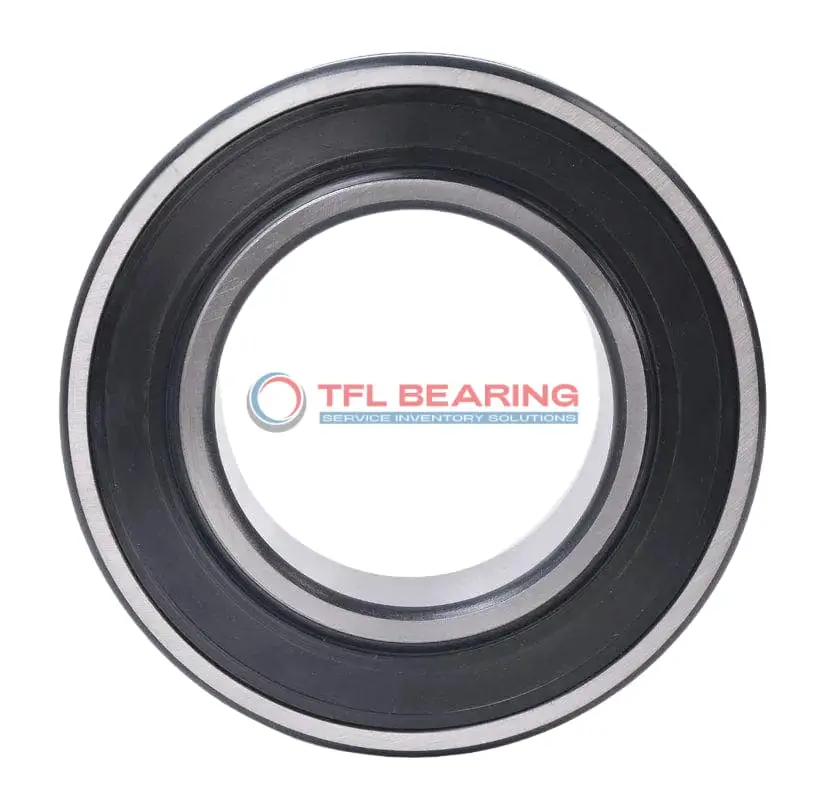

BS2-2220-2RS5/C3VT143 Double Row Spherical Roller Bearing

BS2-2220-2RS5/C3VT143 Double Row Spherical Roller Bearing

The BS2-2220-2RS5/C3VT143 is a double-row spherical roller bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 97342 lbf and runs smoothly at speeds up to 1600 RPM.
Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and operates in temperatures from -30°C to 200°C.
With a C3 radial clearance, it accommodates thermal expansion, making it reliable under varying conditions. The lubrication groove and holes simplify maintenance.
This model is interchangeable with SKF bearings, ideal for heavy machinery or industrial equipment where robust performance is needed. Weighing 5.5kg, it’s built for demanding applications while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2220-2RS5/C3VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 180 x 55 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 114 mm
  • Shoulder/Recess Dia Of Outer Ring 163 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 97342 lbf
  • Static Radial Load 110156 lbf
  • Max Speed 1600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 5.5 kg
  • Price （US$） US$138.93

Features

Performance Features of BS2-2220-2RS5/C3VT143 Bearing

BS2-2220-2RS5/C3VT143 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 97342 lbf, making it suitable for heavy-duty applications.

The double seal design protects BS2-2220-2RS5/C3VT143 Bearing from dust and moisture, enhancing its durability.
With a maximum speed of 1600 rpm, it maintains reliable performance under demanding conditions.

BS2-2220-2RS5/C3VT143 Bearing’s C3 radial clearance ensures smooth operation even with thermal expansion.
The steel cage keeps the rollers aligned, reducing wear and extending service life.

Designed for temperatures from -30° to 200°C, BS2-2220-2RS5/C3VT143 Bearing performs well in varied environments.
Its lubrication groove and holes facilitate easy maintenance, ensuring consistent performance.

Application

Industrial Uses of BS2-2220-2RS5/C3VT143 Bearing
BS2-2220-2RS5/C3VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction helps compensate for misalignment, ensuring smooth operation in tough conditions.

What Makes BS2-2220-2RS5/C3VT143 Bearing a Preferred Choice?
In mining equipment, BS2-2220-2RS5/C3VT143 Bearing’s robust chrome steel construction withstands extreme loads and harsh environments. The double seals also protect against contaminants, extending its service life.

Built for Heavy-Duty Use: BS2-2220-2RS5/C3VT143 Bearing
For conveyor systems, BS2-2220-2RS5/C3VT143 Bearing’s C3 radial clearance accommodates thermal expansion during continuous operation. Its steel cage adds durability, making it reliable for long shifts.

Automotive vs Aerospace: Applications of BS2-2220-2RS5/C3VT143 Bearing
In truck wheel hubs, BS2-2220-2RS5/C3VT143 Bearing supports combined loads, while its temperature range suits varied climates. The metric sizing ensures easy integration with global vehicle designs.

Perfect Fit for Automation: BS2-2220-2RS5/C3VT143 Bearing
BS2-2220-2RS5/C3VT143 Bearing works well in robotic arms, where its double seals keep lubrication in and debris out. The spherical rollers allow slight misalignment during dynamic movements.
