BS2-2215-2CS2/C4GEM9 Double Row Spherical Roller Bearing

Brand: TFL Bearing Interchangeable: SKF BS2-2215-2CS2/C4GEM9 75 x 130 x 38 mm Metric Double Seal
Part number: BS2-2215-2CS2/C4GEM9
In Stock
US$51.95 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.018mm to 0
Width38 mm
Width Tolerance-0.06mm to 0
Shoulder Dia Of Inner Ring84.5 mm
Shoulder/Recess Dia Of Outer Ring120 mm
Width Of Lubrication Groove6 mm
Diameter Of Lubrication Hole3 mm
Chamfer Dimensionmin.1.5 mm
Performance
Dynamic Radial Load48,784 lbf
Static Radial Load53,954 lbf
Max Speed2,200 rpm
Temperature Range-30° to 200 °C
Characteristics
System of MeasurementMetric
Radial run-outStandard
Bearing TypeRoller
Roller Bearing TypeSpherical
Bore TypeCylindrical
For Load DirectionCombined
ConstructionDouble Row
Seal TypeDouble Seal
LubricationRequired
Radial ClearanceC4
Weight2.1 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHsCompliant
REACHCompliant

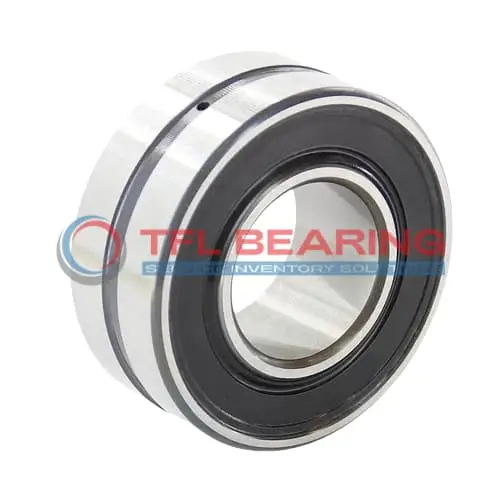

Product photo
BS2-2215-2CS2/C4GEM9 Double Row Spherical Roller Bearing

Description

The BS2-2215-2CS2/C4GEM9 is a double-row spherical roller bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 48784 lbf and runs smoothly at speeds up to 2200 RPM.

Its double-seal design keeps contaminants out while the steel cage enhances durability. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s well-suited for heavy machinery or industrial equipment where robust performance is needed.

Weighing 2.1kg, it’s built to handle demanding applications. Compliant with RoHS and REACH standards, it ensures safe and efficient use.

Features

Performance Features of BS2-2215-2CS2/C4GEM9 Bearing

BS2-2215-2CS2/C4GEM9 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 48784 lbf, ensuring reliable operation in heavy-duty applications.

The double seal design of BS2-2215-2CS2/C4GEM9 Bearing protects against contaminants, enhancing durability.
With a maximum speed of 2200 rpm, it delivers consistent performance under demanding conditions.

BS2-2215-2CS2/C4GEM9 Bearing’s C4 radial clearance allows for thermal expansion in high-temperature environments.
Its steel cage maintains roller alignment, reducing friction and extending service life.

The lubrication groove and holes in BS2-2215-2CS2/C4GEM9 Bearing ensure smooth operation with minimal maintenance.
It operates efficiently within a wide temperature range of -30° to 200 °C.

Application

Industrial Uses of BS2-2215-2CS2/C4GEM9 Bearing
BS2-2215-2CS2/C4GEM9 Bearing is commonly used in heavy machinery like mining equipment and conveyor systems, where its double-row design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding industrial environments.

Where Is BS2-2215-2CS2/C4GEM9 Bearing Used?
You’ll often find BS2-2215-2CS2/C4GEM9 Bearing in automotive applications such as truck wheel hubs, where its high radial load capacity is essential. The double seals also help keep contaminants out, extending its lifespan.

Perfect Fit for Automation: BS2-2215-2CS2/C4GEM9 Bearing
BS2-2215-2CS2/C4GEM9 Bearing works well in robotic arms and automated production lines, thanks to its smooth operation and high-speed capability. The C4 radial clearance ensures reliable performance under varying thermal conditions.

Light-Duty vs Heavy-Duty: Best Uses for BS2-2215-2CS2/C4GEM9 Bearing
While BS2-2215-2CS2/C4GEM9 Bearing excels in heavy-duty settings like construction equipment, it’s also suitable for lighter industrial fans. Its versatility makes it a go-to choice for many engineers.
