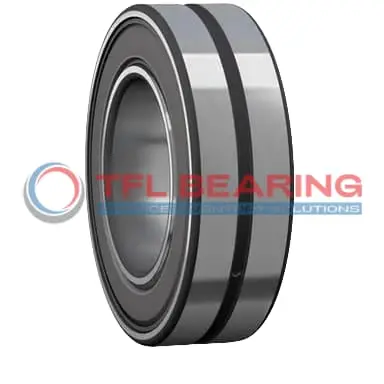

BS2-2212-2RS5/C4GEM9 Double Row Spherical Roller Bearing

BS2-2212-2RS5/C4GEM9 Double Row Spherical Roller Bearing

The BS2-2212-2RS5/C4GEM9 is a double-row spherical roller bearing with a 60mm bore and 110mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 35745 lbf and runs smoothly at speeds up to 2700 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates well in temperatures from -30°C to 200°C and requires regular lubrication for optimal performance.

With a C4 radial clearance, it accommodates slight misalignments, making it versatile for heavy-duty applications. This model is interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for industrial machinery like conveyors or gearboxes where high radial loads and misalignment are common. Weighing 1.3kg, it balances strength and practicality for demanding environments. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2212-2RS5/C4GEM9
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 110 x 34 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 34 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 69.7 mm
  • Shoulder/Recess Dia Of Outer Ring 101 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 2700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.3 kg
  • Price （US$） 53.63

Features

Performance Features of BS2-2212-2RS5/C4GEM9 Bearing

BS2-2212-2RS5/C4GEM9 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 35745 lbf, ensuring stability in heavy-duty applications.

The double seal design protects BS2-2212-2RS5/C4GEM9 Bearing from dust and moisture, enhancing its durability.
With a maximum speed of 2700 rpm, it delivers reliable performance across various conditions.

BS2-2212-2RS5/C4GEM9 Bearing features a C4 radial clearance, accommodating thermal expansion in high-temperature environments.
The steel cage maintains roller alignment, reducing friction and extending operational life.

Designed for temperatures from -30° to 200°C, BS2-2212-2RS5/C4GEM9 Bearing performs well in extreme conditions.
Its lubrication groove and holes ensure consistent lubrication, minimising maintenance needs.

Application

Industrial Uses of BS2-2212-2RS5/C4GEM9 Bearing
BS2-2212-2RS5/C4GEM9 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles combined loads efficiently. The double seals help keep contaminants out, extending the bearing’s life in dusty environments.

In automotive applications, BS2-2212-2RS5/C4GEM9 Bearing works well in gearboxes and drivetrains, offering reliable performance under high radial loads. Its C4 radial clearance ensures smooth operation even with thermal expansion.

For automation equipment, BS2-2212-2RS5/C4GEM9 Bearing provides stability in robotic arms and assembly lines. The chrome steel construction and steel cage make it durable for continuous use.

In wind turbines, BS2-2212-2RS5/C4GEM9 Bearing supports rotor shafts, handling both radial and axial loads. The wide temperature range makes it suitable for outdoor applications in varying climates.

BS2-2212-2RS5/C4GEM9 Bearing is also found in industrial fans, where its spherical roller design compensates for misalignment. The lubrication groove ensures consistent performance even at high speeds.
