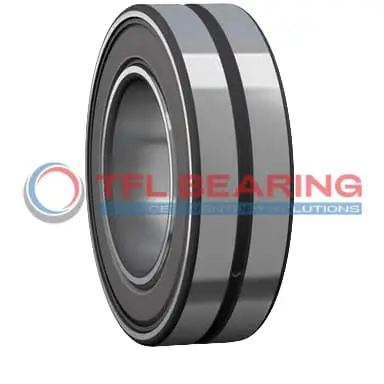

BS2-2212-2RS5/C3GEM9 Double Row Spherical Roller Bearing

BS2-2212-2RS5/C3GEM9 Double Row Spherical Roller Bearing

The BS2-2212-2RS5/C3GEM9 is a double-row spherical roller bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 35745 lbf and operates smoothly at speeds up to 2700 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and performs well in temperatures from -30°C to 200°C.

With a C3 radial clearance, it accommodates slight misalignments, making it versatile for heavy-duty applications. Ideal for industrial machinery like conveyors or gearboxes where reliability is key.

Weighing 1.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2212-2RS5/C3GEM9
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 110 x 34 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 34 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 69.7 mm
  • Shoulder/Recess Dia Of Outer Ring 101 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 2700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.3 kg
  • Price （US$） 53.63

Features

Performance Features of BS2-2212-2RS5/C3GEM9 Bearing

BS2-2212-2RS5/C3GEM9 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 35745 lbf, ensuring robust performance in tough conditions.

The double seal design protects BS2-2212-2RS5/C3GEM9 Bearing from dust and moisture, enhancing its durability.
With a maximum speed of 2700 rpm, it delivers reliable operation in high-speed applications.

BS2-2212-2RS5/C3GEM9 Bearing features a C3 radial clearance, accommodating thermal expansion during use.
Its spherical roller design allows for slight misalignments, reducing stress on the bearing.

The steel cage in BS2-2212-2RS5/C3GEM9 Bearing maintains roller alignment, minimising wear and extending life.
Lubrication grooves ensure smooth operation, even under heavy loads.

BS2-2212-2RS5/C3GEM9 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its double row construction provides stability, making it ideal for industrial machinery.

Application

Industrial Uses of BS2-2212-2RS5/C3GEM9 Bearing
BS2-2212-2RS5/C3GEM9 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

What Makes BS2-2212-2RS5/C3GEM9 Bearing a Preferred Choice?
In automotive applications, BS2-2212-2RS5/C3GEM9 Bearing supports drivetrain components, offering reliable performance under combined loads. Its double seals protect against contaminants, making it ideal for off-road vehicles and harsh environments.

Built for Heavy-Duty Use: BS2-2212-2RS5/C3GEM9 Bearing
For conveyor systems, BS2-2212-2RS5/C3GEM9 Bearing’s high dynamic load capacity ensures long service life even in continuous operation. The C3 radial clearance allows for thermal expansion, preventing premature wear.

Medical vs Industrial: Where BS2-2212-2RS5/C3GEM9 Bearing Excels
In industrial pumps, BS2-2212-2RS5/C3GEM9 Bearing’s chrome steel construction resists wear, while its temperature range suits both hot and cold processes. The lubrication groove design simplifies maintenance, reducing downtime.

Perfect Fit for Automation: BS2-2212-2RS5/C3GEM9 Bearing
BS2-2212-2RS5/C3GEM9 Bearing works well in robotic arms, where its precision and load-handling capabilities support repetitive movements. The steel cage adds durability, making it a cost-effective choice for automated systems.
