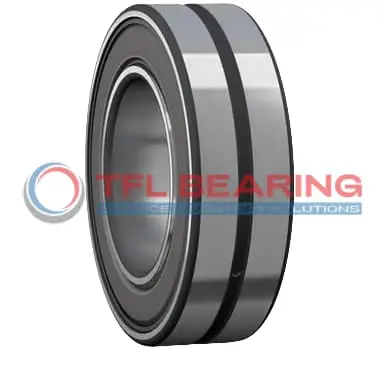

BS2-2208-2RS5/C4GEM9 Double Row Spherical Roller Bearing

BS2-2208-2RS5/C4GEM9 Double Row Spherical Roller Bearing

The BS2-2208-2RS5/C4GEM9 is a double-row spherical roller bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22144 lbf and runs smoothly at speeds up to 4000 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates well in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a C4 radial clearance, it offers flexibility for thermal expansion. Ideal for heavy machinery or industrial equipment where reliability under load is crucial.

Weighing 0.57kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2208-2RS5/C4GEM9
  • Brand TFL
  • Interchangeable SKF
  • Size 40 x 80 x 28 mm
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 28 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 47.2 mm
  • Shoulder/Recess Dia Of Outer Ring 72.8 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22144 lbf
  • Static Radial Load 20233 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.57 kg
  • Price （US$） 40.31

Features

Performance Features of BS2-2208-2RS5/C4GEM9 Bearing

BS2-2208-2RS5/C4GEM9 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22144 lbf, ensuring reliable performance in demanding conditions.

The double seal design of BS2-2208-2RS5/C4GEM9 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 4000 rpm, it maintains efficiency while handling heavy radial loads.

BS2-2208-2RS5/C4GEM9 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The C4 radial clearance ensures smooth operation, reducing friction and wear.

The steel cage in BS2-2208-2RS5/C4GEM9 Bearing keeps rollers aligned, extending service life.
Its lubrication groove and holes facilitate easy maintenance, lowering operational costs.

Application

Industrial Uses of BS2-2208-2RS5/C4GEM9 Bearing
BS2-2208-2RS5/C4GEM9 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles combined loads effectively. The double seals help keep contaminants out, extending the bearing’s lifespan in harsh environments.

What Makes BS2-2208-2RS5/C4GEM9 Bearing a Preferred Choice?
In automotive applications, BS2-2208-2RS5/C4GEM9 Bearing works well in gearboxes and axles, thanks to its high dynamic radial load capacity. The C4 radial clearance ensures smooth performance even under varying temperatures.

Built for Heavy-Duty Use: BS2-2208-2RS5/C4GEM9 Bearing
For automation equipment, BS2-2208-2RS5/C4GEM9 Bearing provides reliable support in robotic arms and assembly lines. Its chrome steel construction and lubrication groove make it suitable for continuous operation.

Medical vs Industrial: Where BS2-2208-2RS5/C4GEM9 Bearing Excels
In medical devices, BS2-2208-2RS5/C4GEM9 Bearing offers precision in imaging equipment, while its industrial strength shines in pumps and compressors. The steel cage ensures durability across both sectors.

Where Is BS2-2208-2RS5/C4GEM9 Bearing Used?
You’ll find BS2-2208-2RS5/C4GEM9 Bearing in household appliances like washing machines, where its double-sealed design resists moisture and dust. The metric sizing fits seamlessly into European and Asian models.
