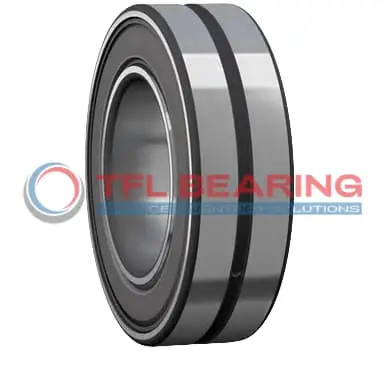

BS2-2208-2RS/GEM9 Double Row Spherical Roller Bearing

BS2-2208-2RS/GEM9 Double Row Spherical Roller Bearing

The BS2-2208-2RS/GEM9 is a double-row spherical roller bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22144 lbf and operates smoothly at speeds up to 4000 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing includes lubrication grooves and holes for easy maintenance, suitable for temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or conveyor systems where robust performance is needed.

Weighing 0.57kg, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2208-2RS/GEM9
  • Brand TFL
  • Interchangeable SKF
  • Size 40 x 80 x 28 mm
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 28 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 47.2 mm
  • Shoulder/Recess Dia Of Outer Ring 72.8 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22144 lbf
  • Static Radial Load 20233 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.57 kg
  • Price （US$） 39.52

Features

Performance Features of BS2-2208-2RS/GEM9 Bearing

BS2-2208-2RS/GEM9 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22144 lbf, ensuring reliable performance in heavy-duty applications.

The double seal design of BS2-2208-2RS/GEM9 Bearing protects against dust and moisture, enhancing durability.
This makes it suitable for use in harsh environments where contamination is a concern.

BS2-2208-2RS/GEM9 Bearing operates smoothly at speeds up to 4000 rpm, balancing efficiency and longevity.
The steel cage maintains roller alignment, reducing friction and wear over time.

With a temperature range of -30° to 200 °C, BS2-2208-2RS/GEM9 Bearing performs well in varied conditions.
Its spherical roller design accommodates misalignment, ensuring consistent operation.

BS2-2208-2RS/GEM9 Bearing requires regular lubrication to maintain optimal performance.
The built-in lubrication groove and holes simplify maintenance, reducing downtime.

Application

Industrial Uses of BS2-2208-2RS/GEM9 Bearing
BS2-2208-2RS/GEM9 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles combined loads with ease. The spherical rollers ensure smooth operation even with slight misalignments, reducing wear over time.

What Makes BS2-2208-2RS/GEM9 Bearing a Preferred Choice?
In automotive applications, BS2-2208-2RS/GEM9 Bearing supports components like axles and transmissions, thanks to its high dynamic radial load capacity. The double seals keep contaminants out, extending the bearing’s lifespan in harsh conditions.

Built for Heavy-Duty Use: BS2-2208-2RS/GEM9 Bearing
For automation equipment, BS2-2208-2RS/GEM9 Bearing provides reliable performance in robotic arms and assembly lines. Its chrome steel construction and lubrication grooves ensure consistent operation at high speeds.

Medical vs Industrial: Where BS2-2208-2RS/GEM9 Bearing Excels
While BS2-2208-2RS/GEM9 Bearing is robust enough for industrial presses, its precision also suits medical imaging devices. The temperature range up to 200°C makes it versatile for various environments.
