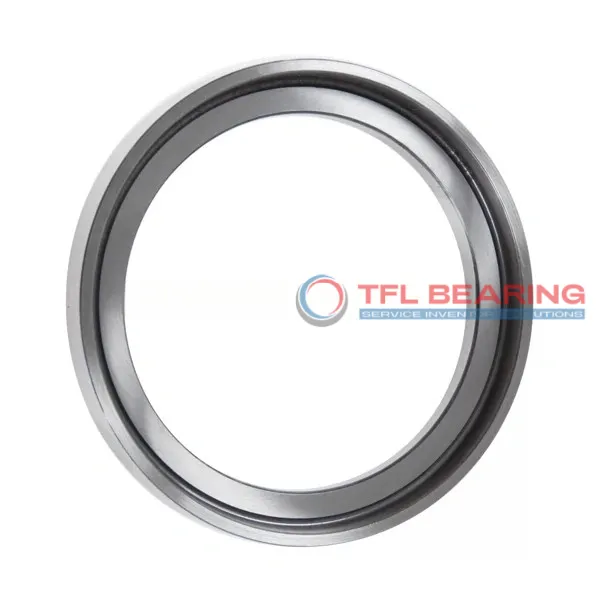

Angle Rings For Cylindrical Roller Bearings HJ 424

Angle Rings For Cylindrical Roller Bearings HJ 424

The HJ 424 angle ring is designed for cylindrical roller bearings, with a 120mm bore and 187.6mm outer diameter. Made from sturdy chrome steel, it fits snugly with a width of 30.5mm and a contacting side face of 17mm.
Its precise tolerances ensure a secure fit, while the 5mm chamfer length aids easy installation. The ring operates reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for industrial machinery where cylindrical roller bearings are used, providing stability and support.
Weighing 2.58kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 424
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 187.6 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 17 mm
  • Width 30.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.58 kg
Angle Rings For Cylindrical Roller Bearings HJ 424 dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 424 Angle Rings
HJ 424 Angle Rings are crafted from chrome steel, offering durability and resistance to wear in cylindrical roller bearings.
The precise bore diameter of 120 mm ensures a snug fit, while the outer diameter of 187.6 mm provides stability.
With a width of 30.5 mm, HJ 424 Angle Rings maintain proper alignment under heavy loads.
The temperature range of -30° to 110 °C allows reliable performance in various operating conditions.
HJ 424 Angle Rings are designed for easy installation, reducing downtime during maintenance.
Their compliance with RoHS and REACH standards ensures environmental and safety adherence.

Application

Essential Roles of HJ 424 Bearing
HJ 424 Bearing is commonly used in industrial machinery, especially in heavy-duty applications like large conveyor systems and presses. Its robust chrome steel construction ensures it can handle significant radial loads with ease.
In automotive manufacturing, HJ 424 Bearing plays a key role in supporting components such as gearboxes and drivetrains. The precise metric dimensions make it a reliable choice for maintaining alignment under high stress.
For automation equipment, HJ 424 Bearing’s durability and stability are ideal for robotic arms and assembly lines. The wide temperature range allows it to perform consistently in various operating conditions.
In wind turbines, HJ 424 Bearing helps manage the axial and radial loads generated by rotor movements. Its design ensures long service life even in harsh environmental conditions.
