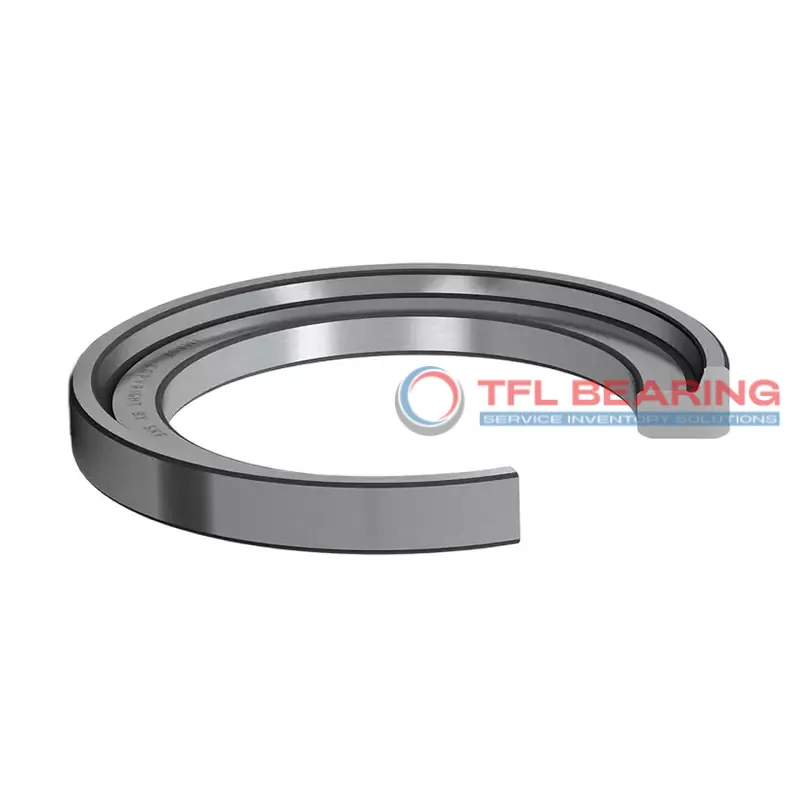

Angle Rings For Cylindrical Roller Bearings HJ 416

Angle Rings For Cylindrical Roller Bearings HJ 416

The HJ 416 angle ring is designed for cylindrical roller bearings, with an 80mm bore and 122mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.
Its 13mm width on the inner ring side ensures a secure fit, while the 22mm overall width provides stability. The chamfered edges (3mm) make installation easier and reduce wear.
This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s ideal for heavy-duty machinery where precise alignment is crucial.
Weighing 0.8kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a safe choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 416
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 122 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width Contacting Inner Ring Side Face 13 mm
  • Width 22 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 kg

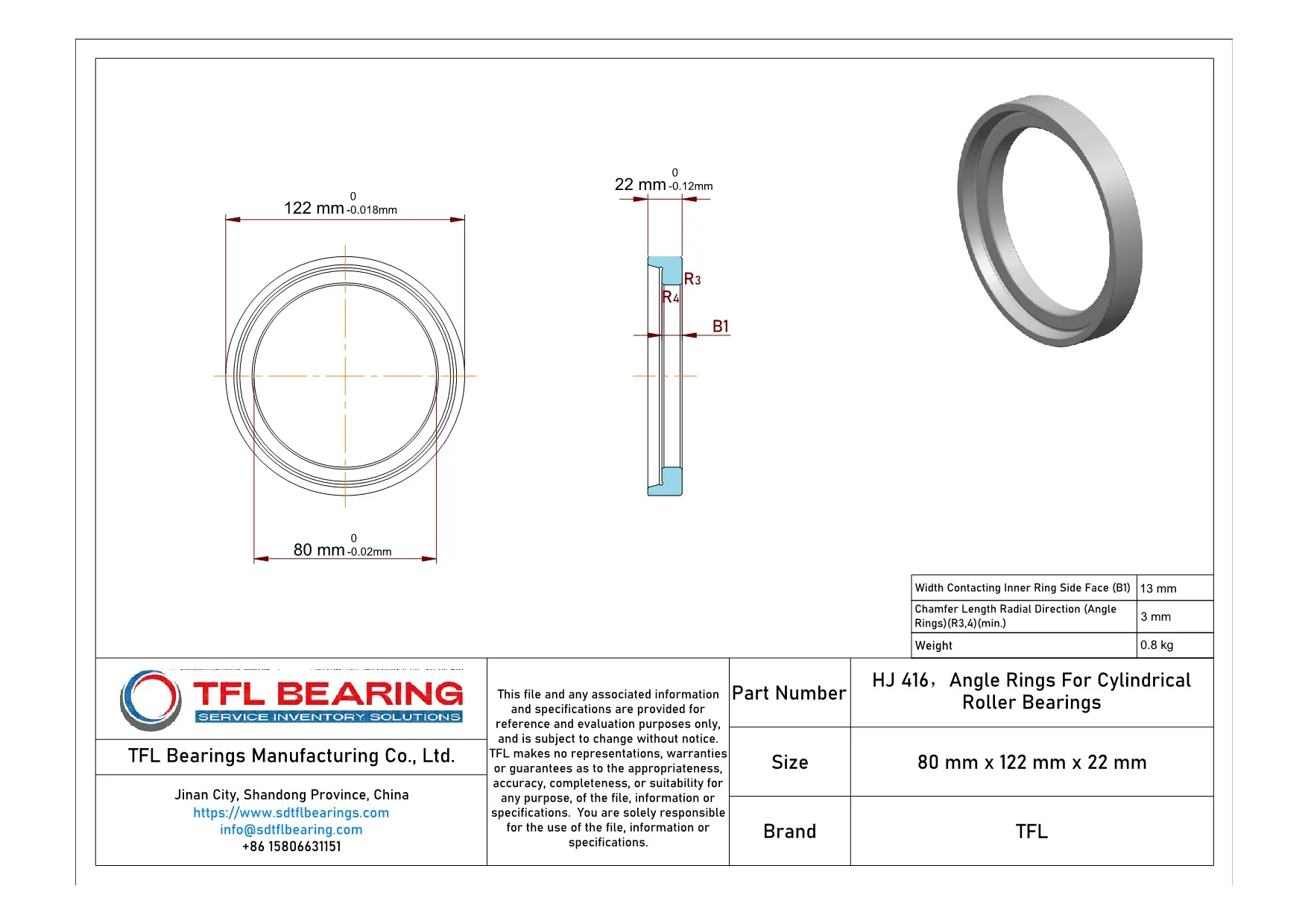

Angle Rings For Cylindrical Roller Bearings HJ 416 dimension drawing
Download DWG Download PDF

Features

Why Choose HJ 416 Angle Rings for Precision Tasks?
HJ 416 Angle Rings are crafted from chrome steel, offering durability and resistance to wear in demanding applications.
Their precise dimensions, with a bore diameter of 80 mm and outer diameter of 122 mm, ensure a perfect fit for cylindrical roller bearings.
The temperature range of -30° to 110 °C allows HJ 416 Angle Rings to perform reliably in various environments.
With RoHS and REACH compliance, they meet stringent environmental and safety standards.

Application

Industrial Uses of HJ 416 Angle Rings
HJ 416 Angle Rings are commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where their robust design handles high radial loads. The precise metric dimensions ensure a perfect fit with cylindrical roller bearings, reducing wear over time.
Where Is HJ 416 Angle Rings Used?
In automotive applications, HJ 416 Angle Rings provide stability in transmission systems, particularly in trucks and buses. Their chrome steel construction offers durability, even under constant stress and varying temperatures.
Built for Heavy-Duty Use: HJ 416 Angle Rings
These angle rings excel in construction equipment, supporting cranes and excavators with reliable performance. The tight tolerances and chamfered edges prevent misalignment, ensuring smooth operation in demanding environments.
Medical vs Industrial: Where HJ 416 Angle Rings Excels
While HJ 416 Angle Rings are not typically used in medical devices, they shine in industrial settings like printing presses and rolling mills. Their strength and precision make them ideal for high-load, high-speed applications.
Automation and Robotics: HJ 416 Angle Rings in Action
HJ 416 Angle Rings play a key role in automated production lines, particularly in robotic arms and assembly systems. Their consistent performance helps maintain accuracy and efficiency in repetitive tasks.
