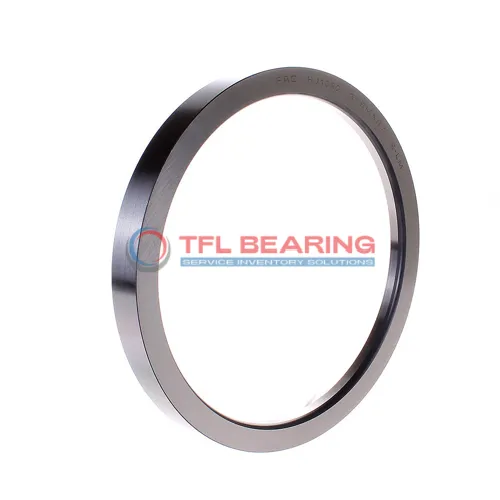

Angle Rings For Cylindrical Roller Bearings HJ 330 EC

Angle Rings For Cylindrical Roller Bearings HJ 330 EC

The HJ 330 EC angle ring is designed for cylindrical roller bearings, with a 150mm bore and 209.8mm outer diameter, crafted from sturdy chrome steel. Its precise tolerances ensure a snug fit, while the 15mm width on the inner ring side provides stability.
The ring handles temperatures from -30°C to 110°C, making it suitable for various industrial environments. Its chamfered edges (4mm) help with easy installation and reduce stress during operation.
Weighing 2.3kg, it’s robust yet manageable for maintenance tasks. Compliant with RoHS and REACH standards, it’s a reliable choice for machinery requiring cylindrical roller bearings, such as gearboxes or heavy-duty equipment.
Interchangeable with SKF models, it offers flexibility for replacements or upgrades. Ideal for engineers and maintenance teams looking for durable, precision components.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 330 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 209.8 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 15 mm
  • Width 25 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.3 kg
Angle Rings For Cylindrical Roller Bearings HJ 330 EC dimension drawing
Download DWG Download PDF

Features

Why Choose HJ 330 EC Bearing for Precision Tasks?
HJ 330 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise bore and outer diameter tolerances ensure a perfect fit, enhancing operational stability.
The design includes a 15 mm width contacting the inner ring side face, providing secure placement.
With a temperature range of -30° to 110°C, HJ 330 EC Bearing performs reliably in various environments.
Weighing just 2.3 kg, it balances strength and ease of handling for industrial applications.

Application

Industrial Uses of HJ 330 EC Bearing
HJ 330 EC Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its robust design handles high radial loads with ease. The chrome steel material ensures long-lasting performance even in demanding conditions.
In automotive applications, HJ 330 EC Bearing fits well in gearboxes and drivetrains, providing reliable support for smooth power transmission. Its precise tolerances make it a dependable choice for maintaining alignment in vehicle components.
For automation equipment, HJ 330 EC Bearing’s cylindrical roller design offers stability in robotic arms and assembly lines. The metric dimensions ensure compatibility with a variety of industrial systems across different regions.
Medical imaging devices benefit from HJ 330 EC Bearing’s consistent performance, where precision and durability are essential. The chrome steel construction resists wear, making it suitable for high-use medical environments.
