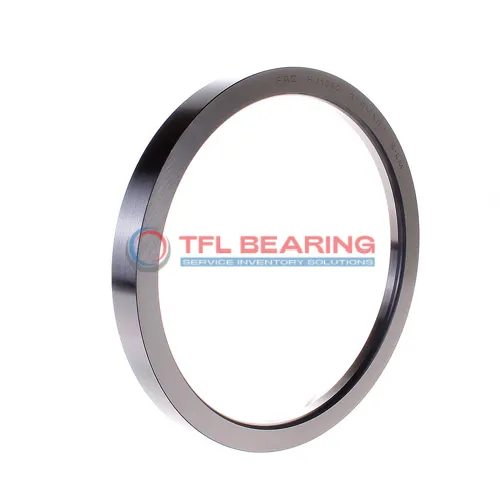

Angle Rings For Cylindrical Roller Bearings HJ 328 EC

Angle Rings For Cylindrical Roller Bearings HJ 328 EC

The HJ 328 EC angle ring is designed for cylindrical roller bearings, with a 140mm bore and 195.6mm outer diameter. Made from sturdy chrome steel, it suits temperatures from -30°C to 110°C.
Its 15mm width on the inner ring side ensures a secure fit, while the 25mm overall width provides stability. The 4mm chamfer length allows for smoother installation.
This angle ring is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty machinery where precise alignment is needed.
Weighing 2.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 328 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 195.6 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 15 mm
  • Width 25 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.05 kg
Angle Rings For Cylindrical Roller Bearings HJ 328 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 328 EC Bearing Engineered for Reliability?
HJ 328 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise dimensions, with a bore diameter of 140 mm and outer diameter of 195.6 mm, ensure a secure fit for cylindrical roller bearings.
The chamfer length of 4 mm in the radial direction enhances installation ease and reduces stress concentrations.
With a temperature range of -30° to 110 °C, HJ 328 EC Bearing performs reliably in varied environments.
The 15 mm width contacting the inner ring side face provides stability, while the 25 mm overall width balances strength and space efficiency.
Compliant with RoHS and REACH standards, it meets stringent environmental and safety requirements.

Application

Industrial Uses of HJ 328 EC Bearing
HJ 328 EC Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its robust design handles significant radial loads. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, HJ 328 EC Bearing fits well in gearboxes and drivetrains, providing reliable performance under high stress. Its precise tolerances make it a suitable choice for maintaining alignment in critical components.
For automation systems, HJ 328 EC Bearing supports robotic arms and assembly line equipment, where smooth rotation is essential. The metric sizing ensures compatibility with a variety of industrial machinery across different regions.
Medical imaging devices also benefit from HJ 328 EC Bearing’s stability, particularly in rotating components that require consistent precision. The material choice helps reduce wear over time, extending the lifespan of sensitive equipment.
