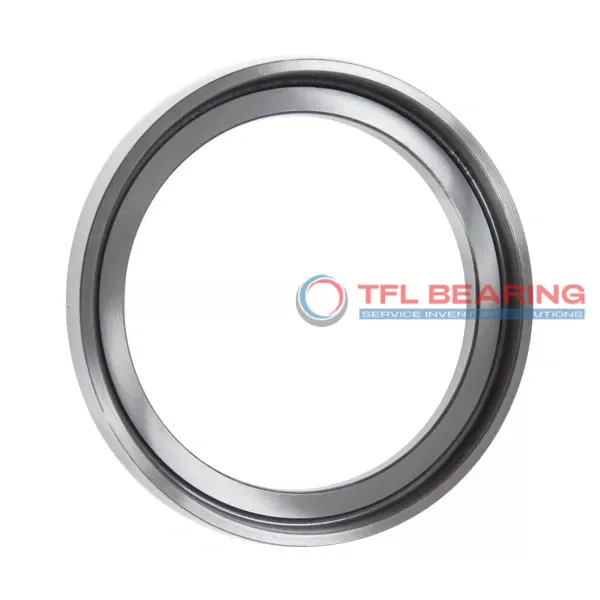

Angle Rings For Cylindrical Roller Bearings HJ 322 EC

Angle Rings For Cylindrical Roller Bearings HJ 322 EC

The HJ 322 EC angle ring is designed for cylindrical roller bearings, with a 110mm bore and 155.75mm outer diameter. Made from sturdy chrome steel, it fits precisely with a bore tolerance of -0.02mm to 0.
Its 14mm width on the inner ring side ensures a secure fit, while the 22mm overall width provides stability. The chamfered edges (3mm) make installation smoother and reduce stress during operation.
This angle ring works well in temperatures ranging from -30°C to 110°C, suitable for various industrial environments. It’s interchangeable with SKF models, offering flexibility for replacements.
Weighing 1.21kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for machinery requiring precise bearing alignment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 322 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 155.75 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width Contacting Inner Ring Side Face 14 mm
  • Width 22 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.21 kg
Angle Rings For Cylindrical Roller Bearings HJ 322 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 322 EC Bearing Engineered for Reliability?
HJ 322 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise bore diameter of 110 mm ensures a secure fit, while the outer diameter of 155.75 mm provides stability.
The width of 22 mm and chamfer length of 3 mm enhance load distribution, reducing stress on the bearing.
With a temperature range of -30° to 110 °C, it performs reliably in various environments.
HJ 322 EC Bearing’s design minimises maintenance needs, making it a cost-effective choice for industrial applications.
Its compliance with RoHS and REACH standards ensures environmental and safety considerations are met.

Application

Industrial Uses of HJ 322 EC Bearing
HJ 322 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its robust design handles radial loads effectively. The chrome steel construction ensures durability in demanding environments.
In automotive applications, HJ 322 EC Bearing fits well in truck transmissions and axle systems, providing reliable performance under high stress. Its precise tolerances make it a dependable choice for long-term use.
For automation equipment, HJ 322 EC Bearing supports smooth operation in robotic arms and assembly lines. The metric dimensions ensure compatibility with various European and Asian machinery standards.
