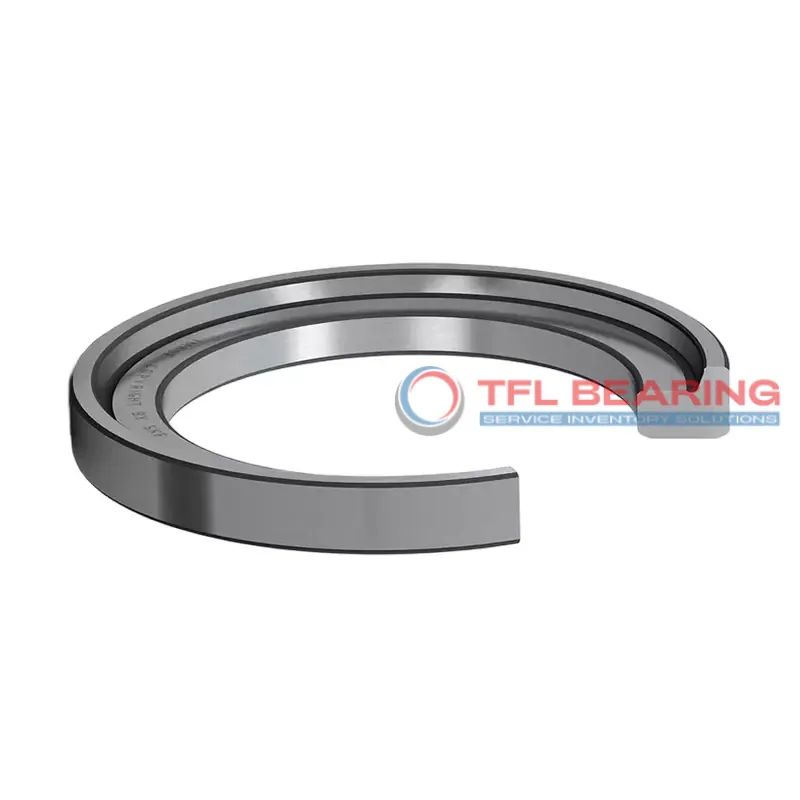

Angle Rings For Cylindrical Roller Bearings HJ 313 EC

Angle Rings For Cylindrical Roller Bearings HJ 313 EC

The HJ 313 EC angle ring is designed for cylindrical roller bearings, with a 65mm bore and 90.55mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.
Its 15.5mm width and precise tolerances ensure a secure fit, while the 10mm contact width provides stability. The chamfered edges (min. 2.1mm) make installation easier.
This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s ideal for industrial machinery where precise alignment is needed.
Weighing 0.27kg, it’s a durable yet lightweight component. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 313 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 90.55 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width Contacting Inner Ring Side Face 10 mm
  • Width 15.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.27 kg
Angle Rings For Cylindrical Roller Bearings HJ 313 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 313 EC Bearing Engineered for Reliability?
HJ 313 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise dimensions, with a bore diameter of 65 mm and outer diameter of 90.55 mm, ensure a perfect fit for cylindrical roller bearings.
The temperature range of -30° to 110 °C allows HJ 313 EC Bearing to perform reliably in various environments.
With a weight of just 0.27 kg, it combines strength with ease of handling.

Application

Industrial Uses of HJ 313 EC Bearing
HJ 313 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, HJ 313 EC Bearing fits well in transmission systems and axle assemblies, providing reliable performance under high stress. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, HJ 313 EC Bearing supports robotic arms and precision machinery, thanks to its stable load-bearing capacity. The tight tolerances ensure smooth operation in repetitive tasks.
Medical imaging devices also benefit from HJ 313 EC Bearing’s consistent performance, where precision and reliability are key. The chrome steel material resists wear, making it suitable for long-term use.
