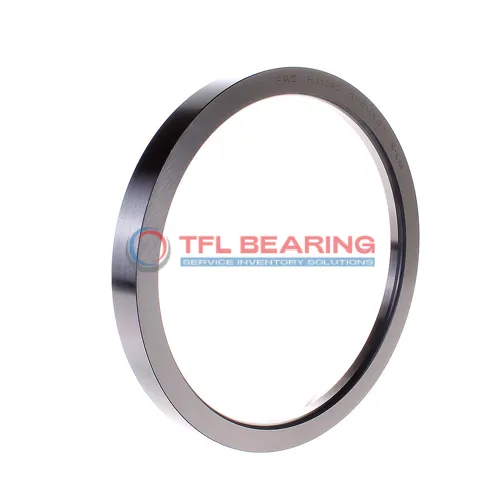

Angle Rings For Cylindrical Roller Bearings HJ 236 EC

Angle Rings For Cylindrical Roller Bearings HJ 236 EC

The HJ 236 EC angle ring is designed for cylindrical roller bearings, with a 180mm bore and 230.45mm outer diameter. Made from robust chrome steel, it fits snugly within specified tolerances for precise alignment.
Its 12mm width on the inner ring side ensures secure contact, while the 20mm overall width provides stability. The 4mm chamfer length allows for easier installation and reduces stress during operation.
This angle ring operates reliably in temperatures from -30°C to 110°C, making it suitable for various industrial environments. It’s interchangeable with SKF models, offering a convenient replacement option.
Weighing 1.7kg, it’s sturdy yet manageable for maintenance tasks. Compliant with RoHS and REACH standards, it’s a safe choice for demanding applications like heavy machinery or conveyor systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 236 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 230.45 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 12 mm
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.7 kg
Angle Rings For Cylindrical Roller Bearings HJ 236 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 236 EC Bearing Engineered for Reliability?
HJ 236 EC Bearing is crafted from chrome steel, offering excellent durability and resistance to wear.
Its precise bore and outer diameter tolerances ensure a perfect fit, enhancing operational stability.
The design includes a 12 mm width contacting the inner ring side face, providing secure placement.
With a temperature range of -30° to 110 °C, it performs reliably in various environmental conditions.
HJ 236 EC Bearing’s chamfer length in the radial direction minimises stress concentration.
This feature, combined with its robust construction, ensures long-term performance in demanding applications.

Application

Industrial Uses of HJ 236 EC Bearing
HJ 236 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its robust design handles high radial loads effortlessly. The chrome steel material ensures long-lasting performance even in demanding environments.
In automotive applications, HJ 236 EC Bearing fits well in truck transmissions and axle systems, providing reliable support under continuous operation. Its precise metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, HJ 236 EC Bearing’s cylindrical roller design offers smooth motion in robotic arms and assembly lines. The wide temperature range allows it to perform consistently in different working conditions.
Medical imaging devices also benefit from HJ 236 EC Bearing’s stability, ensuring accurate positioning in scanners and diagnostic machines. The compliant RoHS and REACH standards make it suitable for sensitive environments.
