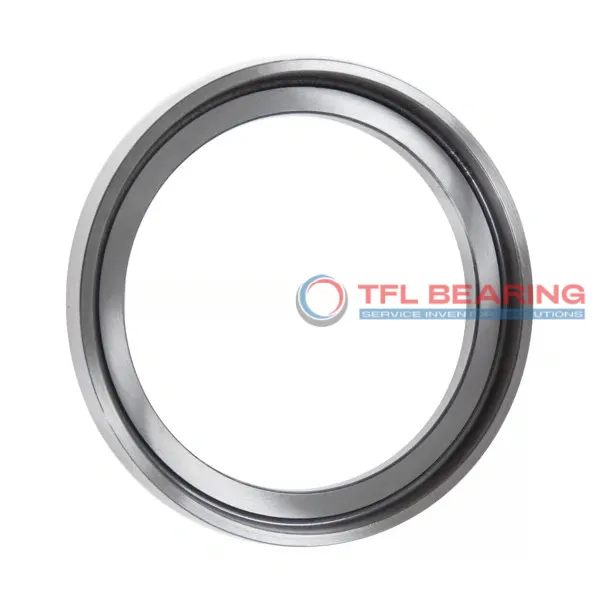

Angle Rings For Cylindrical Roller Bearings HJ 2322 EC

Angle Rings For Cylindrical Roller Bearings HJ 2322 EC

The HJ 2322 EC angle ring is designed for cylindrical roller bearings, with a 110mm bore and 155.75mm outer diameter. Made from sturdy chrome steel, it’s built to last in demanding conditions.
Its 14mm width on the inner ring side ensures a secure fit, while the 26.5mm overall width provides stability. The ring operates smoothly in temperatures ranging from -30°C to 110°C.
With a 3mm chamfer for easy installation, this angle ring is interchangeable with SKF models. It’s a reliable choice for industrial machinery where precise alignment is crucial.
Weighing 1.25kg, it’s robust yet manageable for maintenance tasks. Compliant with RoHS and REACH standards, it’s safe for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2322 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 155.75 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width Contacting Inner Ring Side Face 14 mm
  • Width 26.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.25 kg
Angle Rings For Cylindrical Roller Bearings HJ 2322 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 2322 EC Bearing Engineered for Reliability?
HJ 2322 EC Bearing features chrome steel construction, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances provide a secure fit, enhancing operational stability.
The chamfer length of 3 mm in the radial direction reduces stress concentration, prolonging service life.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.
HJ 2322 EC Bearing’s design simplifies installation, saving time and effort during setup.
Its robust material composition makes it suitable for heavy-duty applications requiring consistent performance.

Application

Industrial Uses of HJ 2322 EC Bearing
HJ 2322 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel material ensures durability in demanding environments.
In automotive applications, HJ 2322 EC Bearing fits well in truck transmissions and axle systems, providing reliable performance under continuous stress. Its precise metric dimensions make it easy to integrate into various vehicle designs.
For automation equipment, HJ 2322 EC Bearing supports robotic arms and assembly lines, offering smooth rotation and long service life. The wide temperature range allows it to perform consistently in different working conditions.
What Makes HJ 2322 EC Bearing a Preferred Choice?
HJ 2322 EC Bearing is ideal for construction equipment, like cranes and excavators, where its robust build withstands heavy loads and harsh conditions. The interchangeable design with SKF models adds to its versatility.
In wind turbines, HJ 2322 EC Bearing plays a key role in the main shaft assembly, ensuring reliable operation under variable wind loads. Its high load capacity and durability make it a trusted component in renewable energy systems.
