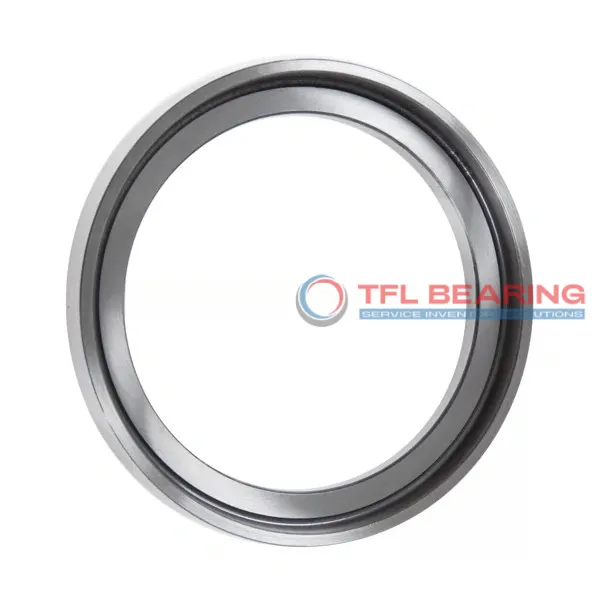

Angle Rings For Cylindrical Roller Bearings HJ 2320 EC

Angle Rings For Cylindrical Roller Bearings HJ 2320 EC

The HJ 2320 EC angle ring is designed for cylindrical roller bearings, with a 100mm bore and 139.5mm outer diameter. Made from sturdy chrome steel, it operates reliably in temperatures from -30°C to 110°C.
Its 13mm width on the inner ring side ensures a secure fit, while the 23.5mm overall width provides stability. The 3mm chamfer length allows for easier installation and alignment.
This angle ring is interchangeable with SKF models, offering a practical replacement option. It’s suitable for heavy-duty machinery where precise alignment and load distribution are needed.
Weighing 0.91kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2320 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 139.5 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width Contacting Inner Ring Side Face 13 mm
  • Width 23.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.91 kg
Angle Rings For Cylindrical Roller Bearings HJ 2320 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 2320 EC Bearing
HJ 2320 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its precise bore and outer diameter tolerances ensure a perfect fit, enhancing operational stability.
The design includes a 13 mm width contacting the inner ring side face, providing secure placement and alignment.
With a temperature range of -30° to 110 °C, HJ 2320 EC Bearing performs reliably in diverse environments.
The chamfer length in the radial direction minimises stress concentration, prolonging the bearing’s service life.
Weighing just 0.91 kg, it combines strength with ease of handling.

Application

Industrial Uses of HJ 2320 EC Bearing
HJ 2320 EC Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
What Makes HJ 2320 EC Bearing a Preferred Choice?
In automotive applications, HJ 2320 EC Bearing fits well in gearboxes and drivetrains, providing reliable performance under constant stress. Its precise metric dimensions make it easy to integrate into various vehicle designs.
Built for Heavy-Duty Use: HJ 2320 EC Bearing
For automation systems, HJ 2320 EC Bearing supports robotic arms and assembly lines, where its stability and load capacity are essential. The wide temperature range also makes it suitable for diverse operating conditions.
Medical vs Industrial: Where HJ 2320 EC Bearing Excels
While HJ 2320 EC Bearing isn’t typically used in medical devices, it shines in industrial settings like power generation equipment. Its robust design and compliance with RoHS standards ensure long-term reliability.
