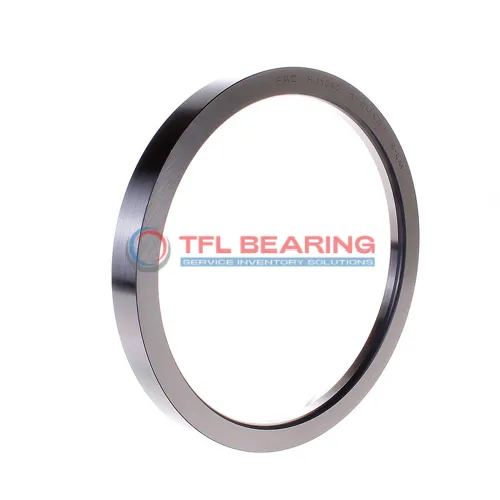

Angle Rings For Cylindrical Roller Bearings HJ 232 EC

Angle Rings For Cylindrical Roller Bearings HJ 232 EC

The HJ 232 EC angle ring is designed for cylindrical roller bearings, with a 160mm bore and 207mm outer diameter. Made from sturdy chrome steel, it fits snugly with tight tolerances for precise alignment.
Its 12mm contact width and 20mm overall width provide stable support, while the 3mm chamfer ensures easy installation. The ring operates reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a cost-effective alternative for maintenance. Ideal for heavy-duty machinery where cylindrical roller bearings need secure angle rings.
Weighing 1.48kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 232 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 207 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 12 mm
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.48 kg
Angle Rings For Cylindrical Roller Bearings HJ 232 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 232 EC Bearing Engineered for Reliability?
HJ 232 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise bore diameter of 160 mm ensures a secure fit, while the outer diameter of 207 mm provides stability.
The design includes a 12 mm width contacting the inner ring side face, enhancing load distribution.
With a temperature range of -30° to 110 °C, it performs reliably in varied environments.

Application

Industrial Uses of HJ 232 EC Bearing
HJ 232 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
Where Is HJ 232 EC Bearing Used?
You’ll often find HJ 232 EC Bearing in automotive applications like truck wheel hubs, where its precise tolerances and robust build provide reliable performance. Its metric sizing makes it a versatile choice for various vehicle designs.
Built for Heavy-Duty Use: HJ 232 EC Bearing
HJ 232 EC Bearing excels in construction equipment, such as cranes and excavators, thanks to its ability to withstand intense loads and harsh conditions. The wide temperature range also makes it suitable for outdoor use in varying climates.
Automotive vs Industrial: Applications of HJ 232 EC Bearing
In automotive settings, HJ 232 EC Bearing supports components like differential systems, while in industrial plants, it’s ideal for pumps and compressors. Its interchangeable design with SKF bearings adds to its practicality.
Perfect Fit for Automation: HJ 232 EC Bearing
HJ 232 EC Bearing is a reliable choice for automated production lines, where its consistent performance reduces downtime. The stainless steel material ensures longevity even in high-speed operations.
