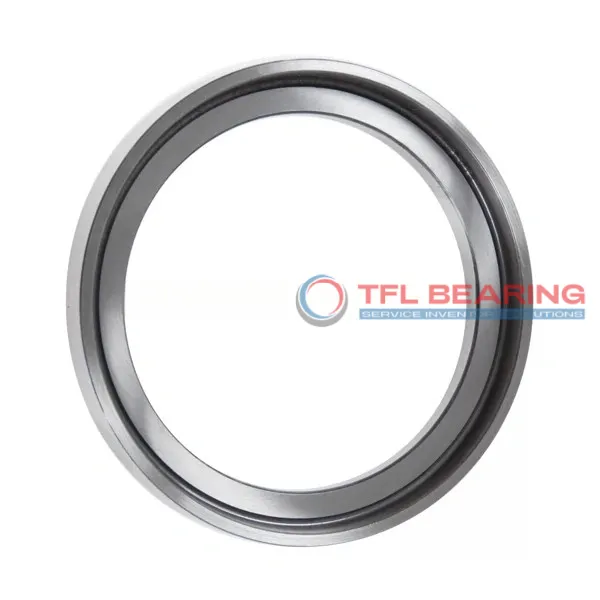

Angle Rings For Cylindrical Roller Bearings HJ 224 EC

Angle Rings For Cylindrical Roller Bearings HJ 224 EC

The HJ 224 EC angle ring is designed for cylindrical roller bearings, with a 120mm bore and 153.45mm outer diameter. Made from sturdy chrome steel, it operates in temperatures from -30°C to 110°C.
Its 11mm width on the inner ring side ensures a secure fit, while the 17mm overall width provides stability. The chamfered edges (2.1mm) make installation smoother.
This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s suitable for heavy-duty machinery where precise alignment is needed.
Weighing 0.71kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 224 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 153.45 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width Contacting Inner Ring Side Face 11 mm
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.71 kg

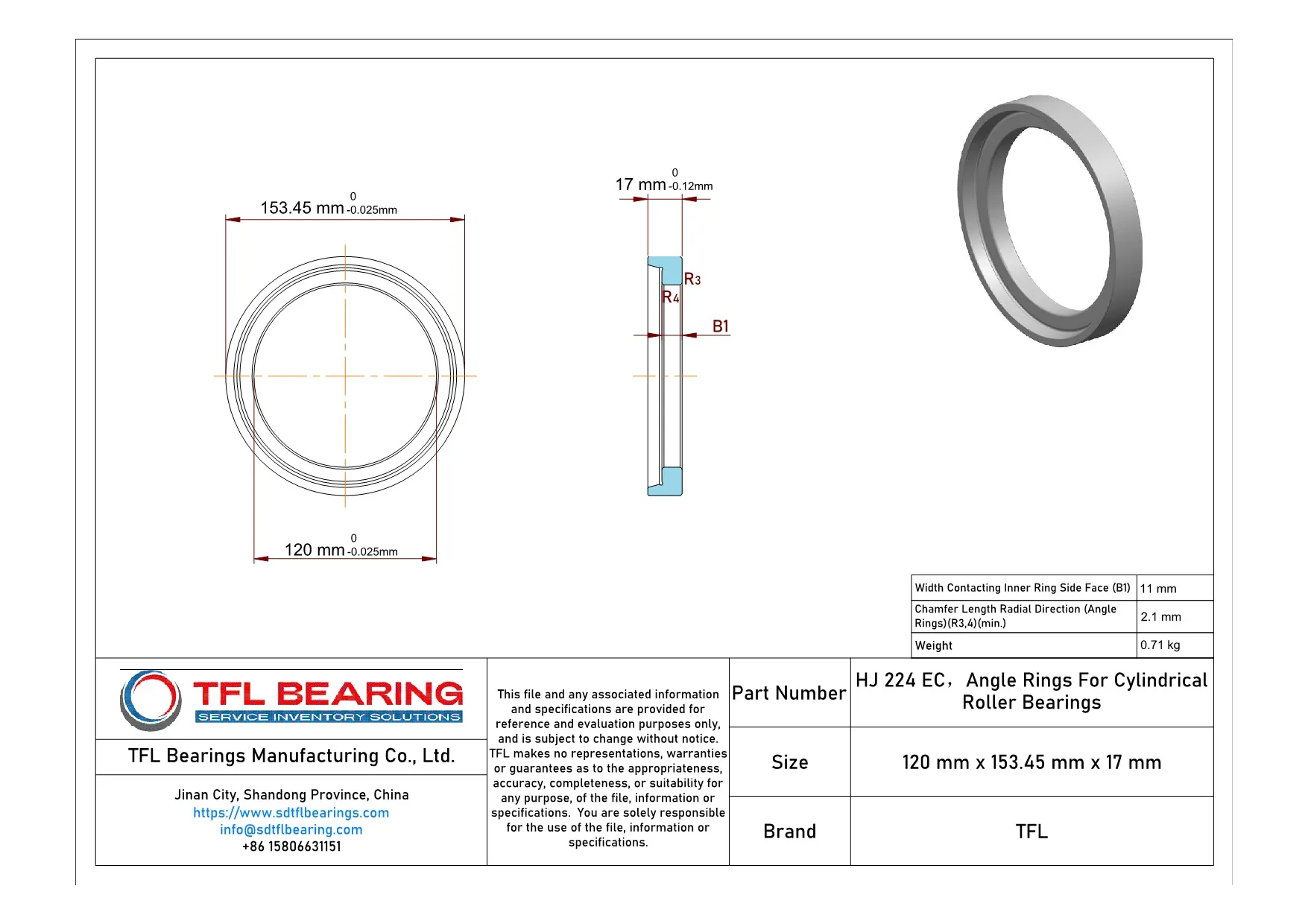

Angle Rings For Cylindrical Roller Bearings HJ 224 EC dimension drawing
Download DWG Download PDF

Features

Why Choose HJ 224 EC Bearing for Precision Tasks?
HJ 224 EC Bearing features chrome steel construction, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances (-0.025mm to 0) enable accurate alignment in cylindrical roller bearing applications.
The angle rings provide stable contact with the inner ring side face, enhancing load distribution.
With a temperature range of -30° to 110°C, HJ 224 EC Bearing performs reliably in varied conditions.
Its design simplifies installation while maintaining high performance standards.
The compliant RoHS and REACH status ensures environmental and safety standards are met.

Application

Industrial Uses of HJ 224 EC Bearing
HJ 224 EC Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its cylindrical roller design handles high radial loads effectively. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, HJ 224 EC Bearing fits well in gearboxes and drivetrains, providing reliable performance under constant stress. Its precise metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, HJ 224 EC Bearing’s stable operation supports robotic arms and assembly lines, ensuring smooth movement. The wide temperature range allows it to perform consistently in different working conditions.
Where Is HJ 224 EC Bearing Used?
You’ll often find HJ 224 EC Bearing in wind turbines, where its robust design handles the variable loads and harsh weather conditions. The material choice ensures long-term reliability with minimal maintenance.
In construction machinery, HJ 224 EC Bearing is ideal for cranes and excavators, thanks to its ability to manage heavy loads. The precise tolerances help maintain performance even under intense operational stress.
