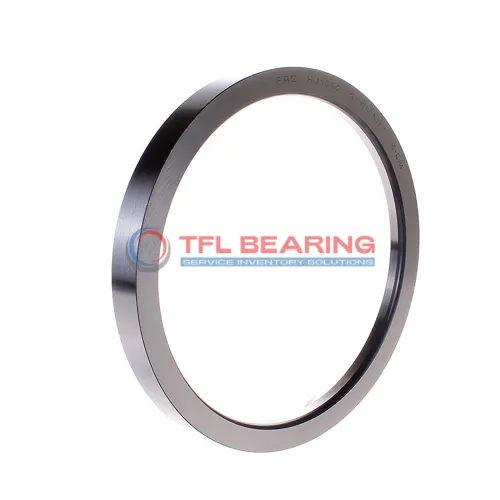

Angle Rings For Cylindrical Roller Bearings HJ 2232 EC

Angle Rings For Cylindrical Roller Bearings HJ 2232 EC

The HJ 2232 EC angle ring is designed for cylindrical roller bearings, with a 160mm bore and 205.85mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles moderate temperatures from -30°C to 110°C.

Its 12mm width on the inner ring side ensures a secure fit, while the 24.5mm overall width provides stability. The chamfered edges (3mm) make installation smoother and reduce stress during operation.

This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s ideal for industrial machinery where precise alignment of cylindrical roller bearings is needed.

Weighing 1.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2232 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 205.85 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 12 mm
  • Width 24.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.55 kg

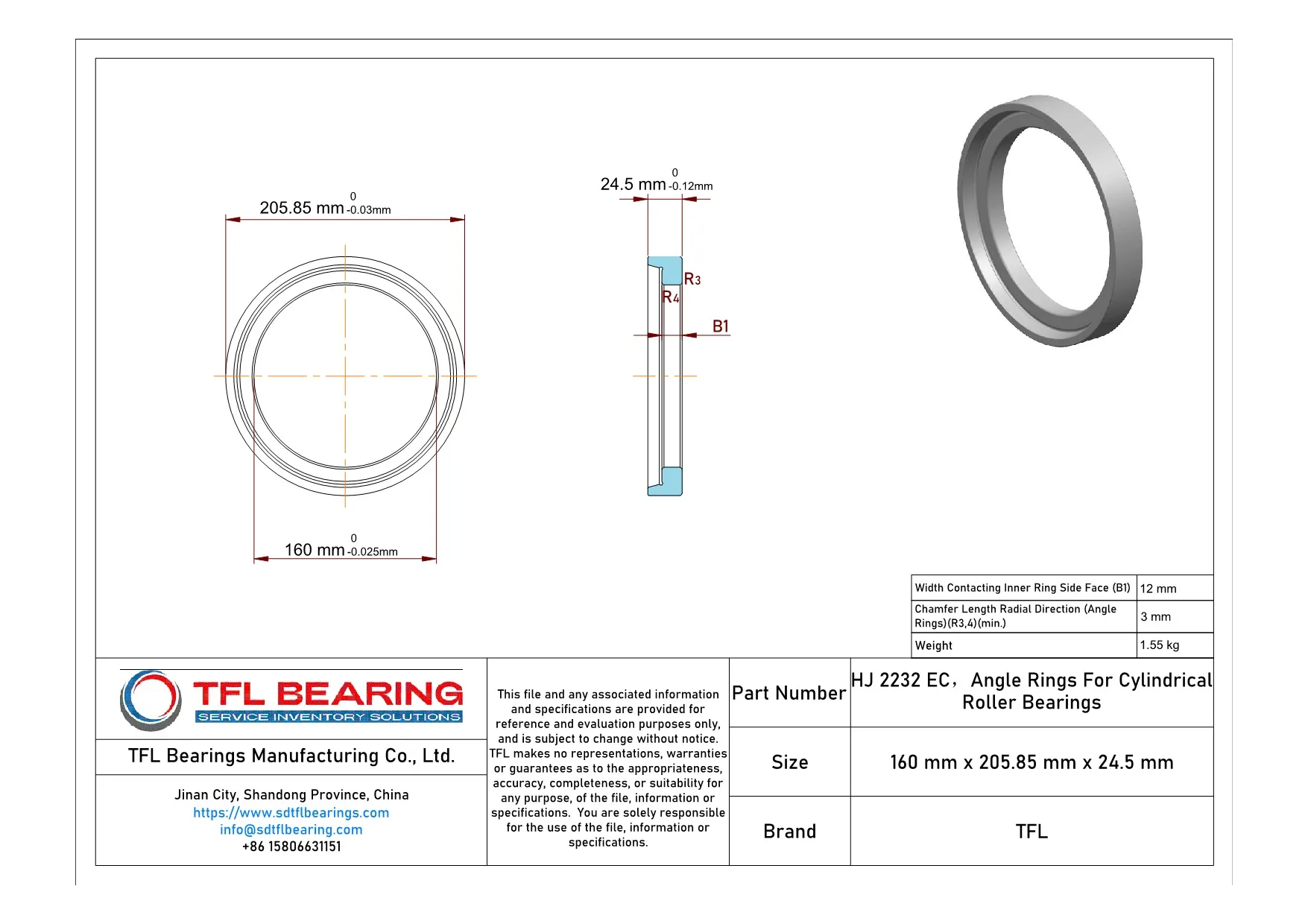

Angle Rings For Cylindrical Roller Bearings HJ 2232 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 2232 EC Bearing Engineered for Reliability?
HJ 2232 EC Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances guarantee a perfect fit for cylindrical roller bearings.
The design includes a 12 mm width contacting inner ring side face, enhancing stability under load.
With a temperature range of -30° to 110 °C, HJ 2232 EC Bearing performs reliably in various conditions.
The chamfer length in the radial direction minimises stress concentrations, prolonging service life.
Weighing just 1.55 kg, it offers a balance of strength and ease of handling.

Application

Industrial Uses of HJ 2232 EC Bearing
HJ 2232 EC Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial presses, where its robust design handles high radial loads with ease. The chrome steel material ensures long-lasting performance even in demanding conditions.
In automotive applications, HJ 2232 EC Bearing fits well in gearboxes and drivetrains, providing reliable support for smooth power transmission. Its precise metric dimensions make it a versatile choice for various vehicle models.
For automation systems, HJ 2232 EC Bearing is ideal for robotic arms and assembly lines, offering stability and durability. The wide temperature range allows it to perform consistently in different environments.
Medical equipment like imaging devices also benefit from HJ 2232 EC Bearing’s precision and reliability. The chrome steel construction ensures minimal wear, crucial for maintaining accuracy in sensitive applications.
In consumer electronics, HJ 2232 EC Bearing can be found in high-performance printers and industrial fans. Its balanced design reduces vibration, ensuring quiet and efficient operation.
